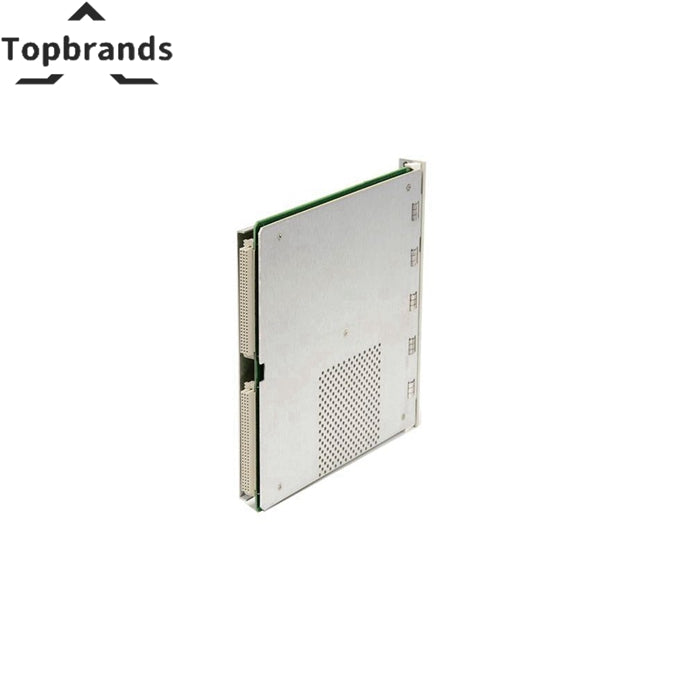

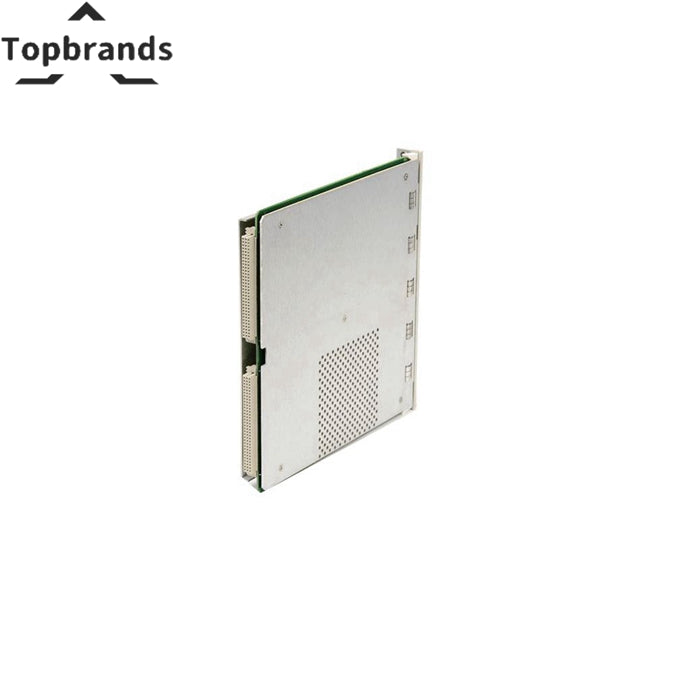

Bently Nevada 125744-02 3500/20 Standard Rack Interface Module
The Bently Nevada 125744-02 is a precision standard rack interface module for the Bently Nevada 3500 Series machinery protection platform. Product Type: Rack Interface Module | Made in: U.S.A | Power Consumption: 4.75 watts (typical). Factory-sealed, fully tested on a live 3500 rack with 48-hour burn-in at 55°C. 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| Manufacturer | Bently Nevada |
|---|---|
| Product No. | 125744-02 |
| Product Type | Rack Interface Module |
| Made in | U.S.A |
| Power Consumption | 4.75 watts (typical) |
| Cable Length | Up to 2.1 meters (7 feet) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Baud Rate | 38.4 k baud (maximum) |
| Model / SKU | 125744-02 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 System Integration
The Bently Nevada 125744-02 connects the 3500 rack to plant condition monitoring and historian infrastructure, streaming real-time vibration and temperature data to System 1, OSIsoft PI, or DCS via Modbus TCP.
Network Options
- Copper (146031-01): 10/100Base-TX, max 100m.
- Fiber (146031-02): 100Base-FX, max 2km — ideal for long runs or high-EMI areas.
Configuration
Static IP mandatory — DHCP expiry causes data gaps. Configure NTP for accurate timestamps. Allow TCP 3500 + TCP 502 through OT firewall.
🔧 Technical Specifications
Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Product No. | 125744-02 |
| Product Type | Rack Interface Module |
| Made in | U.S.A |
| Power Consumption | 4.75 watts (typical) |
| Cable Length | Up to 2.1 meters (7 feet) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Baud Rate | 38.4 k baud (maximum) |
Installation
- Install in assigned rack slot per configuration drawing.
- Copper: CAT5e UTP 100m max. Fiber: 62.5/125μm multimode SC 2km max.
- Assign static IP. Configure NTP. Document settings.
- Verify STATUS LED green and data flowing before returning to service.
📦 Shipping & Warranty
24-hour handling. Anti-static packaging. DHL/FedEx/UPS. 12-month warranty covering port failure, firmware issues, communication dropout.
❓ FAQ
Q: Copper or fiber?
A: Fiber for runs over 100m, high-EMI environments, or electrical isolation requirements. Copper for standard control room under 100m.
Q: Does replacement require reconfiguration?
A: Yes — IP settings are stored on the module. Document your settings before removing the old module.
💰 ROI
The TDI module enables predictive maintenance. One avoided bearing failure on a 50 MW turbine saves $250K-500K. Without it, your 3500 rack is just a trip system.
