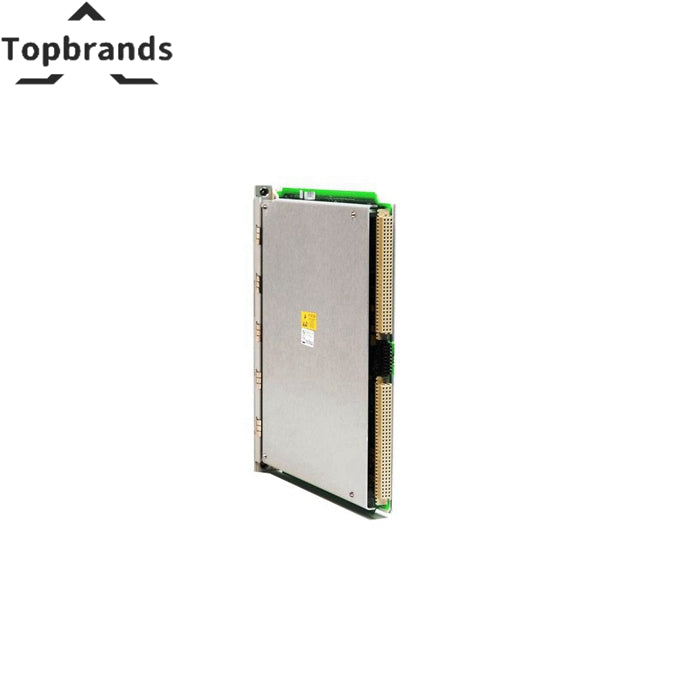

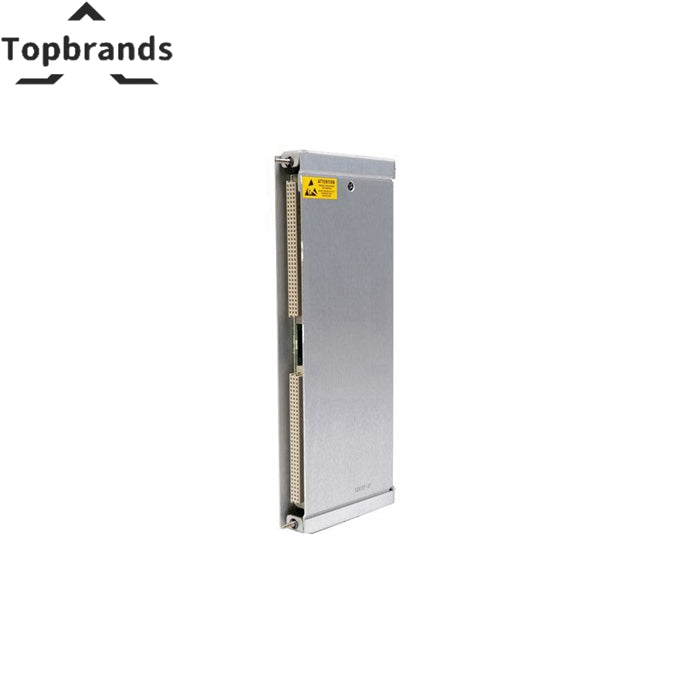

Bently Nevada 135031-01 3500/20 RIM I/O Module with Modem Interface
The Bently Nevada 135031-01 is a precision rim i/o module for the Bently Nevada 3500 Series machinery protection platform. Manufacturer: Bently Nevada | Product Type: Rack Interface Module | Operating Temperature: -30°C to +65°C. Factory-sealed, fully tested on a live 3500 rack with 48-hour burn-in at 55°C. 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| 135031-01 | is a Rack Interface I/O Module developed by Bently Nevada. It serves as a central hub for connecting various devices, sensors, actuators, and other equipment within a rack. This module ensures smooth and synchronized operation by managing input and output signals. It facilitates the transmission of data, control signals, and power between different modules and components. The 135031-01 is designed to handle both analog and digital signals, offering flexibility and compatibility with a wide range of devices. |
|---|---|
| Part Number | 135031-01 |
| Manufacturer | Bently Nevada |
| Product Type | Rack Interface Module |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (HxWxD) | 241.3 mm x 24.4 mm x 99.1 mm |
| Weight | 0.45 kg |
| Availability | In Stock |
| Function | Rack Interface I/O Module |
| Country of Manufacture | United States (USA) |
| Model / SKU | 135031-01 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 System Integration
The Bently Nevada 135031-01 connects the 3500 rack to plant condition monitoring and historian infrastructure, streaming real-time vibration and temperature data to System 1, OSIsoft PI, or DCS via Modbus TCP.
Network Options
- Copper (146031-01): 10/100Base-TX, max 100m.
- Fiber (146031-02): 100Base-FX, max 2km — ideal for long runs or high-EMI areas.
Configuration
Static IP mandatory — DHCP expiry causes data gaps. Configure NTP for accurate timestamps. Allow TCP 3500 + TCP 502 through OT firewall.
🔧 Technical Specifications
Specifications
| Parameter | Value |
|---|---|
| 135031-01 | is a Rack Interface I/O Module developed by Bently Nevada. It serves as a central hub for connecting various devices, sensors, actuators, and other equipment within a rack. This module ensures smooth and synchronized operation by managing input and output signals. It facilitates the transmission of data, control signals, and power between different modules and components. The 135031-01 is designed to handle both analog and digital signals, offering flexibility and compatibility with a wide range of devices. |
| Part Number | 135031-01 |
| Manufacturer | Bently Nevada |
| Product Type | Rack Interface Module |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (HxWxD) | 241.3 mm x 24.4 mm x 99.1 mm |
| Weight | 0.45 kg |
Installation
- Install in assigned rack slot per configuration drawing.
- Copper: CAT5e UTP 100m max. Fiber: 62.5/125μm multimode SC 2km max.
- Assign static IP. Configure NTP. Document settings.
- Verify STATUS LED green and data flowing before returning to service.
📦 Shipping & Warranty
24-hour handling. Anti-static packaging. DHL/FedEx/UPS. 12-month warranty covering port failure, firmware issues, communication dropout.
❓ FAQ
Q: Copper or fiber?
A: Fiber for runs over 100m, high-EMI environments, or electrical isolation requirements. Copper for standard control room under 100m.
Q: Does replacement require reconfiguration?
A: Yes — IP settings are stored on the module. Document your settings before removing the old module.
💰 ROI
The TDI module enables predictive maintenance. One avoided bearing failure on a 50 MW turbine saves $250K-500K. Without it, your 3500 rack is just a trip system.
