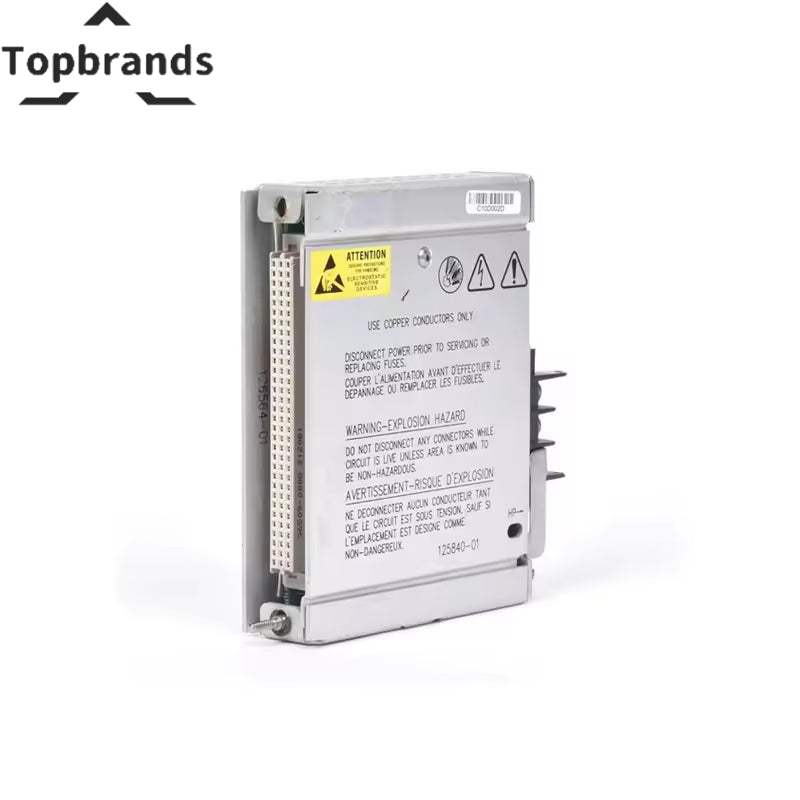

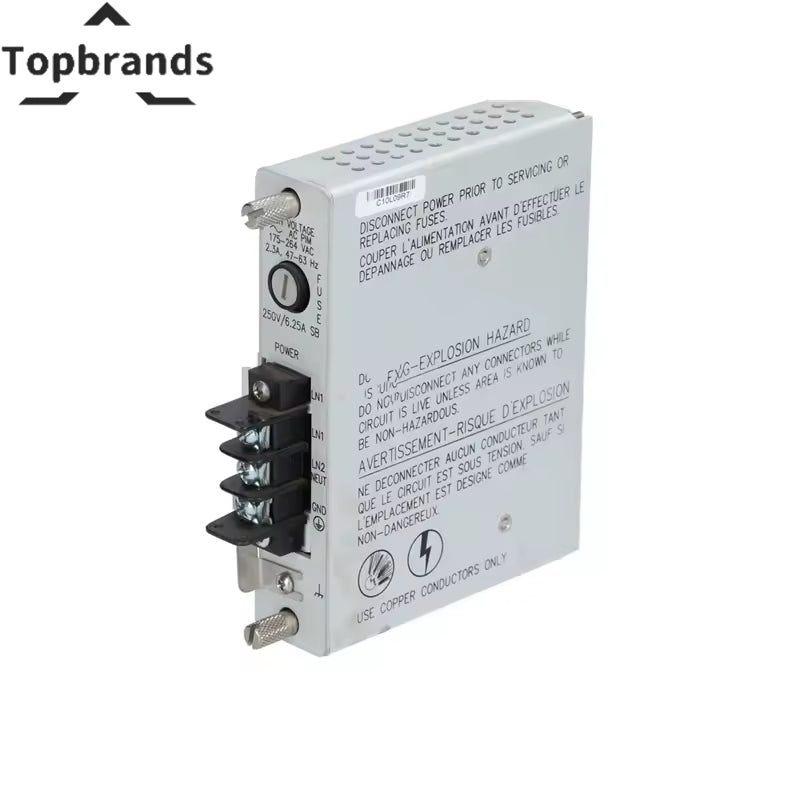

Bently Nevada | 125840-02 | 3500/15 | Low Voltage ac Power Input Module (PIM)
The Bently Nevada 125840-02 is a precision power input module for the Bently Nevada 3500 Series machinery protection platform. Power Consumption: Dependent on load and configuration | Input Current: Varies based on voltage and load | Isolation Voltage: 1500VAC, 60Hz for 1 minute. Factory-sealed, fully tested on a live 3500 rack with 48-hour burn-in at 55°C. 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| Input Voltage | Single-phase, 100-240VAC |
|---|---|
| Frequency Range | 50/60Hz |
| Power Consumption | Dependent on load and configuration |
| Input Current | Varies based on voltage and load |
| Isolation Voltage | 1500VAC, 60Hz for 1 minute |
| Overvoltage Category | II |
| Operating Temperature Range | -20°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity Range | 0% to 95% non-condensing |
| Communication Interface | Modbus RTU over RS485 |
| Protection Features | Overvoltage, undervoltage, overcurrent, short circuit |
| Dimensions | 3*13*13cm |
| Weight | 0.3kg |
| Manufacturer | Bently Nevada |
| Model / SKU | 125840-02 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 System Integration
The Bently Nevada 125840-02 is a 3500 Series component deployed worldwide in power generation, oil & gas, and heavy industry. Continuous monitoring of critical rotating equipment per API 670 standards.
🔧 Specifications
Specifications
| Parameter | Value |
|---|---|
| Input Voltage | Single-phase, 100-240VAC |
| Frequency Range | 50/60Hz |
| Power Consumption | Dependent on load and configuration |
| Input Current | Varies based on voltage and load |
| Isolation Voltage | 1500VAC, 60Hz for 1 minute |
| Overvoltage Category | II |
| Operating Temperature Range | -20°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
Installation
- Power down rack before insertion — not hot-swappable.
- Insert only in designated slot per configuration.
- ESD wrist strap mandatory.
- Verify STATUS LED green and channels OK after installation.
📦 Shipping & Warranty
24-hour handling. Anti-static packaging. DHL/FedEx/UPS worldwide. 12-month warranty.
❓ FAQ
Q: Genuine Bently Nevada?
A: Yes, 100% genuine with serial number. Full traceability.
Q: Installation support?
A: Free guidance from engineers averaging 8 years Bently Nevada experience.
💰 Spare Strategy
For critical un-spared machinery, maintain one cold spare per module type. First avoided outage pays for entire spare inventory.
