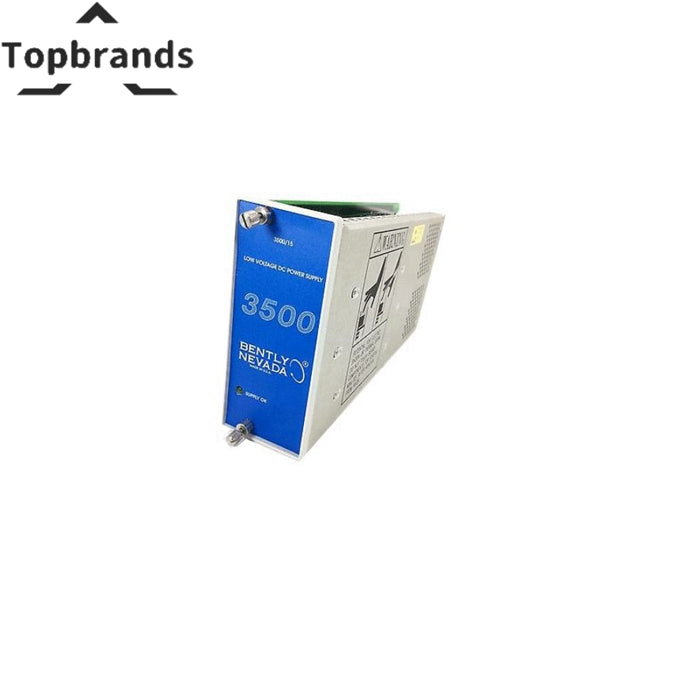

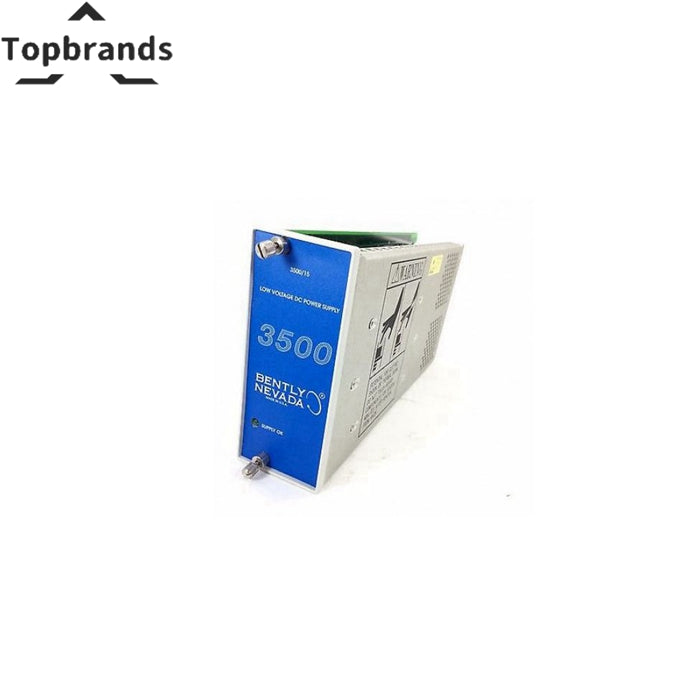

Bently Nevada 133292-01 3500/15 Low Voltage dc Power Supply Module
The Bently Nevada 133292-01 is a precision power supply module for the Bently Nevada 3500 Series machinery protection platform. Output Voltage: User-adjustable within specified limits | Output Current: User-adjustable within specified limits | Output Power: Depends on voltage and current settings. Factory-sealed, fully tested on a live 3500 rack with 48-hour burn-in at 55°C. 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| 133292-01 | is a reliable and efficient power supply module that is widely used in industrial applications. It is a cost-effective solution for powering Bently Nevada instrumentation and control systems. |
|---|---|
| Input Voltage | 24VDC |
| Output Voltage | User-adjustable within specified limits |
| Output Current | User-adjustable within specified limits |
| Output Power | Depends on voltage and current settings |
| Efficiency | Varies with load and configuration |
| Isolation Voltage | 1500VDC, 60s |
| Operating Temperature Range | -20°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity Range | 0% to 95% non-condensing |
| Communication Interface | Modbus RTU over RS485 |
| Protection Features | Overvoltage, undervoltage, overcurrent, short circuit |
| Dimensions | 6*26*13cm |
| Weight | 1.22kg |
| Manufacturer | Bently Nevada |
| Model / SKU | 133292-01 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 Application Context & System Role
The Bently Nevada 133292-01 is a power supply module for the 3500 Series machinery protection rack. Per API 670, the power supply is the most common failure point after 5-7 years of continuous service. For critical un-spared turbine-generator sets, dual redundant power supplies are mandatory.
Deployment Scenarios
- Gas Turbine Monitoring: Supplies regulated DC to vibration, temperature, and speed monitors in GE Frame-series and Siemens SGT installations.
- Steam Turbine Trains: Powers bearing vibration and axial position monitors on multi-casing sets.
- Compressor Stations: Pipeline and process compressor monitoring systems running 24/7/365.
Procurement Checklist
Verify input voltage (AC vs DC) before ordering. Mixing types in a redundant pair causes rack fault. Check your existing label: AC input = 127610-01, DC input = 133292-01. Always order matching Power Input Module (PIM).
🔧 Technical Specifications
Module Specifications
| Parameter | Value |
|---|---|
| 133292-01 | is a reliable and efficient power supply module that is widely used in industrial applications. It is a cost-effective solution for powering Bently Nevada instrumentation and control systems. |
| Input Voltage | 24VDC |
| Output Voltage | User-adjustable within specified limits |
| Output Current | User-adjustable within specified limits |
| Output Power | Depends on voltage and current settings |
| Efficiency | Varies with load and configuration |
| Isolation Voltage | 1500VDC, 60s |
| Operating Temperature Range | -20°C to 70°C |
Installation
- Insert into leftmost rack slot(s). Redundant supplies = two leftmost positions.
- ESD mandatory: Grounded wrist strap with 1 MΩ resistor.
- Verify POWER OK LED illuminates green within 3 seconds.
- Test redundancy: remove one supply while rack running — all monitors must continue uninterrupted.
📦 Shipping & Warranty
Ships within 24 hours from Shenzhen. Anti-static ESD packaging. DHL/FedEx/UPS worldwide 3-5 days. 12-month warranty covering component failure and output drift beyond specification.
❓ Frequently Asked Questions
Q: Can I mix AC and DC power supplies in a redundant pair?
A: No. Both supplies must be same input type. Mixing blows the input fuse.
Q: How often should I proactively replace?
A: Electrolytic capacitors degrade after 8-12 years. Predictive replacement at 8 years recommended.
Q: Need matching PIM?
A: Yes. 3500/15 requires separate PIM for input conditioning. We stock all variants.
💰 Spare Parts Economics
A spare 133292-01 costs thousands. One unplanned turbine trip costs $50,000-250,000. For critical un-spared machinery: run redundant supplies plus keep one cold spare.
