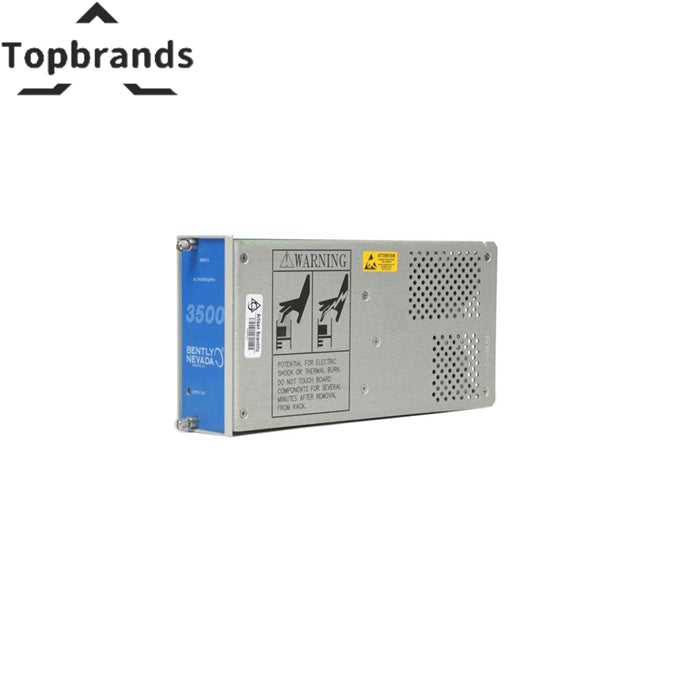

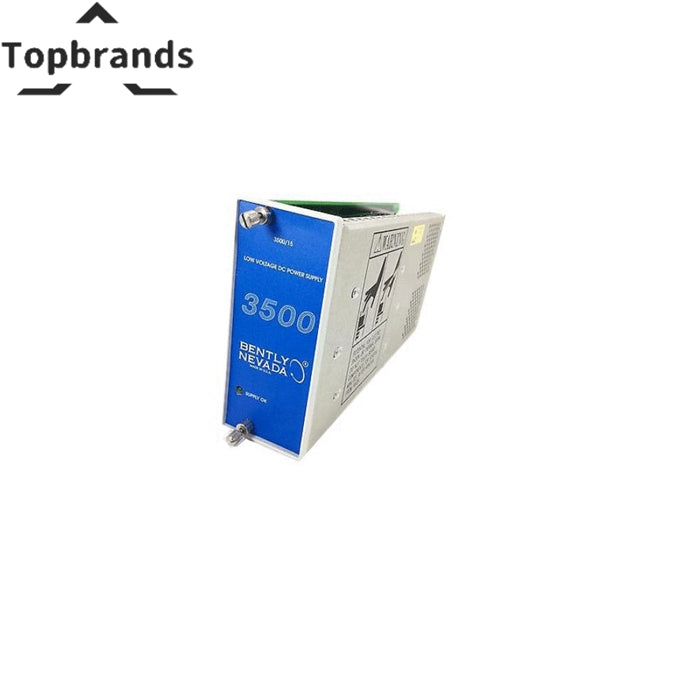

Bently Nevada | 3500/15 | 106M1079-01 | Universal AC Power Supply Module
The Bently Nevada 106M1079-01 is a precision power supply module for the Bently Nevada 3500 Series machinery protection platform. Manufacturer: Bently Nevada | Series: 3500/15 | Product Type: Universal AC Power Supply. Factory-sealed, fully tested on a live 3500 rack with 48-hour burn-in at 55Ā°C. 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| 106M1079-01 | is a Universal AC Power Supply designed and manufactured by Bently Nevada, specifically for use with the 3500/15 System. This power supply is a half-height module that must be installed in designated slots on the left side of the rack. The rack can accommodate one or two power supplies, which can be either AC or DC, in any combination. A full rack can be powered by either type of supply. |
|---|---|
| Part Number | 106M1079-01 |
| Manufacturer | Bently Nevada |
| Series | 3500/15 |
| Product Type | Universal AC Power Supply |
| Availability | In stock |
| Dimensions (Height x Width x Depth) | 120.7 mm x 50.8 mm x 251.5 mm |
| Weight | 1.39 kg |
| Manual | 141530 |
| Country of Manufacture | United States (USA) |
| Hot-Swap Capability | Removing or inserting either power supply module does not affect the operation of the rack, provided a second power supply is installed. |
| Versatile Input | The DC Power Supplies accept a wide range of input voltages and convert them to the voltages required by other 3500 modules. |
| Compatibility | The Universal AC Power Supply is not compatible with the Legacy AC Power Supply, High Voltage AC PIM, and Low Voltage AC PIM. Similarly, the Legacy High Voltage and Low Voltage DC Power Supplies and PIMs are not compatible with the Legacy 3500 High Voltage and Low Voltage DC Power Supplies and PIMs. |
| Model / SKU | 106M1079-01 |
ā Ships within 24 hours | ā 12-Month Warranty | ā Worldwide Delivery
Detailed Product Information
šÆ Application Context & System Role
The Bently Nevada 106M1079-01 is a power supply module for the 3500 Series machinery protection rack. Per API 670, the power supply is the most common failure point after 5-7 years of continuous service. For critical un-spared turbine-generator sets, dual redundant power supplies are mandatory.
Deployment Scenarios
- Gas Turbine Monitoring: Supplies regulated DC to vibration, temperature, and speed monitors in GE Frame-series and Siemens SGT installations.
- Steam Turbine Trains: Powers bearing vibration and axial position monitors on multi-casing sets.
- Compressor Stations: Pipeline and process compressor monitoring systems running 24/7/365.
Procurement Checklist
Verify input voltage (AC vs DC) before ordering. Mixing types in a redundant pair causes rack fault. Check your existing label: AC input = 127610-01, DC input = 133292-01. Always order matching Power Input Module (PIM).
š§ Technical Specifications
Module Specifications
| Parameter | Value |
|---|---|
| 106M1079-01 | is a Universal AC Power Supply designed and manufactured by Bently Nevada, specifically for use with the 3500/15 System. This power supply is a half-height module that must be installed in designated slots on the left side of the rack. The rack can accommodate one or two power supplies, which can be either AC or DC, in any combination. A full rack can be powered by either type of supply. |
| Part Number | 106M1079-01 |
| Manufacturer | Bently Nevada |
| Series | 3500/15 |
| Product Type | Universal AC Power Supply |
| Availability | In stock |
| Dimensions (Height x Width x Depth) | 120.7 mm x 50.8 mm x 251.5 mm |
| Weight | 1.39 kg |
Installation
- Insert into leftmost rack slot(s). Redundant supplies = two leftmost positions.
- ESD mandatory: Grounded wrist strap with 1 MĪ© resistor.
- Verify POWER OK LED illuminates green within 3 seconds.
- Test redundancy: remove one supply while rack running ā all monitors must continue uninterrupted.
š¦ Shipping & Warranty
Ships within 24 hours from Shenzhen. Anti-static ESD packaging. DHL/FedEx/UPS worldwide 3-5 days. 12-month warranty covering component failure and output drift beyond specification.
ā Frequently Asked Questions
Q: Can I mix AC and DC power supplies in a redundant pair?
A: No. Both supplies must be same input type. Mixing blows the input fuse.
Q: How often should I proactively replace?
A: Electrolytic capacitors degrade after 8-12 years. Predictive replacement at 8 years recommended.
Q: Need matching PIM?
A: Yes. 3500/15 requires separate PIM for input conditioning. We stock all variants.
š° Spare Parts Economics
A spare 106M1079-01 costs thousands. One unplanned turbine trip costs $50,000-250,000. For critical un-spared machinery: run redundant supplies plus keep one cold spare.
