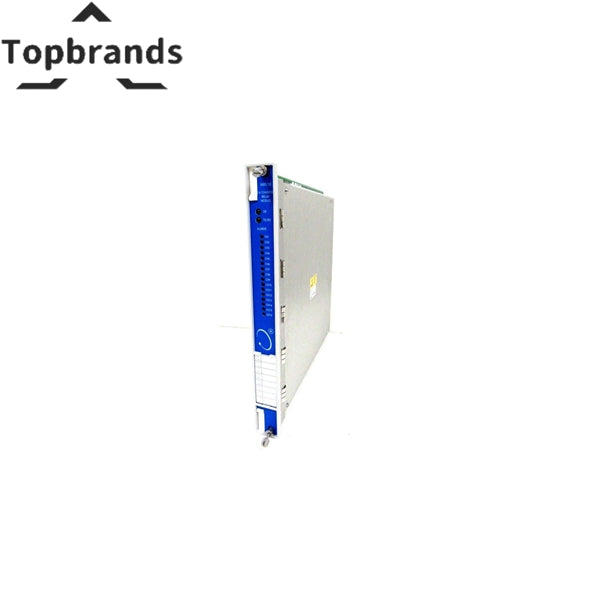

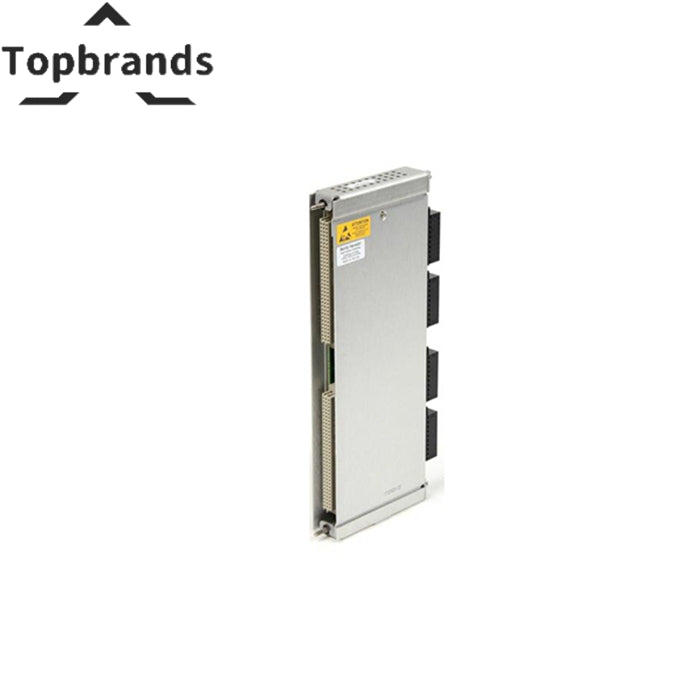

Bently Nevada | 149369-01 | 3500/25 | Enhanced Keyphasor Module
The Bently Nevada 149369-01 is a precision enhanced keyphasor module for the Bently Nevada 3500 Series machinery protection platform. Manufacturer: Bently Nevada | Product Type: Enhanced Keyphasor Module | Series: 3500. Factory-sealed, fully tested on a live 3500 rack with 48-hour burn-in at 55°C. 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| 3500/25 149369-01 | Enhanced Keyphasor Module is a half-height, two-channel module used in Machinery Condition Monitoring systems. It transmits Keyphasor signals to the monitor modules within a 3500 rack. The module detects alignment of the Keyphasor mark on the shaft with the Keyphasor transducer using magnetic pickups or proximity probes. It converts these input signals into digital Keyphasor signals. |
|---|---|
| Model | 3500/25-PWA149369-01 |
| Manufacturer | Bently Nevada |
| Product Type | Enhanced Keyphasor Module |
| Series | 3500 |
| Country of Origin | USA |
| Power Consumption | 3.2 Watts |
| Input Impedance | 21.8 k Ohm minimum |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Availability | In Stock |
| Model / SKU | 149369-01 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 System Integration
The Bently Nevada 149369-01 is a 3500 Series component deployed worldwide in power generation, oil & gas, and heavy industry. Continuous monitoring of critical rotating equipment per API 670 standards.
🔧 Specifications
Specifications
| Parameter | Value |
|---|---|
| 3500/25 149369-01 | Enhanced Keyphasor Module is a half-height, two-channel module used in Machinery Condition Monitoring systems. It transmits Keyphasor signals to the monitor modules within a 3500 rack. The module detects alignment of the Keyphasor mark on the shaft with the Keyphasor transducer using magnetic pickups or proximity probes. It converts these input signals into digital Keyphasor signals. |
| Model | 3500/25-PWA149369-01 |
| Manufacturer | Bently Nevada |
| Product Type | Enhanced Keyphasor Module |
| Series | 3500 |
| Country of Origin | USA |
| Power Consumption | 3.2 Watts |
| Input Impedance | 21.8 k Ohm minimum |
Installation
- Power down rack before insertion — not hot-swappable.
- Insert only in designated slot per configuration.
- ESD wrist strap mandatory.
- Verify STATUS LED green and channels OK after installation.
📦 Shipping & Warranty
24-hour handling. Anti-static packaging. DHL/FedEx/UPS worldwide. 12-month warranty.
❓ FAQ
Q: Genuine Bently Nevada?
A: Yes, 100% genuine with serial number. Full traceability.
Q: Installation support?
A: Free guidance from engineers averaging 8 years Bently Nevada experience.
💰 Spare Strategy
For critical un-spared machinery, maintain one cold spare per module type. First avoided outage pays for entire spare inventory.
