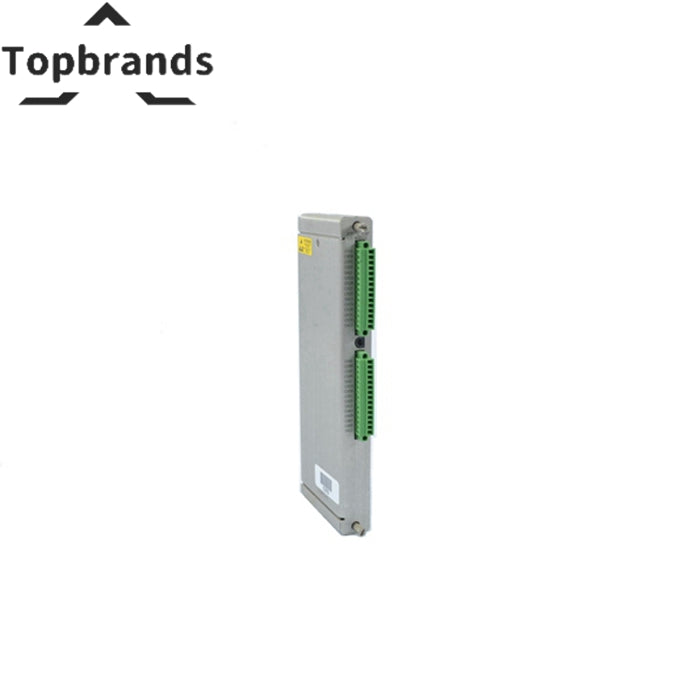

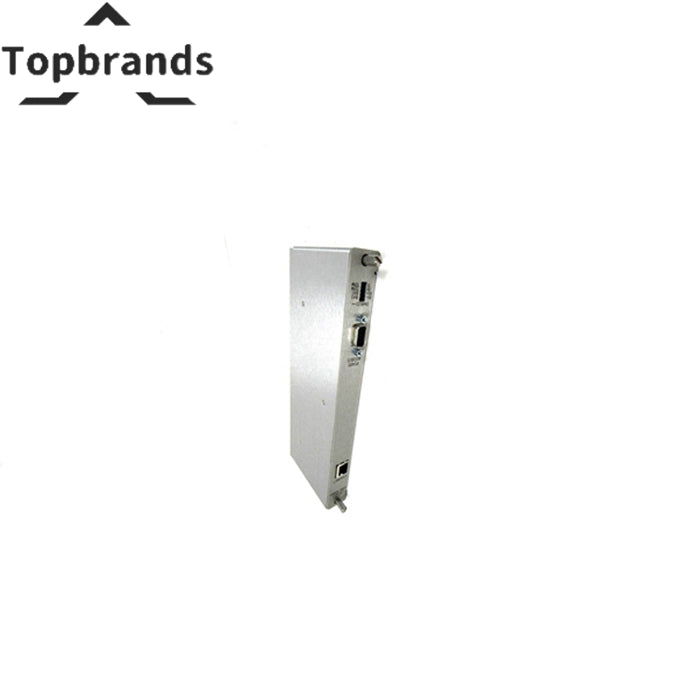

Bently Nevada 3500/20 125760-01 Data Manager I/O Module
The Bently Nevada 125760-01 is a precision data manager i/o module for the Bently Nevada 3500 Series machinery protection platform. Manufacturer: Bently Nevada | Country of Manufacture: United States (USA) | Product Type: Data Manager I/O Module. Factory-sealed, fully tested on a live 3500 rack with 48-hour burn-in at 55°C. 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| 125760-01 | is a Data Manager I/O Module developed by Bently Nevada as part of the 3500/20 Series Rack Interface Module (RIM). This module serves as the principal interface to the 3500 rack system, facilitating communication and data management through a proprietary protocol. |
|---|---|
| Part Number | 125760-01 |
| Manufacturer | Bently Nevada |
| Country of Manufacture | United States (USA) |
| Product Type | Data Manager I/O Module |
| Series | Bently Nevada 3500 |
| Size | 100 x 160 x 60 mm (3.94 x 6.30 x 2.36 in) |
| Weight | 0.7 kg (1.54 lb) |
| Primary Connection to the 3500 Rack | Acts as the main interface between the rack and other system components. |
| Proprietary Protocol Support | Utilizes a specialized protocol for configuring the rack and retrieving machinery data. |
| Slot Requirement | Must be installed in Slot 1 of the 3500 rack. |
| Communication Processor Support | Compatible with communication processors such as TDXnet, TDIX, and DDIX. |
| Model / SKU | 125760-01 |
â Ships within 24 hours | â 12-Month Warranty | â Worldwide Delivery
Detailed Product Information
ðŊ System Integration
The Bently Nevada 125760-01 connects the 3500 rack to plant condition monitoring and historian infrastructure, streaming real-time vibration and temperature data to System 1, OSIsoft PI, or DCS via Modbus TCP.
Network Options
- Copper (146031-01): 10/100Base-TX, max 100m.
- Fiber (146031-02): 100Base-FX, max 2km â ideal for long runs or high-EMI areas.
Configuration
Static IP mandatory â DHCP expiry causes data gaps. Configure NTP for accurate timestamps. Allow TCP 3500 + TCP 502 through OT firewall.
ð§ Technical Specifications
Specifications
| Parameter | Value |
|---|---|
| 125760-01 | is a Data Manager I/O Module developed by Bently Nevada as part of the 3500/20 Series Rack Interface Module (RIM). This module serves as the principal interface to the 3500 rack system, facilitating communication and data management through a proprietary protocol. |
| Part Number | 125760-01 |
| Manufacturer | Bently Nevada |
| Country of Manufacture | United States (USA) |
| Product Type | Data Manager I/O Module |
| Series | Bently Nevada 3500 |
| Size | 100 x 160 x 60 mm (3.94 x 6.30 x 2.36 in) |
| Weight | 0.7 kg (1.54 lb) |
Installation
- Install in assigned rack slot per configuration drawing.
- Copper: CAT5e UTP 100m max. Fiber: 62.5/125Ξm multimode SC 2km max.
- Assign static IP. Configure NTP. Document settings.
- Verify STATUS LED green and data flowing before returning to service.
ðĶ Shipping & Warranty
24-hour handling. Anti-static packaging. DHL/FedEx/UPS. 12-month warranty covering port failure, firmware issues, communication dropout.
â FAQ
Q: Copper or fiber?
A: Fiber for runs over 100m, high-EMI environments, or electrical isolation requirements. Copper for standard control room under 100m.
Q: Does replacement require reconfiguration?
A: Yes â IP settings are stored on the module. Document your settings before removing the old module.
ð° ROI
The TDI module enables predictive maintenance. One avoided bearing failure on a 50 MW turbine saves $250K-500K. Without it, your 3500 rack is just a trip system.
