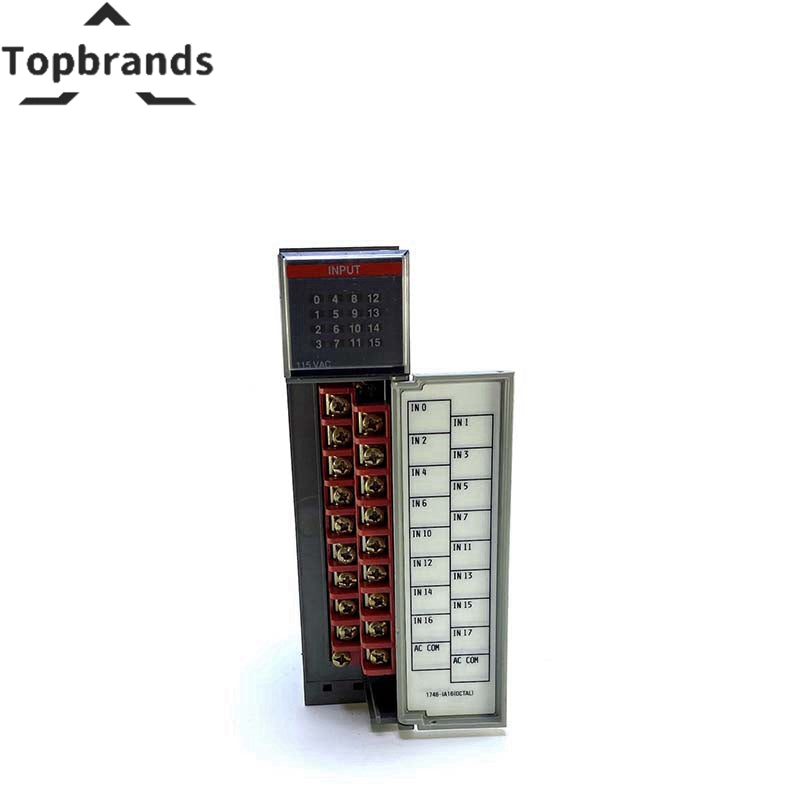

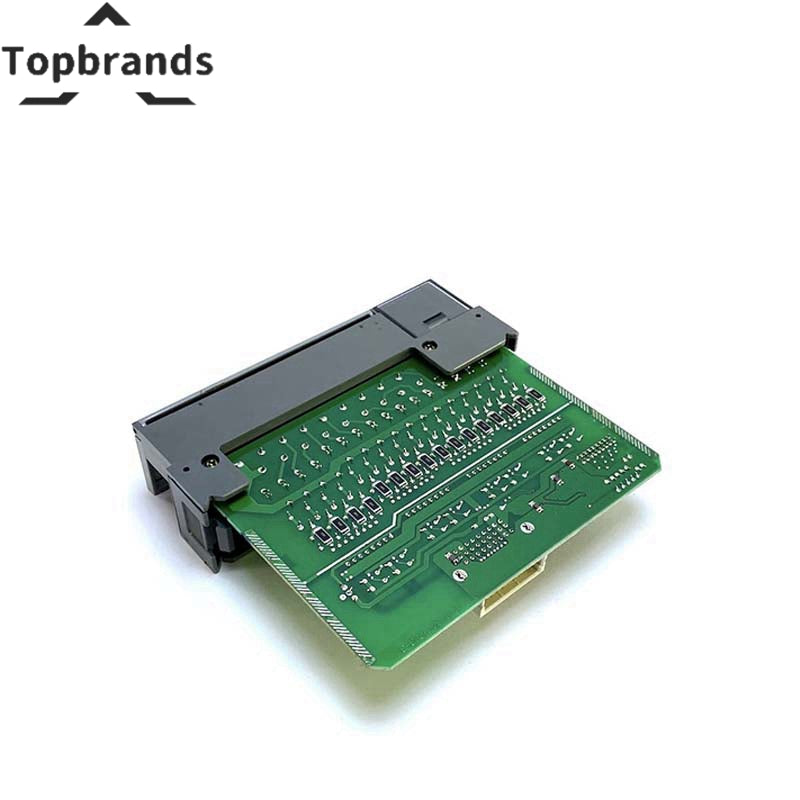

1746-IA16 | Allen-Bradley SLC500 PLC Sytem AC Input Modules
The Allen-Bradley 1746-IA16 is a ac input modules for Allen-Bradley industrial automation platforms. Number of Inputs: 16 | Points per Common: 16 | Operating Voltage: 85...132V AC @ 47...63 Hz. Factory-sealed, fully tested, 12-month warranty. Ships within 24 hours.
Technical Specifications
| Product Type | AC Input Modules |
|---|---|
| Voltage Category | 100/120V AC signal input |
| Number of Inputs | 16 |
| Points per Common | 16 |
| Operating Voltage | 85...132V AC @ 47...63 Hz |
| Backplane Current Consumption (5V DC) | 0.085 A |
| Manufacturer | Allen-Bradley |
| Model / SKU | 1746-IA16 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 I/O Function
The Allen-Bradley 1746-IA16 provides signal interface between field devices and the control system. It handles signal conditioning, channel isolation, and data conversion for reliable industrial operation.
🔧 Specifications
| Parameter | Value |
|---|---|
| Product Type | AC Input Modules |
| Voltage Category | 100/120V AC signal input |
| Number of Inputs | 16 |
| Points per Common | 16 |
| Operating Voltage | 85...132V AC @ 47...63 Hz |
| Backplane Current Consumption (5V DC) | 0.085 A |
| Manufacturer | Allen-Bradley |
| Model / SKU | 1746-IA16 |
Installation
- Insert in designated slot — slot mismatch causes configuration alarm.
- Power down before insertion unless system supports hot-swap.
- ESD wrist strap mandatory.
📦 Shipping
24h handling. Anti-static packaging. 12-month warranty covering channel failure and communication faults.
❓ FAQ
Q: Channel isolation?
A: Verify isolation voltage rating matches your application requirements.
💰 Spare
One cold spare per I/O type for critical loops. I/O failure = loss of control visibility.
