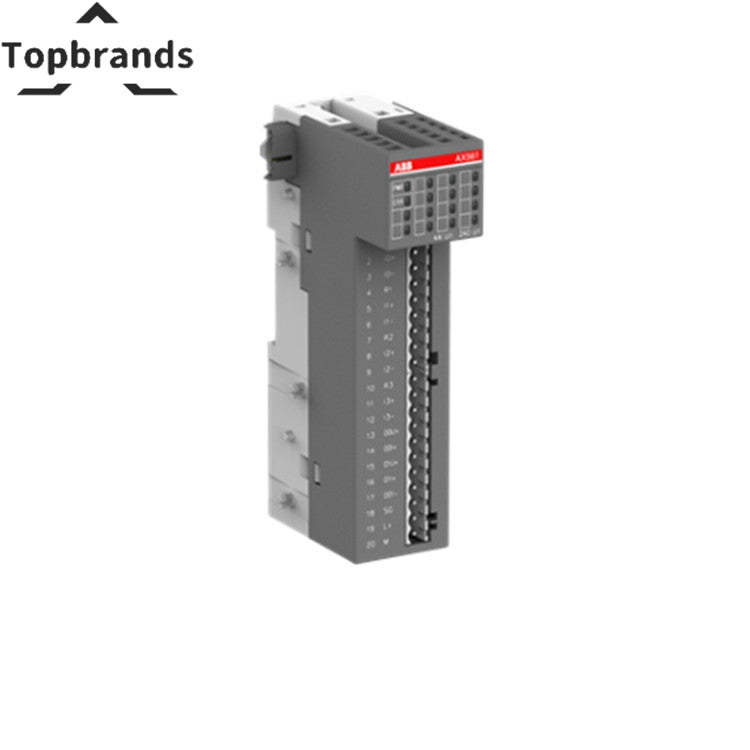

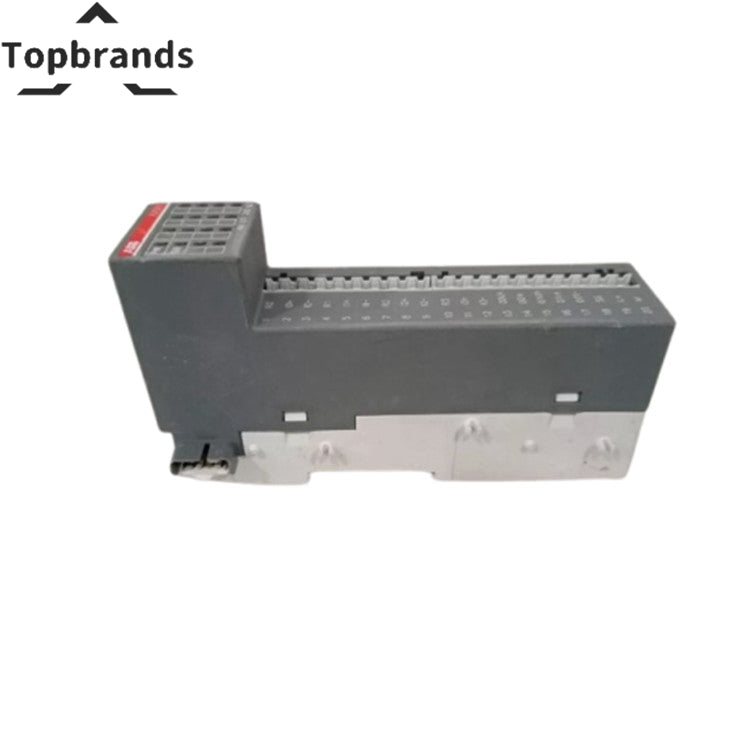

1TNE968902R1301 AX561 | ABB | S500 Analog Input/Output Module
The ABB 1TNE968902R1301 is a analog input/output module for ABB platforms. Made To Order: No | Minimum Order Quantity: 1 piece | Order Multiple: 1 piece. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| CN8 Code | 85371091 |
|---|---|
| Invoice Description | Analog input/output module. 4 AI: U, I. 2 AO: U, I (AX561) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
| Product Net Weight | 0.122 kg |
| Product Net Depth / Length | 135 mm |
| Product Net Height | 74 mm |
| Product Net Width | 34 mm |
| Gross Weight | 0.225 kg |
| Package Level 1 Depth / Length | 93 mm |
| Package Level 1 Height | 63 mm |
| Package Level 1 Width | 170 mm |
| Package Level 1 Units | 1 carton |
| Function | 4 AI: U, I. 2 AO: U, I |
| Number of Analog Configurable I/Os | 0 |
| Analog Inputs | 4 |
| Input Signal | U, I |
| Analog Outputs | 2 |
| Output Signal | U, I |
| Resolution | : |
| Connection Type | Pluggable |
| Degree of Protection | Housing IP20 |
| Ambient Air Temperature | : |
| Product Main Type | AX561 |
| Product Name | Distributed Automation I/Os |
| eClass | 27-24-22-02 |
| ETIM 8 | EC001420 - PLC analogue I/O-module |
| UNSPSC | 32151705 |
| SCIP | c887cf92-28a3-4b16-8e08-37da9806c17f Germany (DE) |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer | ABB |
| Model / SKU | 1TNE968902R1301 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
About the ABB 1TNE968902R1301
ABB's industrial automation portfolio spans DCS, PLC, and power electronics, integrating into ABB Ability System 800xA, Advant OCS, or AC 800M platforms.
The 1TNE968902R1301 AX561 | ABB | S500 Analog Input/Output Module is a analog input/output module with these key specifications: CN8 Code: 85371091
Invoice Description: Analog input/output module. 4 AI: U, I. 2 AO: U, I (AX561)
Made To Order: No
Minimum Order Quantity: 1 piece.
When ordering a replacement, verify these parameters against your existing module — two modules sharing the same base number can have different internal configurations. This unit is factory-sealed and tested on a live rack with 48-hour burn-in at 55°C. Printed test report included. 12-month warranty. Ships within 24 hours from Shenzhen.
Compatible Parts — Same System
These modules share the same system family as the 1TNE968902R1301. Commonly ordered together for complete rack builds or spare parts kits.
