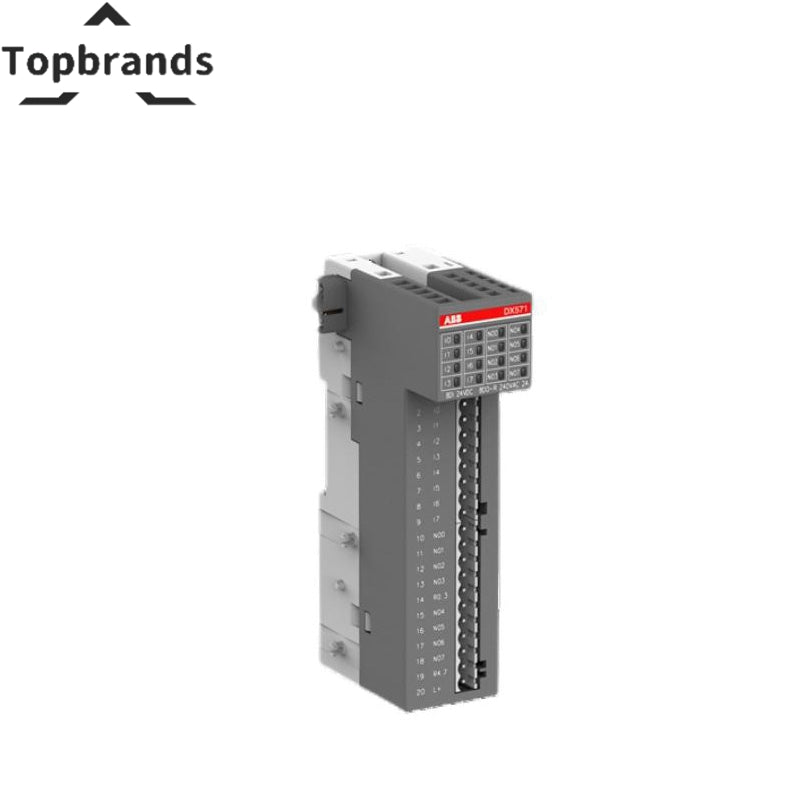

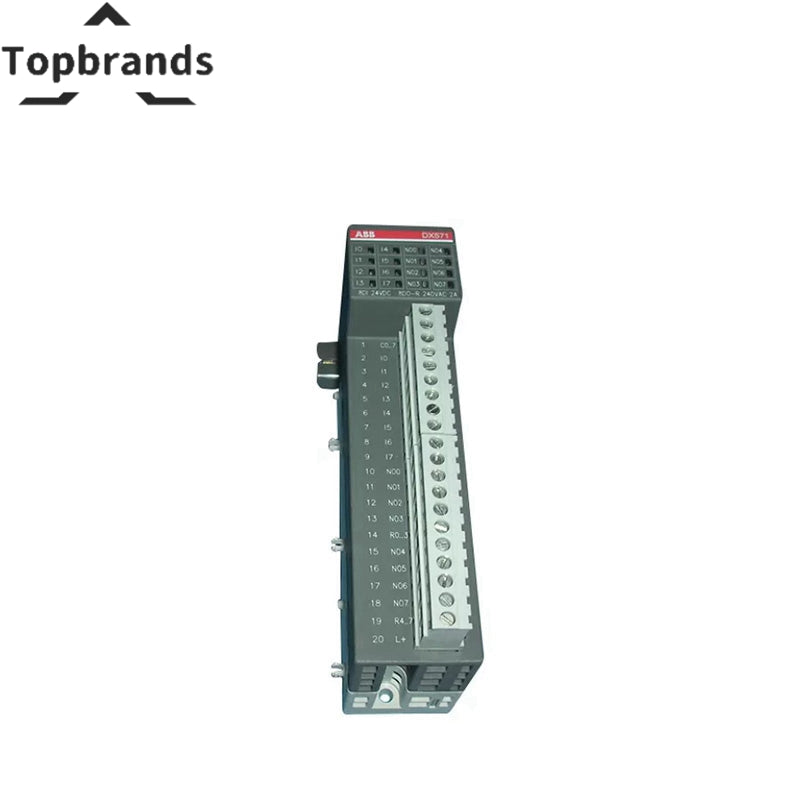

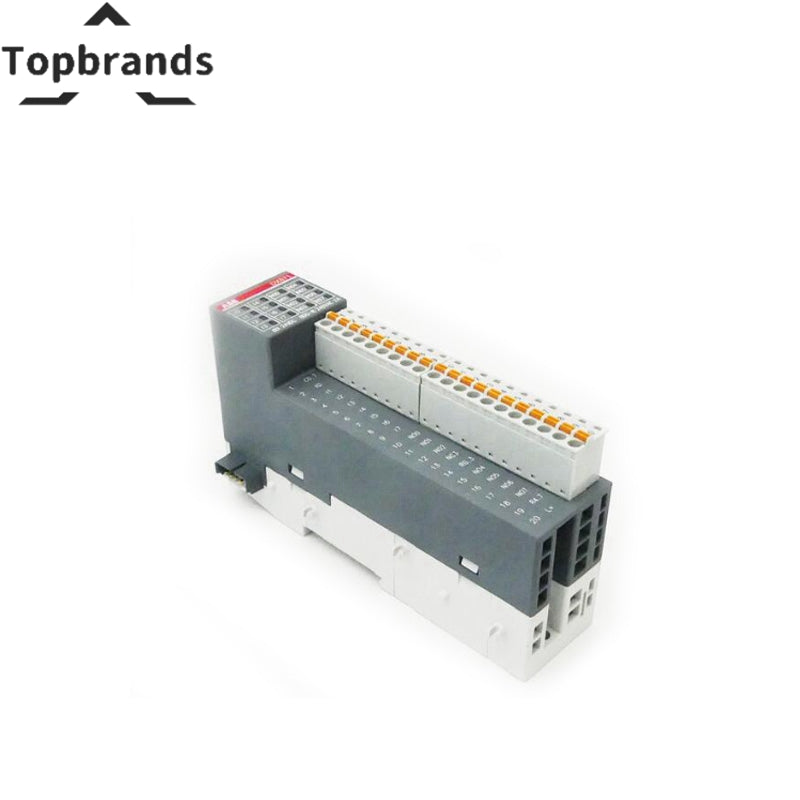

1TNE968902R2302 DX571 | ABB | S500 Digital Input/Output Module
The ABB 1TNE968902R2302 is a digital input/output module for ABB platforms. Made To Order: No | Minimum Order Quantity: 1 piece | Order Multiple: 1 piece. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| CN8 Code | 85371091 |
|---|---|
| Invoice Description | Digital input/output module. 8 DI sink/source: 24VDC. 8 DO relay: 120..240VAC 2A (DX571) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
| Product Net Weight | 0.14 kg |
| Product Net Depth / Length | 135 mm |
| Product Net Height | 74 mm |
| Product Net Width | 34 mm |
| Gross Weight | 0.242 kg |
| Package Level 1 Depth / Length | 93 mm |
| Package Level 1 Height | 63 mm |
| Package Level 1 Width | 170 mm |
| Package Level 1 Units | 1 carton |
| Function | 8 DI sink/source: 24VDC. 8 DO relay: 120..240VAC 2A |
| Number of Digital Inputs | 8 |
| Number of Digital Outputs | 8 |
| Number of Digital Configurable I/Os | 0 |
| Input Voltage Type | AC/DC |
| Input Current | 5 mA |
| Maximum Input Voltage | 0 ... 30 V |
| Delay Time (τ) | 8 … 8 ms |
| Output | Relay |
| Output Voltage Type | AC |
| Output Voltage (Uout) | 24...230 V |
| Output Current | 2 A |
| Output Voltage Maximum | 195.5 … 276 V |
| Connection Type | Pluggable |
| Degree of Protection | IP20 |
| Supply Voltage | 20.4 … 28.8 V DC |
| Ambient Air Temperature | : |
| Product Main Type | DX571 |
| Product Name | Distributed Automation I/Os |
| eClass | 27-24-22-04 |
| ETIM 8 | EC001419 - PLC digital I/O-module |
| UNSPSC | 32151705 |
| SCIP | fcf81398-6142-481c-8bff-736b95ecf10f Germany (DE) |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer | ABB |
| Model / SKU | 1TNE968902R2302 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
About the ABB 1TNE968902R2302
ABB's industrial automation portfolio spans DCS, PLC, and power electronics, integrating into ABB Ability System 800xA, Advant OCS, or AC 800M platforms.
The 1TNE968902R2302 DX571 | ABB | S500 Digital Input/Output Module is a digital input/output module with these key specifications: CN8 Code: 85371091
Invoice Description: Digital input/output module. 8 DI sink/source: 24VDC. 8 DO relay: 120..240VAC 2A (DX571)
Made To Order: No
Minimum Order Quantity: 1 piece.
When ordering a replacement, verify these parameters against your existing module — two modules sharing the same base number can have different internal configurations. This unit is factory-sealed and tested on a live rack with 48-hour burn-in at 55°C. Printed test report included. 12-month warranty. Ships within 24 hours from Shenzhen.
Compatible Parts — Same System
These modules share the same system family as the 1TNE968902R2302. Commonly ordered together for complete rack builds or spare parts kits.
