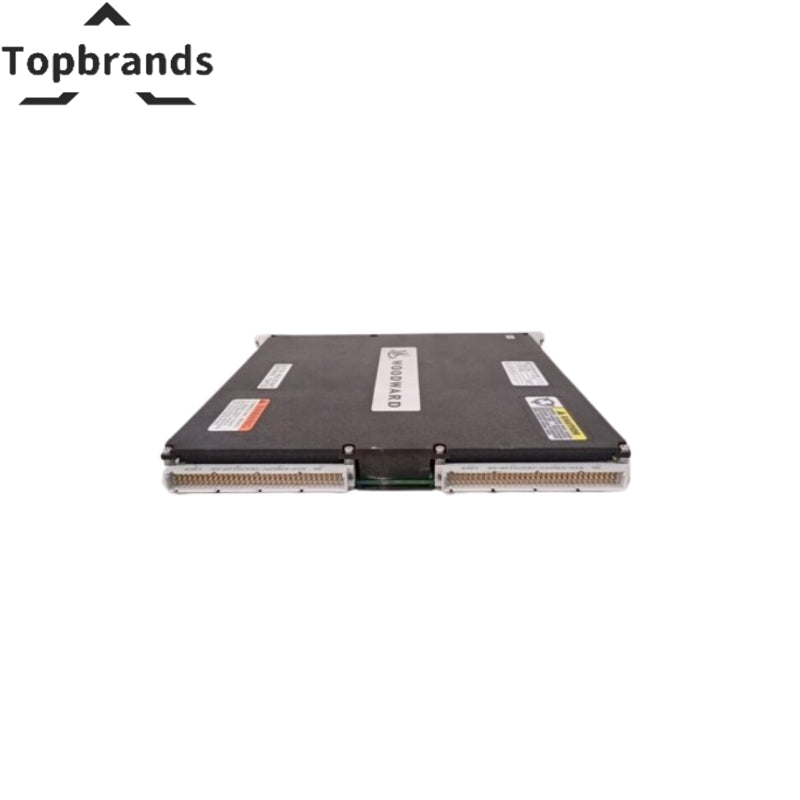

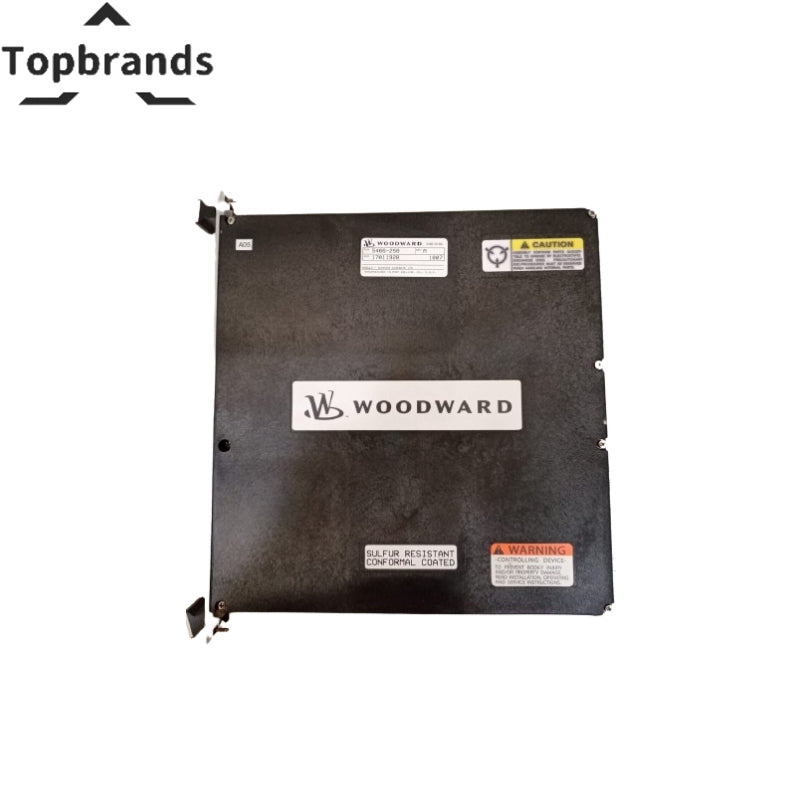

5466-5026 | Woodward | High-Density Analog I/O Module view 15466-5026 | Woodward | High-Density Analog I/O Module view 25466-5026 | Woodward | High-Density Analog I/O Module view 3
Woodward

5466-5026 | Woodward | High-Density Analog I/O Module

SKU: 5466-5026 In Stock
High-Density Analog I/O ModuleWoodward

The Woodward 5466-5026 is a high-density analog i/o module for Woodward platforms. Type: High-Density Analog I/O Module | Redundancy Type: Simplex | Weight: 48 lbs. (22 kg) when installed in the chassis. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.

Technical Specifications

Part Number5466-5026
ManufacturerWoodward
TypeHigh-Density Analog I/O Module
Redundancy TypeSimplex
Weight48 lbs. (22 kg) when installed in the chassis
Storage Temperature-40 to +221 °F (-40 to +105 °C)
Sound LevelLess than 70 dBA
Air QualityPollution Degree 2
Maximum Altitude4000 m
InstallationMounting in the chassis's card guide, connects through two high-density cables to up to two field transition modules (FTMs)
Input Voltage0-25 mA or 0-5 V
Model / SKU5466-5026
Request a Quote — 5466-5026

Ships within 24 hours  |  12-Month Warranty  |  Worldwide Delivery

Category: active productswoodwardanalog i o modulesfactory newmounting chassis slottemp extended tempwoodward micronetall
Filter by Specification:

Genuine Woodward — Tested, Not Just Inspected

Live-rack power-up, channel verification, 48-hour burn-in at 55C. Printed test report. Full traceability. 12-month warranty. Ships within 24 hours.
