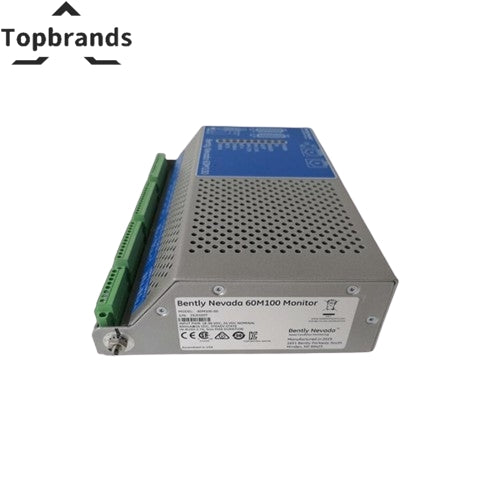

60M100-00 | Bently Nevada | Condition Monitoring System
The Bently Nevada 60M100-00 is a condition monitoring system for Bently Nevada platforms. Measurement Range: 0 to 100 mm | Resolution: 0.1 mm | Accuracy: ±0.5% of full scale. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24h.
Technical Specifications
| 60M100 | Condition Monitoring System is designed for continuous online monitoring of machinery, utilizing advanced signal processing algorithms and analyzing machine operating states. As part of Condition-Based Maintenance (CBM) solutions, this system aids in early detection of potential issues, helping to prevent failures and reduce maintenance costs significantly. |
|---|---|
| Sensor Type | Eddy current proximity sensor |
| Measurement Range | 0 to 100 mm |
| Resolution | 0.1 mm |
| Accuracy | ±0.5% of full scale |
| Output Signal | 10 mA to 20 mA |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +105°C |
| Humidity | 0 to 95% RH, non-condensing |
| High Resolution | Capable of monitoring 150 static variables, producing high-resolution waveform data and detailed trendlines for enhanced analysis. |
| Versatility | The system supports both basic monitoring functions and advanced signal processing, allowing it to adapt to various industrial needs. |
| Robust Design | Built to withstand harsh industrial environments, the compact design ensures reliability and durability. |
| Early Detection | Facilitates early detection of potential issues, minimizing damage, and reducing the likelihood of unnecessary outages, contributing to overall operational efficiency. |
| Manufacturer | Bently Nevada |
| Model / SKU | 60M100-00 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
The Bently Nevada 60M100-00 is a precision measurement device that converts physical motion into electrical signals for machinery protection and condition monitoring. In vibration monitoring applications, sensor accuracy is the foundation of every decision the control system makes — an alarm trip, a shutdown sequence, or a maintenance work order all start with the signal from this device.
What makes sensor selection critical is that the measurement chain includes not just the sensor element but the cable and signal conditioner as well. Any weak link degrades the entire measurement. Sensor Type: Eddy current proximity sensor. Measurement Range: 0 to 100 mm. Resolution: 0.1 mm. These parameters define the operating envelope for this specific unit.
We test every Bently Nevada sensor on a calibrated bench before shipping: scale factor, linearity, and gap voltage are measured against the manufacturer specification sheet. Units that deviate are not shipped. A printed test report with serial number and measured values accompanies every order. This is genuine Bently Nevada — not aftermarket, not clone, not "compatible." Factory-sealed packaging. 12-month warranty. Ships within 24 hours from our Shenzhen warehouse via DHL, FedEx, or UPS.
What should I check before installing a replacement sensor?
Inspect the target surface for pitting, rust, or mechanical runout. For eddy-current probes, the target must be clean, smooth, conductive, and at least 2x the probe tip diameter. Verify the mounting bracket is rigid and properly torqued. Use a gap meter to set the correct gap voltage before tightening the lock nut. After installation, verify the gap voltage at the proximitor output before returning the machine to service.
What is the difference between a genuine {vendor} sensor and an aftermarket equivalent?
Genuine {vendor} sensors use proprietary coil winding and encapsulation techniques, calibrated magnetic materials, and individually measured sensitivity and linearity. Aftermarket clones typically use generic components that may have wider tolerance ranges, different temperature coefficients, and no individual calibration. In side-by-side testing, clone sensors can deviate 15-30% from genuine specifications — enough to miss a developing fault or false-trip a healthy machine.
How do I verify this is the correct sensor for my application?
Match the full part number on your existing sensor label. {vendor} part numbers encode the probe tip diameter, thread type, cable length, and connector style in the suffix codes. If any segment differs, the sensor may be mechanically incompatible or have the wrong electrical characteristics. Send us a clear photo of your existing sensor label and our engineers will confirm compatibility, typically within 4 business hours.
Compatible Parts — Same System
These modules share the same system family as the 60M100-00. Commonly ordered together for complete rack builds or spare parts kits.
