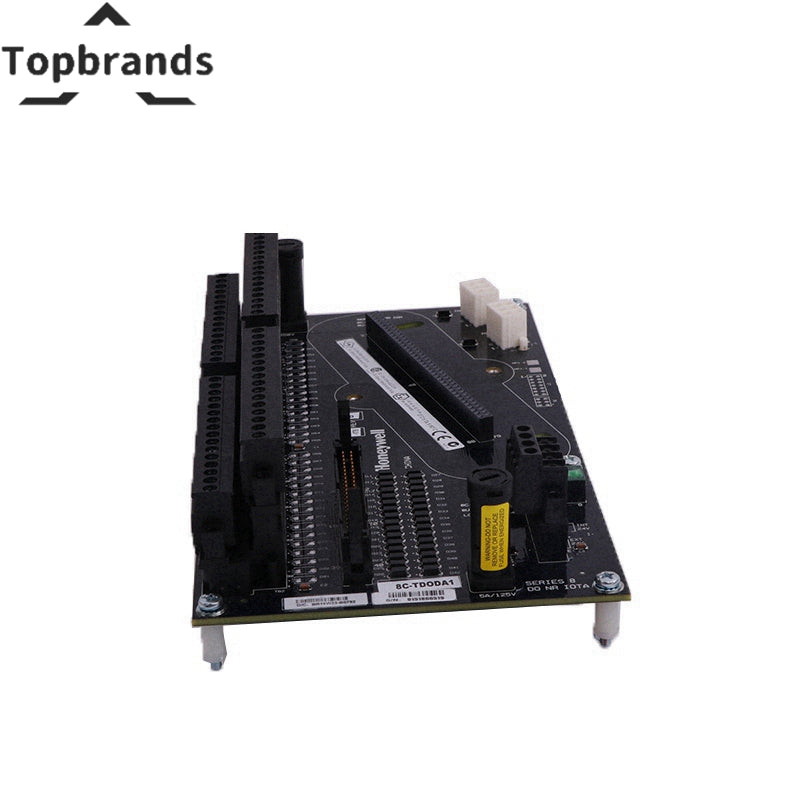

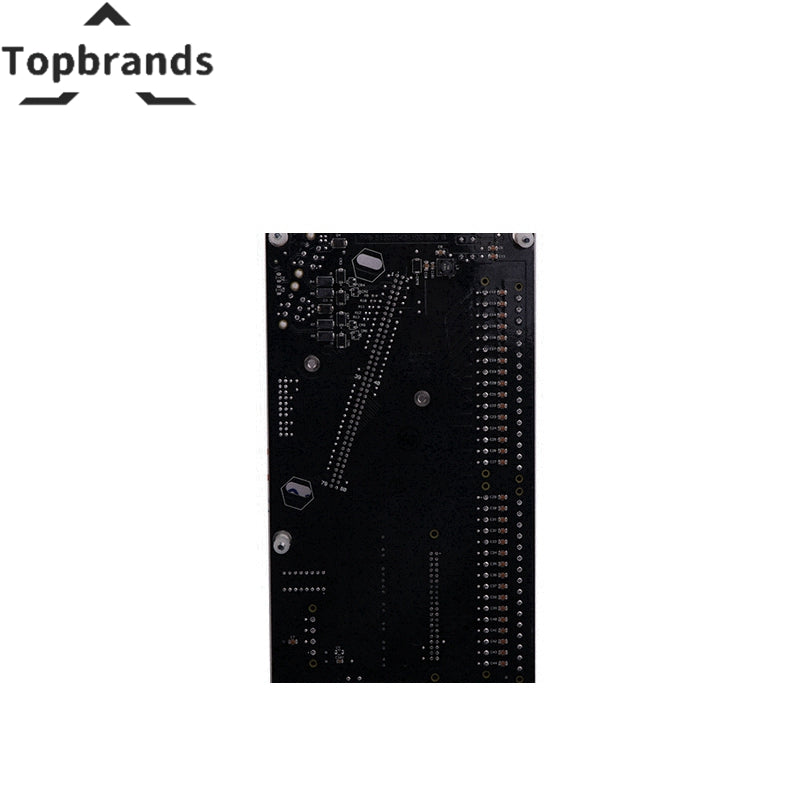

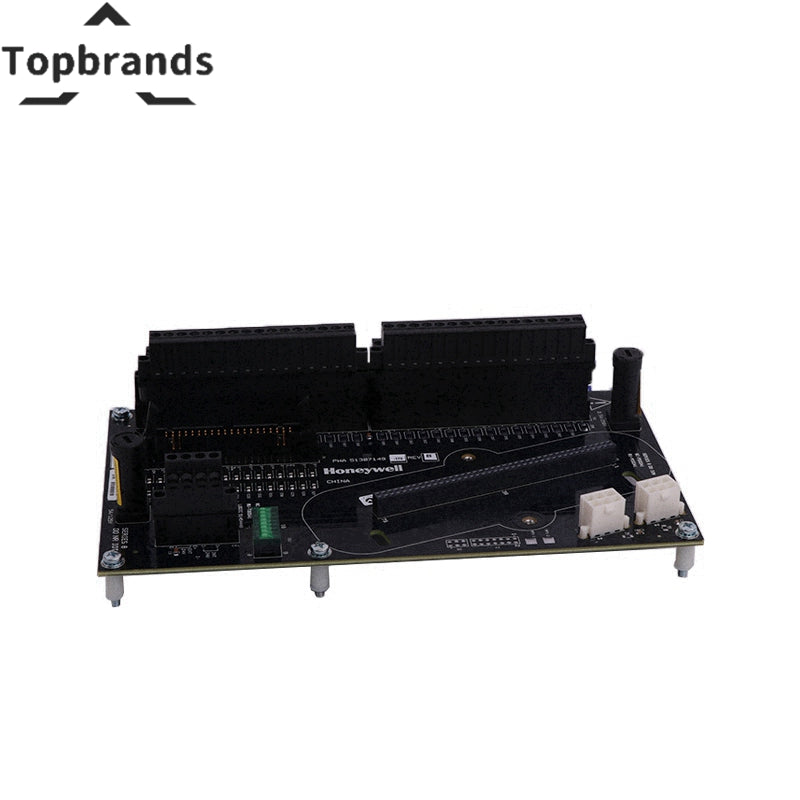

8C-TDODA1 | Honeywell | Digital Output IOTA Coated
The Honeywell 8C-TDODA1 is a digital output i/o termination assembly for Honeywell platforms. Output Channels: 32 source-type digital outputs | Rated Voltage: 24V DC | Max Load Voltage: 30V DC. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| 8C-TDODA1 | is a 32-channel digital output module designed for Experion LX systems. It provides reliable source-type outputs with configurable fault-safe behavior and advanced control modes. |
|---|---|
| Model Number | 8C-TDODA1 |
| Output Channels | 32 source-type digital outputs |
| Rated Voltage | 24V DC |
| Max Load Voltage | 30V DC |
| Max Load Current | 100mA per channel |
| Short-Circuit Protection | Yes, per channel |
| Fuse Configuration | 4 fuses (1 per 8 channels) |
| Module Current Draw | 105mA |
| Isolation | 1000V AC (system to field, with external power) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Advanced Output Modes | Supports latch, pulse, and PWM control |
| Fault-Safe Configuration | Each channel can retain last value or switch to safe state on fault |
| High Reliability | Short-circuit protection and fuse isolation enhance system safety |
| Environmental Protection | Conformal coating resists moisture, dust, and corrosion |
| Flexible Integration | Seamless with Honeywell’s modular IOTA architecture |
| Redundant Operation | Optional redundancy ensures continuous control in critical applications |
| Manufacturer | Honeywell |
| Model / SKU | 8C-TDODA1 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
How to Specify and Order a Honeywell 8C-TDODA1
Ordering the wrong industrial part because of a single-digit part number error is frustrating. The 8C-TDODA1 | Honeywell | Digital Output IOTA Coated is a digital output i/o termination assembly, and getting the exact variant matters.
Step 1: Verify the part number from your existing module label. Honeywell suffix codes define voltage, protocol, and certification.
Step 2: Confirm specs: Model Number: 8C-TDODA1
Output Channels: 32 source-type digital outputs
Rated Voltage: 24V DC
Max Load Voltage: 30V DC
Max Load Current: 100mA per channel.
Step 3: We stock this in Shenzhen. Ships within 24 hours. OEM lead times can exceed 8 weeks.
Step 4: Install with chassis powered down, grounded wrist strap, align guides gently. 12-month warranty included.
Compatible Parts — Same System
These modules share the same system family as the 8C-TDODA1. Commonly ordered together for complete rack builds or spare parts kits.
