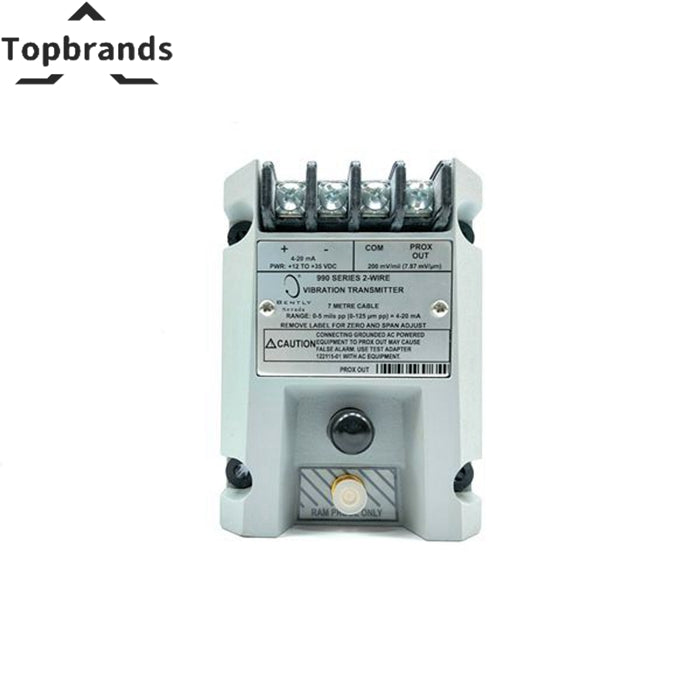

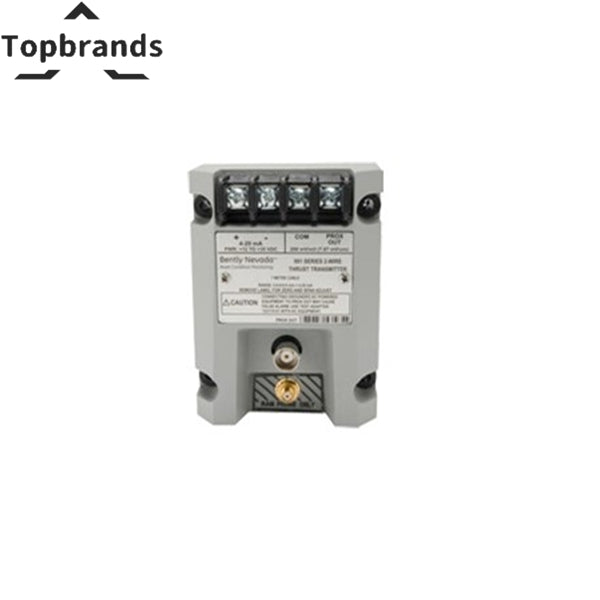

990 2-Wire Vibration Transmitter | Bently Nevada | 990-05-50-02-01
The Bently Nevada 990-05-50-02-01 is a vibration transmitter for Bently Nevada industrial automation platforms. Product Type: 990 Vibration Transmitter | Made in: U.S.A | Full-scale Option: 05 = 0-5 mils pp (0-125 µm pp). Factory-sealed, fully tested, 12-month warranty. Ships within 24 hours.
Technical Specifications
| Manufacturer | Bently Nevada |
|---|---|
| Product No. | 990-05-50-02-00 |
| Product Type | 990 Vibration Transmitter |
| Made in | U.S.A |
| Full-scale Option | 05 = 0-5 mils pp (0-125 µm pp) |
| System Length Option | 50 = 5.0 meters (16.4 feet) |
| Mounting Option | 02 = Bulkhead screws |
| Agency Approval Option | 01: A |
| Input | Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable |
| Power | Requires +12 to +35 Vdc input at the transmitter terminal |
| Operating Temperature | -35°C to +85°C (-31°F to +185°F) |
| Storage Temperature | -51°C to +100°C (-60°F to +212°F) |
| Shipping Weight | 1.5 kg |
| Model / SKU | 990-05-50-02-01 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 Sensing Principle
The Bently Nevada 990-05-50-02-01 measures machinery parameters using precision sensing technology. Non-contact measurement eliminates mechanical wear, providing consistent data over years of continuous operation.
Applications
- Vibration Monitoring: Bearing housing and shaft vibration per ISO 10816.
- Position Measurement: Axial thrust, differential expansion, rod drop.
- Speed Reference: Keyphasor pulse for synchronous sampling.
🔧 Specs & Installation
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Product No. | 990-05-50-02-00 |
| Product Type | 990 Vibration Transmitter |
| Made in | U.S.A |
| Full-scale Option | 05 = 0-5 mils pp (0-125 µm pp) |
| System Length Option | 50 = 5.0 meters (16.4 feet) |
| Mounting Option | 02 = Bulkhead screws |
| Agency Approval Option | 01: A |
Installation
- Mount rigidly — bracket resonance corrupts readings.
- Use manufacturer-specified cables only.
- Verify gap voltage/gain settings before commissioning.
- Secure connectors against vibration loosening.
📦 Shipping
24h handling. Ships with calibration data. 12-month warranty covering sensing element failure, calibration drift, connector damage.
❓ FAQ
Q: Calibration interval?
A: Annual verification recommended. Typical drift <0.5%/year.
Q: Cable length critical?
A: Yes — cable is part of calibrated system. Match original exactly.
💰 Spare Strategy
Sensors are wear items. Cable fatigue is #1 failure mode after 5-8 years. Keep one spare per measurement location on critical machines.
