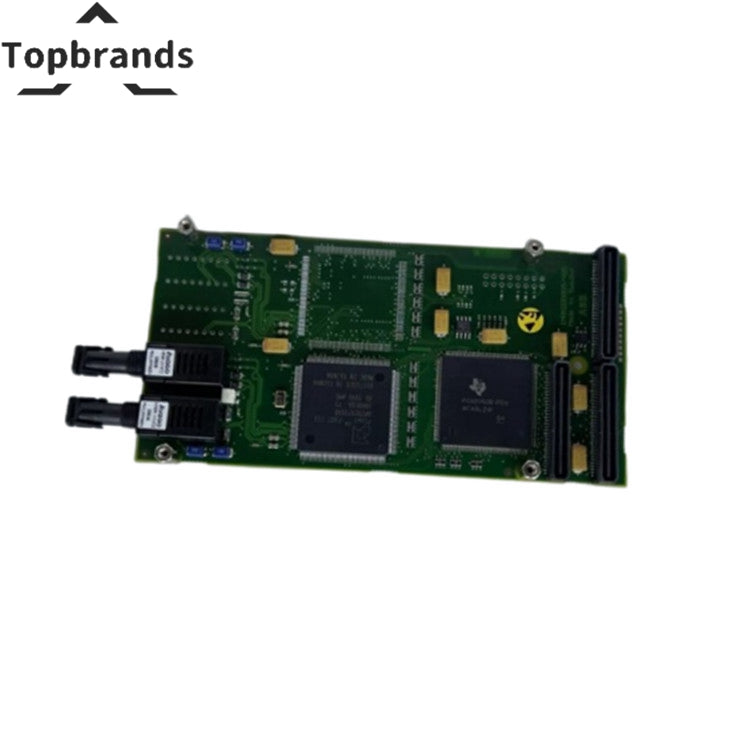

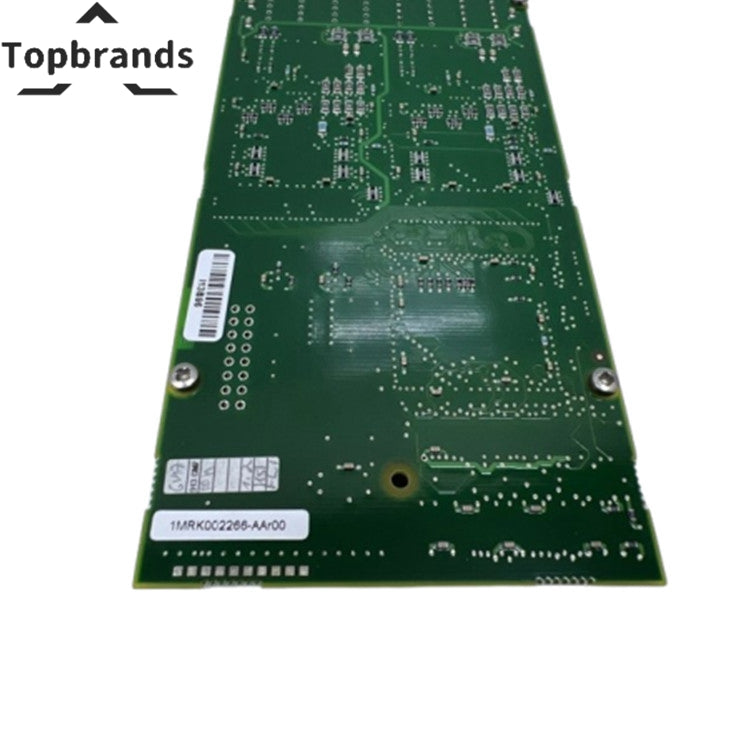

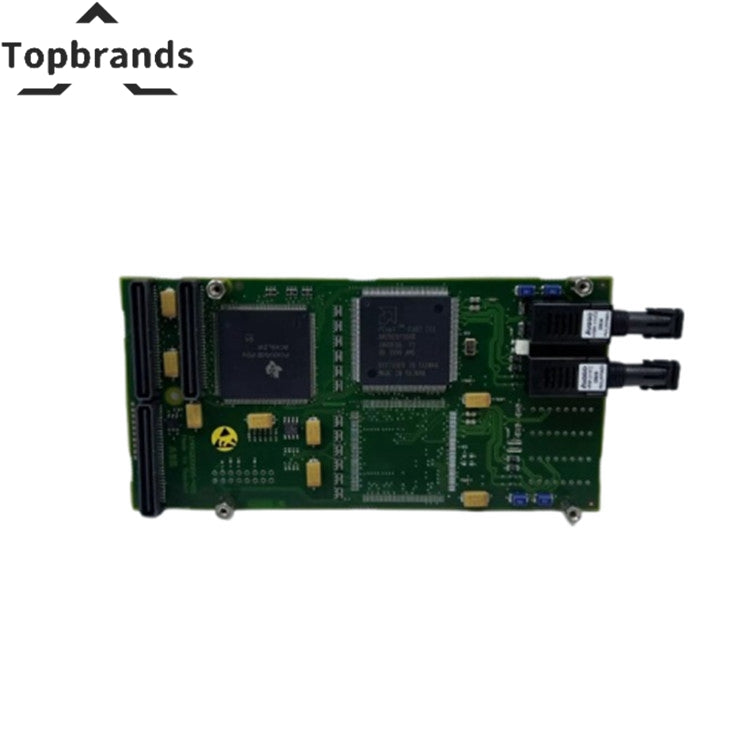

ABB | 1MRK002266-AAr00 | Optical Ethernet Module
The ABB 1MRK002266-AAr00 is a optical ethernet module for ABB platforms. Type: Optical Ethernet Module | Manufacturer: ABB | Series: Relion® protection and control systems. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| 1MRK002266‑AAr00 | Optical Ethernet Module is a robust communication interface for ABB REx670 and related relay/control platforms. It enables fiber‑optic Ethernet networking, supporting advanced protection and automation functions in critical power infrastructure. |
|---|---|
| Model | 1MRK002266‑AAr00 |
| Type | Optical Ethernet Module |
| Manufacturer | ABB |
| Series | Relion® protection and control systems |
| Function | Fiber‑optic Ethernet communication for relays and IEDs |
| Country of Origin | Sweden |
| Dimensions | ~74 mm × 370 mm × 361 mm (typical ABB module size) |
| Weight | ~1.5 kg |
| Operating Temperature | –20 °C to +70 °C |
| Compliance | CE, IEC standards for industrial networking |
| Warranty | 12 months |
| Fiber‑Optic Connectivity | Provides secure, high‑speed Ethernet communication |
| Advanced Protection Integration | Supports ABB Relion® relay systems with overcurrent, voltage, and frequency protection functions |
| Industrial Reliability | Rugged design for substations and harsh environments |
| Scalability | Multi‑port design allows expansion of communication networks |
| Seamless Integration | Compatible with ABB REx670 and other IEDs |
| Durability | Built for long‑term operation with strong environmental resistance |
| Model / SKU | 1MRK002266-AAr00 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why the 1MRK002266-AAr00 Matters
When a optical ethernet module fails in a ABB system, the consequences range from nuisance alarms to complete process shutdown. The ABB | 1MRK002266-AAr00 | Optical Ethernet Module is not a generic part you can substitute — it is engineered for a specific slot in a specific chassis with specific firmware requirements.
ABB's industrial automation portfolio spans DCS, PLC, and power electronics. This module integrates into ABB Ability System 800xA, Advant OCS, or AC 800M platforms depending on the specific series.
Here is what defines this particular module: Model: 1MRK002266‑AAr00
Type: Optical Ethernet Module
Series: Relion® protection and control systems
Function: Fiber‑optic Ethernet communication for relays and IEDs.
We stock this unit in our Shenzhen warehouse — physically, not as a virtual listing. Each one is powered up and tested before shipping, with a 48-hour burn-in at elevated temperature. If you are maintaining a ABB system with no spare modules on the shelf, we strongly recommend ordering at least one backup. The cost of the spare is negligible compared to the cost of emergency sourcing during a plant trip. 12-month warranty, ships within 24 hours.
Compatible Parts — Same System
These modules share the same system family as the 1MRK002266-AAr00. Commonly ordered together for complete rack builds or spare parts kits.
