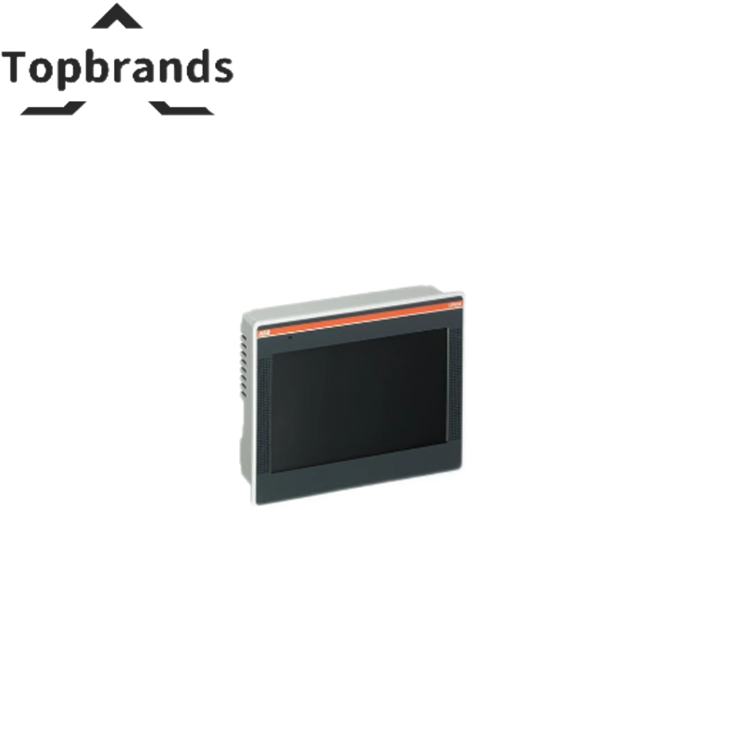

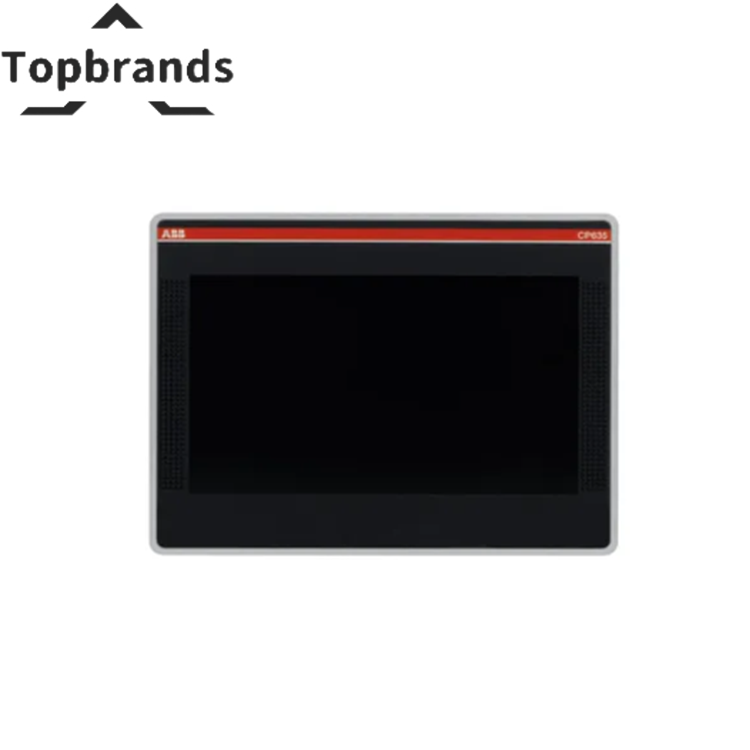

ABB 1SAP535100R0001 CP635 Control Panel Touch Screen
The ABB 1SAP535100R0001 CP635 is a control panel touch screen for ABB platforms. ABB Type Designation: CP635 | EAN: 4016779864909 | Catalog Description: 7" TFT touch screen control panel.. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Safety Component: ABB 1SAP535100R0001 CP635
Counterfeit modules in safety loops are dangerous. The ABB 1SAP535100R0001 CP635 Control Panel Touch Screen is a control panel touch screen where failure is not an option. 100% genuine ABB with documentation.
Specifications: Extended Product Type: CP635
Product ID: 1SAP535100R0001
ABB Type Designation: CP635
EAN: 4016779864909
Catalog Description: 7" TFT touch screen control panel.
IEC 61511 compliance requires maintained as-designed state. We stock ABB safety components. 12-month warranty.
Technical Specifications
| Extended Product Type | CP635 |
|---|---|
| Product ID | 1SAP535100R0001 |
| ABB Type Designation | CP635 |
| EAN | 4016779864909 |
| Catalog Description | 7" TFT touch screen control panel. |
| Long Description | CP635 is a control panel with a 7" TFT touch screen, featuring 64K colors and a resolution of 800 x 480 pixels. It comes with a PB610 runtime license. |
| Product Net Weight | 0.76 kg |
| Product Net Depth / Length | 51 mm |
| Product Net Height | 147 mm |
| Product Net Width | 187 mm |
| Function | Control panel with 7" TFT touch screen |
| Screen Size | 7 in, 16:9 wide screen |
| Screen Type | TFT color, LED backlight, touch screen |
| Screen Resolution | 800 x 480 pixels |
| Screen Color | 64K colors |
| Memory Size User Data | 128 MB |
| Memory Size User Program | 256 MB |
| Memory Type User Data | Flash Disk |
| Memory Type User Program | DDR RAM |
| Real-time Clock | Hardware clock with battery back-up |
| Front | IP66 (according to IEC 60529) |
| Housing | IP20 (according to IEC 60529) |
| Mounting Type | Front face |
| Power Supply | 24 V DC (18 ... 30 V DC) |
| Power Consumption | 16.8 W |
| Product Main Type | CP635 |
| Product Name | Control Panels |
| Programming Software | PB610 Panel Builder 600 |
| Security | Password protection with 8 user levels |
| Service Life | 40,000 hours |
| Front Side | Zamak |
| Reverse Side | Aluminium |
| SCIP | 5b70c5e1-98a2-4f22-9ad2-d8445ecf8732 (Germany - DE) |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer | ABB |
| Model / SKU | 1SAP535100R0001 CP635 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
