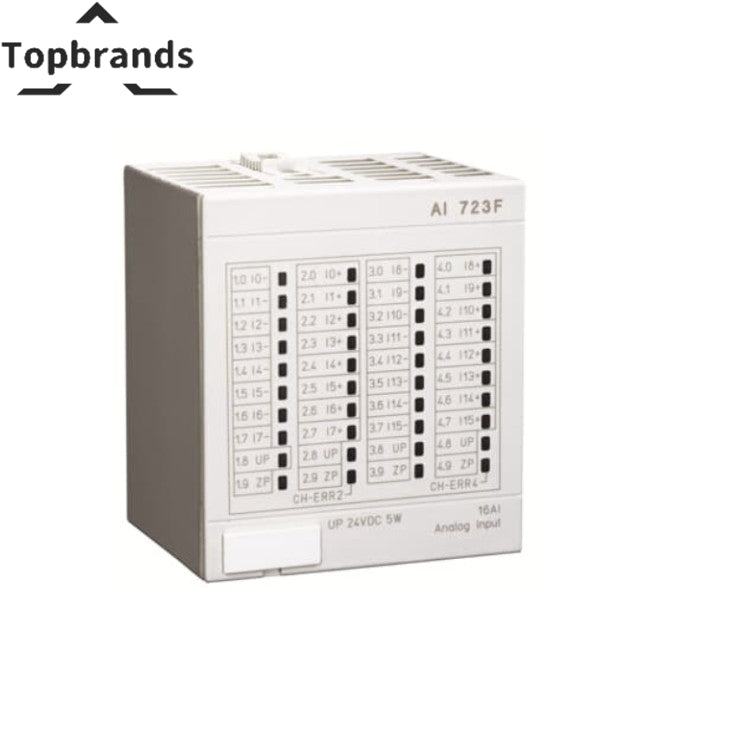

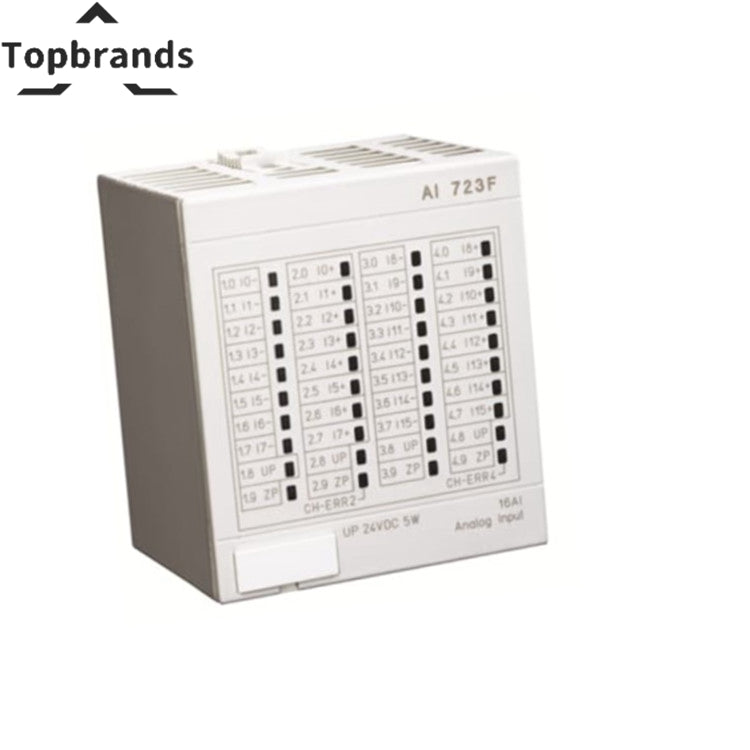

ABB | 3BDH000376R0005 AI 723F Analog Input Module
SKU: AI723F In Stock
ABBAnalog Input Module
The ABB AI723F is a analog input module for ABB platforms. Manufacturer: ABB | Product Family: Freelance Control Hardware | Product Type: Analog Input Module. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24h.
Technical Specifications
| AI 723F | Analog Input Module |
|---|---|
| (3BDH000376R0005) | is a compact I/O unit designed for ABB Freelance control systems. It provides 16 configurable input channels for precise measurement of voltage, current, or temperature signals, ensuring flexibility in process automation applications. |
| Manufacturer | ABB |
| Product Family | Freelance Control Hardware |
| Product Type | Analog Input Module |
| Number of Channels | 16 (two groups, individually configurable) |
| Supported Signals | ±10 V, 0/4–20 mA, 24 VDC, Pt100, Pt1000, Ni1000 |
| Resolution | 12-bit + sign, supports 2/3-wire connections |
| Compatible Terminals | TU 715 F / TU 716 F |
| Dimensions | 76 mm (depth) × 54 mm (height) × 68 mm (width) |
| Net Weight | 0.15 kg |
| HS Code | 85389099 |
| RoHS Compliance | EU Directive 2011/65/EU + Amendment 2015/863 |
| Replaced Product ID | 3BDH000376R0001 |
| WEEE Category | 5 (Small Equipment, no external dimension >50 cm) |
| Multi-Signal Capability | Handles voltage, current, and temperature inputs for diverse automation needs |
| High Accuracy | 12-bit resolution ensures precise and stable data acquisition |
| Flexible Configuration | Each channel can be set independently to match application requirements |
| Compact Design | Lightweight and space-efficient for control cabinet installation |
| System Integration | Fully compatible with ABB Freelance systems, PROFIBUS slave, and direct I/O setups |
| Durability | Built to ABB’s industrial standards for long-term reliability |
| Q: Can the AI 723F Rev. B replace the older AI 723F module? | A: Yes, it directly replaces |
| 3BDH000376R0001 | with improved compliance and updated design. |
| Q: What sensors are supported? | A: It supports Pt100, Pt1000, Ni1000 RTDs, voltage ±10 V, and current 0/4–20 mA. |
| Model / SKU | AI723F |
Request a Quote — AI723F
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Category: abb other seriesactive productsanalog i o modulesfactory newvoltage 24vdcprotocol profibusfunction redundant modulesindustry process controlindustry data acquisitionabball
Filter by Specification:
Genuine ABB — Tested
Live-rack test, channel verification, 48h burn-in at 55C. Printed test report. 12-month warranty. Ships within 24h.
