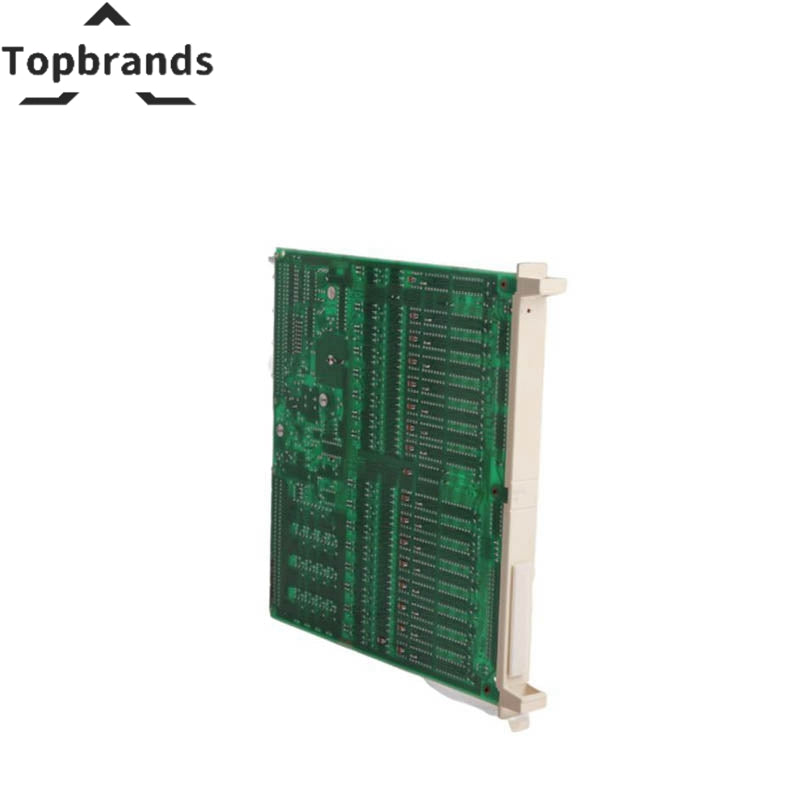

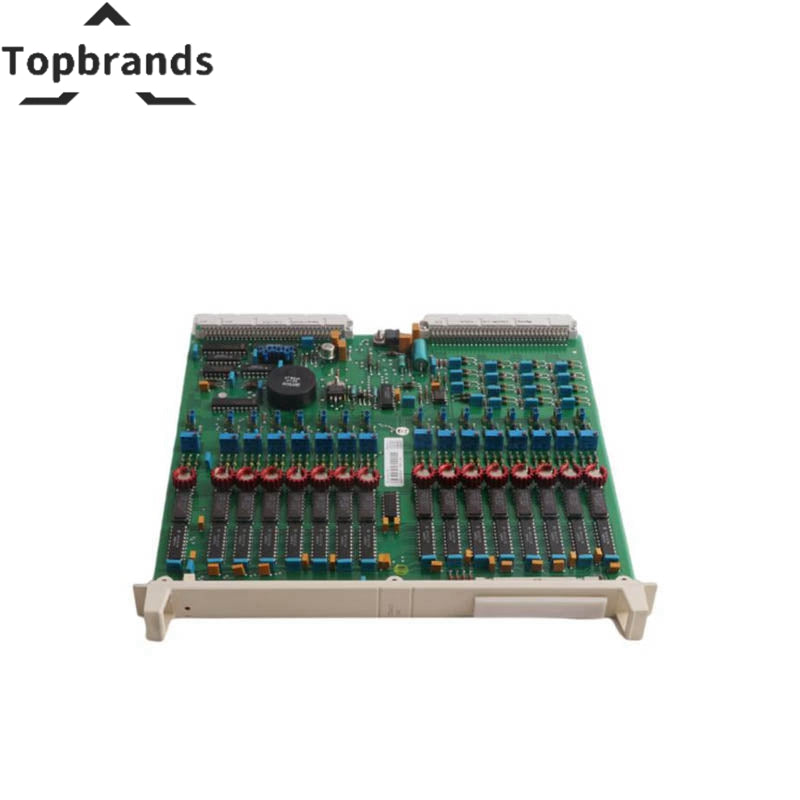

ABB DSAO 120A 3BSE018293R1 8-channel Analog Output Board
The ABB DSAO120A-3BSE018293R1 is a analog output board for ABB platforms. Model: DSAO 120A | Product Type: I‑O_Module | Catalog Description: Analog Output Board, 8 channels. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| DSAO 120A 3BSE018293R1 | is an 8‑channel analog output board for Advant Master process control systems. It provides reliable analog signal generation for actuators and instrumentation, ensuring precise process control. |
|---|---|
| Product ID | 3BSE018293R1 |
| Model | DSAO 120A |
| Product Type | I‑O_Module |
| Catalog Description | Analog Output Board, 8 channels |
| Function | Analog output signal generation for process control |
| Channels | 8 analog outputs |
| Net Weight | 0.372 kg |
| Customs Tariff Number | 85389091 |
| HS Code | 853890 |
| Country of Origin | Sweden |
| RoHS Compliance | Exempt from EU Directive 2011/65/EU (RoHS) under Article 2(4)(c),(e),(f),(j) |
| WEEE Category | 5 (Small Equipment, no external dimension >50 cm) |
| Battery Information | None (0 batteries) |
| SCIP Reference | fc782cde‑38bb‑4056‑a3f2‑28a7277ecf1e |
| Multi‑Channel Output | Provides 8 analog outputs for flexible process control applications |
| Reliable Signal Generation | Ensures stable analog outputs for actuators, drives, and instrumentation |
| Advant Master Integration | Designed for ABB Advant Master process control systems |
| Compact Form Factor | Slim 27 mm height for efficient cabinet installation |
| Industrial Reliability | Built for continuous operation in demanding automation environments |
| Regulatory Exemption | Exempt from RoHS scope under EU Directive 2011/65/EU |
| Environmental Compliance | Meets WEEE requirements for sustainable deployment |
| Manufacturer | ABB |
| Model / SKU | DSAO120A-3BSE018293R1 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why I/O Module Configuration Matters
The ABB DSAO120A-3BSE018293R1 is an I/O module that handles signal conversion between field devices and the control system. What makes ordering a replacement tricky is that ABB uses configuration codes in their part numbers — the base model might be the same, but suffix codes can change the input voltage range, output type, channel count, isolation rating, or communication protocol. Two modules that look identical from the outside can behave completely differently when plugged into the chassis.
Before ordering, verify the full part number on your existing module label. Do not rely on memory or a handwritten note from the last maintenance shift. Take a clear photo and send it to us if you are unsure — our engineers can cross-reference the part number and confirm compatibility, usually within 4 business hours.
Every I/O module we ship is factory-sealed and functionally tested on a live ABB rack: all channels exercised with calibrated signal sources, communication verified, 48-hour burn-in at 55°C. Printed test report included. 12-month warranty. Worldwide shipping within 24 hours.
