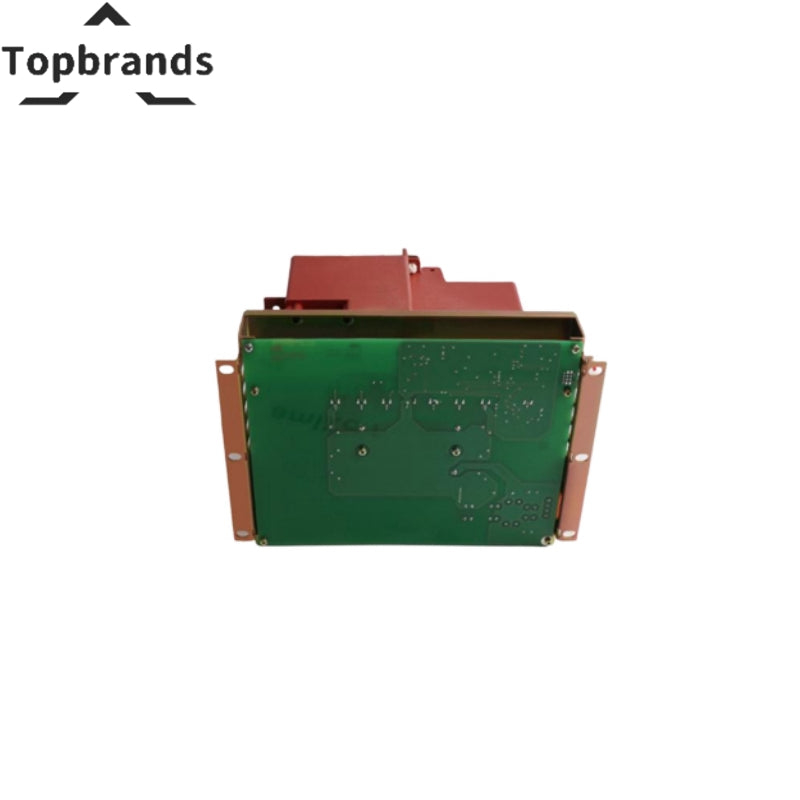

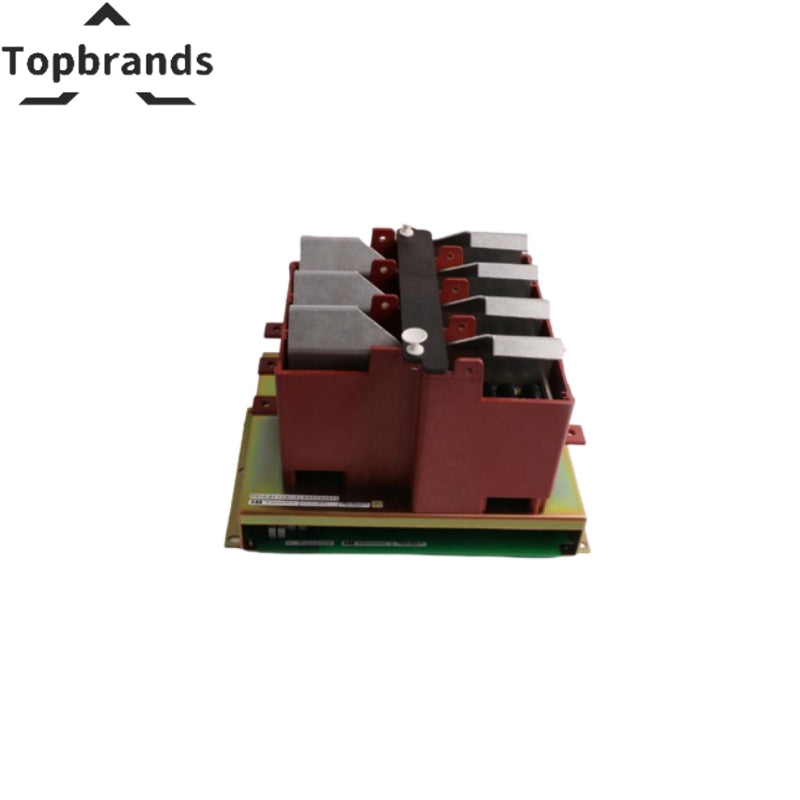

ABB KU C755 AE106 3BHB005243R0106 Digital Output Module
The ABB 3BHB005243R0106 is a digital output module for ABB platforms. Function: Digital output module | Manufacturer: ABB | Number of Outputs: 16 (likely relay outputs). Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Part Number | 3BHB005243R0106 |
|---|---|
| Type Designation | KUC755AE106 |
| Function | Digital output module |
| Manufacturer | ABB |
| Number of Outputs | 16 (likely relay outputs) |
| Output Voltage | 24 VDC (typical for relay outputs) |
| Output Current | 2 A per output (typical) |
| Isolation | Electrical isolation between channels for safety |
| Diagnostics | LED status indicators for each output |
| Communication | May support fieldbus communication (e.g., PROFIBUS, Modbus) |
| Mounting | DIN rail mounting |
| Environmental Conditions | Designed for industrial environments with wide operating temperature ranges |
| Model / SKU | 3BHB005243R0106 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why I/O Module Configuration Matters
The ABB 3BHB005243R0106 is an I/O module that handles signal conversion between field devices and the control system. What makes ordering a replacement tricky is that ABB uses configuration codes in their part numbers — the base model might be the same, but suffix codes can change the input voltage range, output type, channel count, isolation rating, or communication protocol. Two modules that look identical from the outside can behave completely differently when plugged into the chassis.
Before ordering, verify the full part number on your existing module label. Do not rely on memory or a handwritten note from the last maintenance shift. Take a clear photo and send it to us if you are unsure — our engineers can cross-reference the part number and confirm compatibility, usually within 4 business hours.
Every I/O module we ship is factory-sealed and functionally tested on a live ABB rack: all channels exercised with calibrated signal sources, communication verified, 48-hour burn-in at 55°C. Printed test report included. 12-month warranty. Worldwide shipping within 24 hours.
Compatible Parts — Same System
These modules share the same system family as the 3BHB005243R0106. Commonly ordered together for complete rack builds or spare parts kits.
