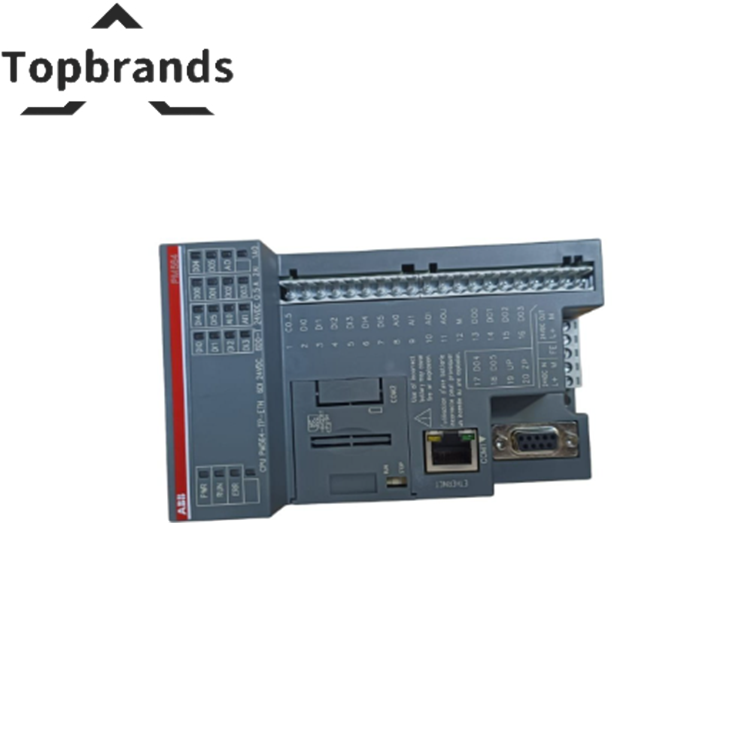

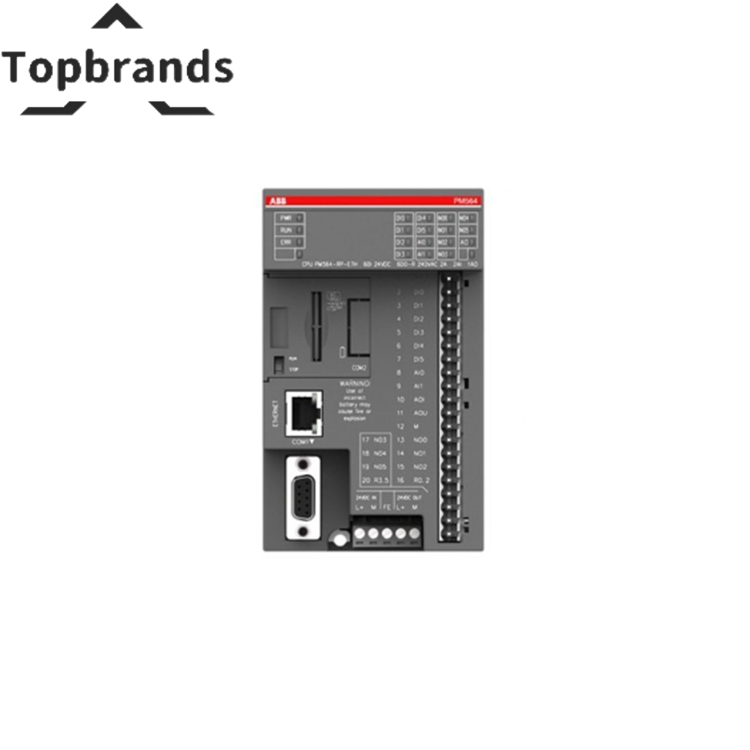

ABB PM564 AC500-eCo Series Processor Module
The ABB PM564 is a processor module for ABB platforms. Analog Inputs/Outputs: 2 analog inputs (AI) and 1 analog output (AO) | Communication Ports: 1 RS485 port and 2 option slots for additional communication modules | Ethernet Interface: Available in specific models (e.g., PM564-TP-ETH, PM564-RP-ETH). Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Memory | 128 kB for program and data storage |
|---|---|
| Digital Inputs/Outputs | 6 digital inputs (DI) and 6 digital outputs (DO) |
| Analog Inputs/Outputs | 2 analog inputs (AI) and 1 analog output (AO) |
| Communication Ports | 1 RS485 port and 2 option slots for additional communication modules |
| Ethernet Interface | Available in specific models (e.g., PM564-TP-ETH, PM564-RP-ETH) |
| Power Supply | 24V DC or 100-240V AC depending on the model |
| Operating Voltage | 24V DC or 100-240V AC |
| Current Consumption | Varies by model (e.g., PM564-TP: 210 mA, PM564-TP-ETH: 220 mA) |
| Temperature Range | -20°C to 60°C |
| Certifications | CE, UL, and other relevant industrial standards |
| Product Net Weight | 0.287 kg |
| Product Net Depth / Length | 74 mm |
| Product Net Height | 135 mm |
| Product Net Width | 82 mm |
| Gross Weight | 0.449 kg |
| Manufacturer | ABB |
| Model / SKU | PM564 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Safety Component: ABB PM564
Counterfeit modules in safety loops are dangerous. The ABB PM564 AC500-eCo Series Processor Module is a processor module where failure is not an option. 100% genuine ABB with documentation.
Specifications: Memory: 128 kB for program and data storage
Digital Inputs/Outputs: 6 digital inputs (DI) and 6 digital outputs (DO)
Analog Inputs/Outputs: 2 analog inputs (AI) and 1 analog output (AO)
Communication Ports: 1 RS485 port and 2 option slots for additional communication modules
Ethernet Interface: Available in specific models (e.g., PM564-TP-ETH, PM564-RP-ETH)
IEC 61511 compliance requires maintained as-designed state. We stock ABB safety components. 12-month warranty.
Compatible Parts — Same System
These modules share the same system family as the PM564. Commonly ordered together for complete rack builds or spare parts kits.
