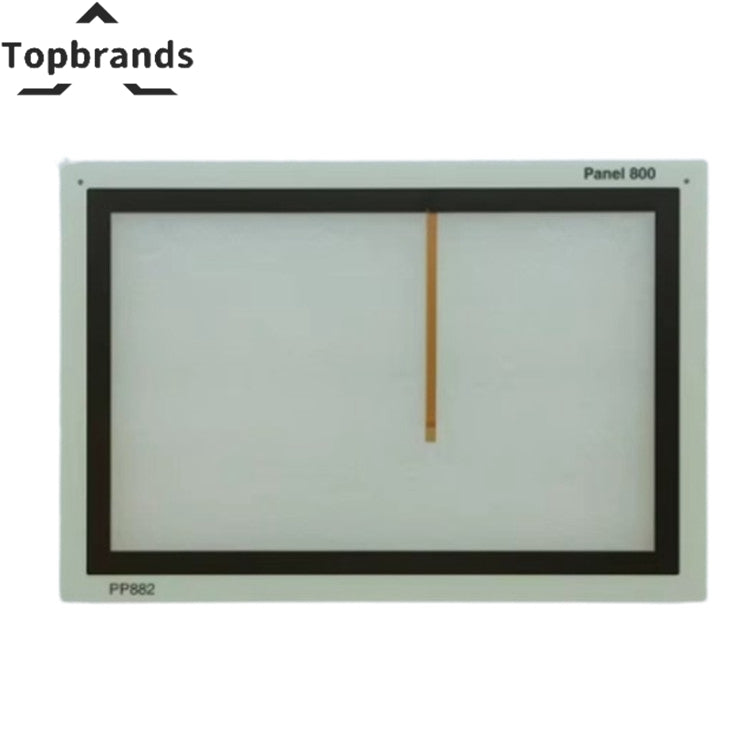

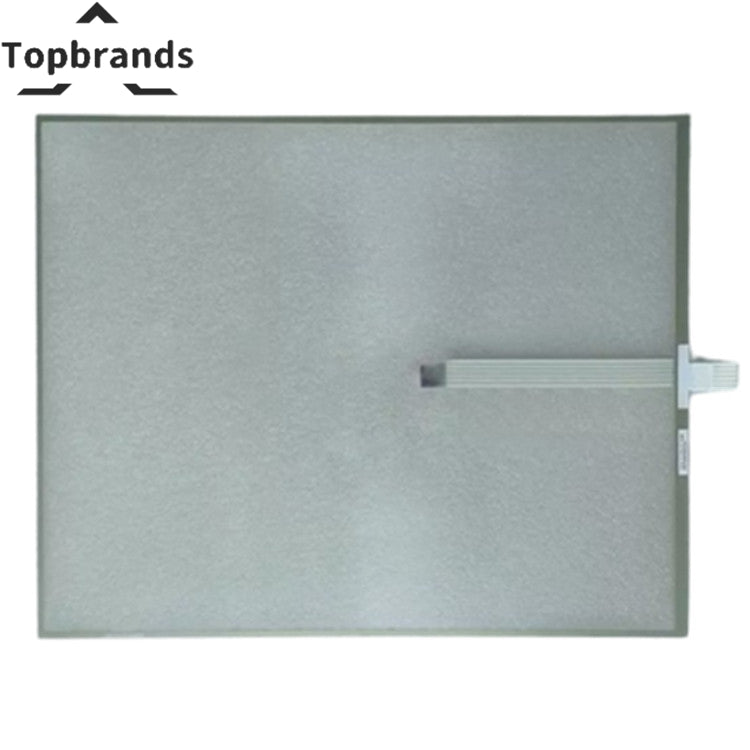

ABB PP885R 3BSE069296R1 Rugged Marine Touch Panel
The ABB 3BSE069296R1 is a rugged marine touch panel for ABB platforms. Type: Rugged Marine Touch Panel | Display Size: 15-inch TFT LCD (typical) | Resolution: 1024 × 768 pixels (XGA). Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24h.
Technical Specifications
| ABB PP885R 3BSE069296R1 | is a ruggedized marine-grade touch panel engineered for demanding offshore and shipboard environments. Designed to withstand vibration, humidity, and salt-laden air, it provides reliable operator interface functionality for ABB control systems in marine and industrial applications. |
|---|---|
| Manufacturer | ABB |
| Type | Rugged Marine Touch Panel |
| Display Size | 15-inch TFT LCD (typical) |
| Resolution | 1024 × 768 pixels (XGA) |
| Touch Technology | Resistive touch screen for glove operation |
| Input Voltage | 24 VDC |
| Operating Temperature | -15°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Protection Rating | IP65 front panel (marine-grade sealing) |
| Mounting | Panel mount, suitable for bridge and engine room installations |
| Certifications | Marine approvals (DNV GL, ABS, Lloyd’s Register) |
| Weight | ~6 kg |
| Marine-Grade Design | Built to resist vibration, humidity, and salt corrosion |
| High Visibility | Bright TFT LCD for clear viewing in varying light conditions |
| Touch Operation | Resistive technology allows use with gloves in harsh environments |
| Reliable Integration | Compatible with ABB control and automation systems |
| Compact Form Factor | Space-efficient design for bridge consoles and control panels |
| Global Approvals | Certified for use in marine and offshore installations |
| PP885R | is ideal for ship bridges, engine control rooms, offshore platforms, and other marine environments requiring rugged operator interfaces. |
| Model / SKU | 3BSE069296R1 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
The ABB 3BSE069296R1 is a rugged marine touch panel that serves as a critical component in ABB automation systems. Whether you are replacing a failed unit, building a spare parts inventory, or sourcing for a planned system expansion, understanding the exact specifications of this module is essential to ensuring compatibility and reliable operation.
Type: Rugged Marine Touch Panel. Display Size: 15-inch TFT LCD (typical). Resolution: 1024 × 768 pixels (XGA). These are not generic specifications — they define how this specific module variant is configured and how it will behave in your system. ABB uses suffix codes in part numbers to indicate configuration options such as voltage range, communication protocol, channel count, and certification status. Two modules with the same base number but different suffix codes can be completely incompatible.
Every module we ship undergoes functional verification on a live ABB rack: power-up with correct backplane voltage, all channels exercised with calibrated signal sources, communication ports verified, and 48 hours of continuous operation at 55°C ambient to catch early-life failures. A printed test report with serial number, test date, technician ID, and all measured values accompanies every shipment. Genuine ABB. 12-month warranty. Ships within 24 hours from Shenzhen via DHL, FedEx, or UPS.
How do I confirm this is the correct part for my system?
Match the full part number from the label on your existing module — not just the base model number, but every suffix character. The suffix codes define critical configuration options. If you are unsure, send us a clear photo of the existing module label. Our engineers will cross-reference the part number and confirm compatibility, typically within 4 business hours.
What warranty and shipping options are available?
12-month comprehensive warranty covering component failure under normal operating conditions. Advance replacement available for critical applications — we ship the replacement before receiving the returned unit. Standard shipping: DHL Express, FedEx Priority, or UPS Worldwide Express. Handling time: within 24 hours of confirmed payment. Typical delivery: 3-5 business days worldwide. Customs documentation included.
What testing has been performed on this unit?
Visual inspection for physical damage or tampering. Power-up on a live {vendor} rack with correct backplane voltage. All channels exercised with calibrated signal sources (where applicable). Communication ports verified. 48 hours of continuous operation at 55°C ambient temperature. A printed test report with serial number, test date, and all measured values is included with every shipment.
Compatible Parts — Same System
These modules share the same system family as the 3BSE069296R1. Commonly ordered together for complete rack builds or spare parts kits.
