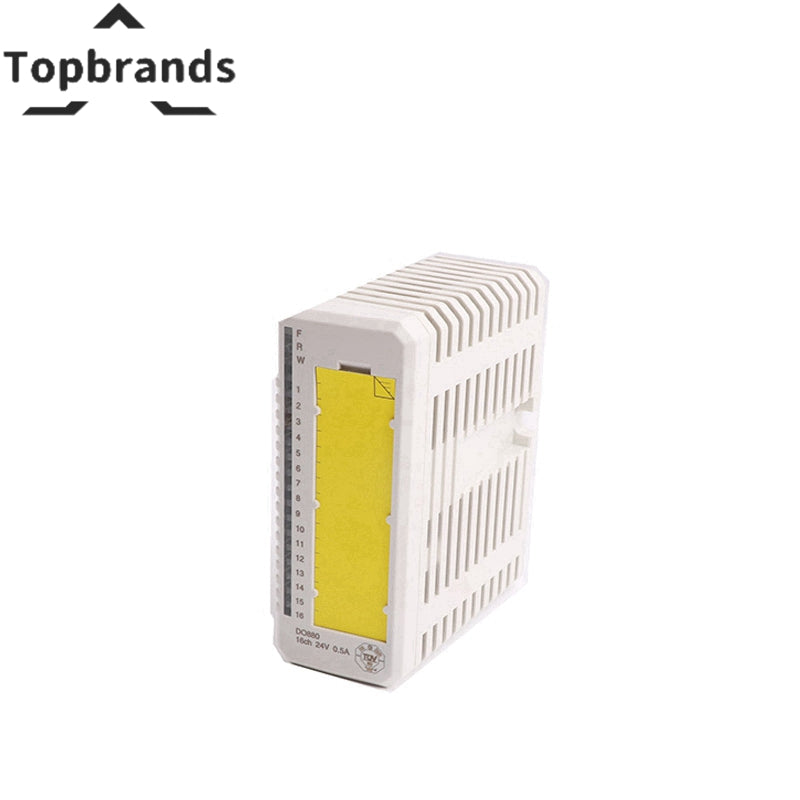

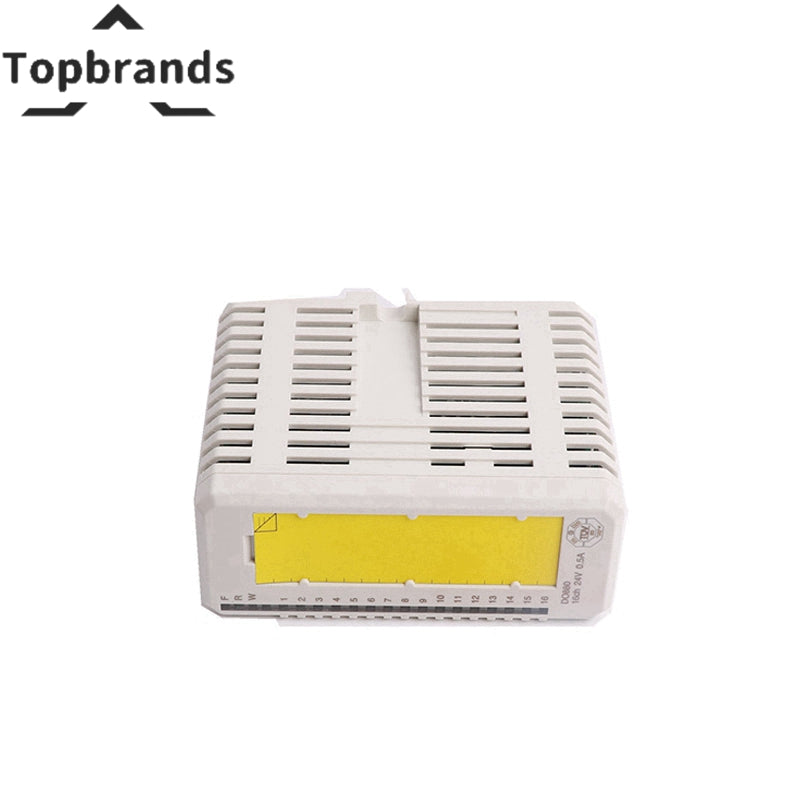

ABB S800 I/O Series DO818 3BSE069053R1 Digital Output Module
The ABB DO818-3BSE069053R1 is a digital input module for ABB industrial automation platforms. Type Designation: DO818 | Catalog Description: DO818 Digital Output 24V 32 ch | Medium Description: Isolated in two groups of 16 channels, 0.5A, short circuit proof. Factory-sealed, fully tested, 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| DO818 | is a digital output module with 32 channels, designed for 24V applications. It provides isolated outputs in two groups of 16 channels, ensuring reliable signal control with built-in short circuit protection. |
|---|---|
| Product ID | 3BSE069053R1 |
| Type Designation | DO818 |
| Catalog Description | DO818 Digital Output 24V 32 ch |
| Medium Description | Isolated in two groups of 16 channels, 0.5A, short circuit proof |
| Product Type | I-O_Module |
| HS Code | 853890 |
| Customs Tariff Number | 85389099 |
| Dimensions | Depth 102 mm, Height 119 mm, Width 45 mm |
| Net Weight | 0.2 kg |
| Channel Type | DO (Digital Output) |
| Number of Output Channels | 32 |
| Module Termination Units | TU818, TU819, TU830 required |
| High Channel Density | Provides 32 digital outputs for flexible system integration |
| Isolation Groups | Outputs divided into two groups of 16 channels for enhanced reliability |
| Short Circuit Proof | Built-in protection ensures safe operation under fault conditions |
| Compact Design | Slim profile for efficient installation in control cabinets |
| System Compatibility | Designed for ABB S800 I/O systems with TU818, TU819, TU830 termination units |
| Compliance | RoHS compliant, WEEE Category 5 (small equipment) |
| Durability | Industrial-grade construction for long-term use in automation environments |
| Manufacturer | ABB |
| Model / SKU | DO818-3BSE069053R1 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
The DO818-3BSE069053R1: Real-World Reliability
It is always the same story: 2 AM, the control system alarms, and the spare parts cabinet is empty. The ABB DO818-3BSE069053R1 — a digital input module — is the component that failed. Now you are calling suppliers, hoping someone has stock and can ship today.
That is the scenario we built PLC Parts Direct to solve. We stock the DO818-3BSE069053R1 in our Shenzhen warehouse — physically, not virtually. When you order, our team picks it from the shelf, verifies the serial number against the test report, packs it in anti-static packaging, and hands it to DHL. You get a tracking number, not a processing status that drags on for weeks.
What you are getting: product id: 3BSE069053R1; type designation: DO818; catalog description: DO818 Digital Output 24V 32 ch; medium description: Isolated in two groups of 16 channels, 0.5A, short circuit proof. Every unit undergoes multi-point functional verification and 48-hour burn-in at 55°C before shipping. A printed test report is included. For chemical processing applications where reliability is everything, we recommend keeping one cold spare of each critical module type. The cost of the spare is negligible compared to the cost of unplanned downtime.
