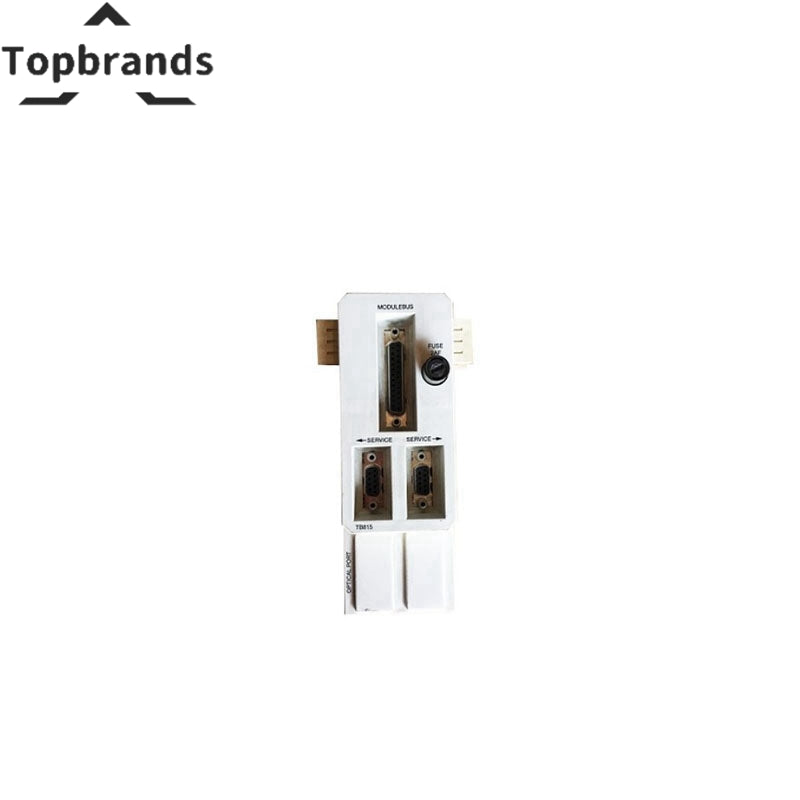

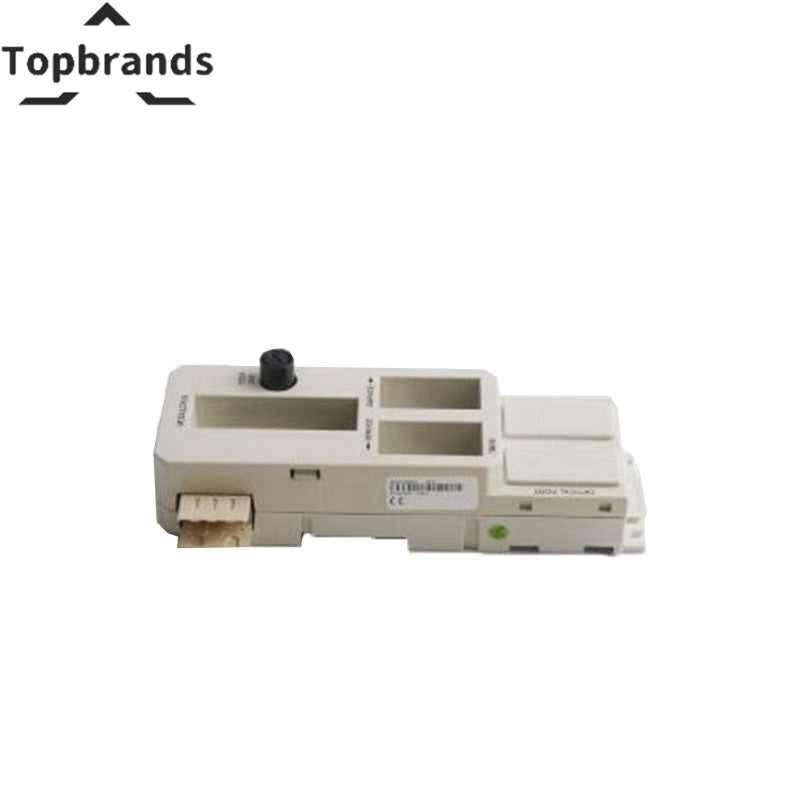

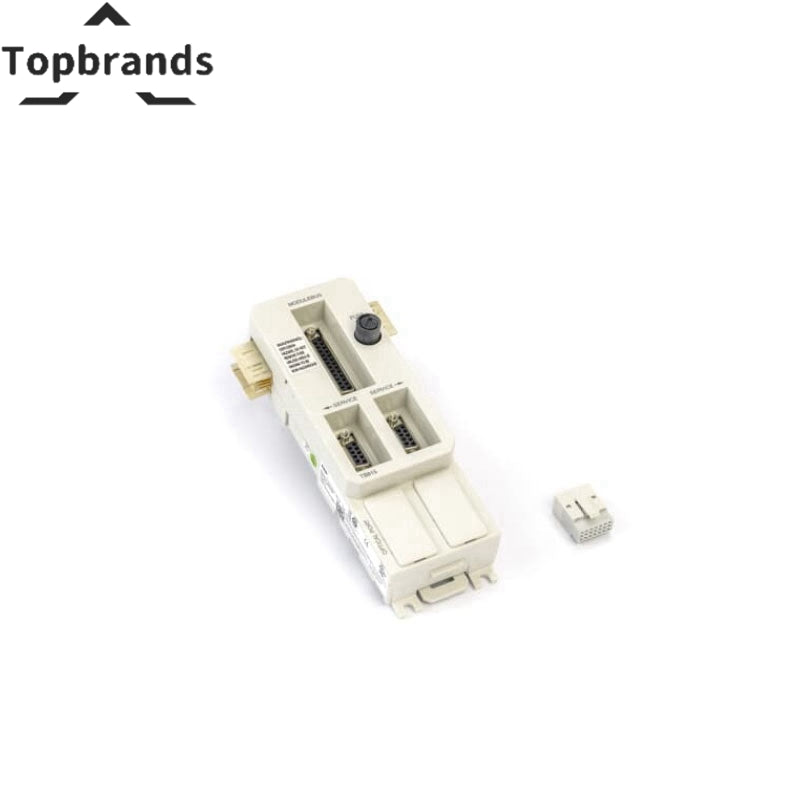

ABB | S800 I/O System | TB840A 3BSE037760R1 | Modulebus
The ABB 3BSE037760R1 is a modulebus for ABB platforms. Line Redundancy: Yes | Module Redundancy: Yes | Hot Swap: Yes. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Communication Protocol | Modulebus |
|---|---|
| Master or Slave | Slave |
| Line Redundancy | Yes |
| Module Redundancy | Yes |
| Hot Swap | Yes |
| Used Together with HI Controller | Yes |
| CE Marking | Yes |
| Electrical Safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine Certificates | ABS, BV, DNV-GL, LR |
| Temperature, Operating | 0 to +55 °C (+32 to +131 °F); Approvals are issued for +5 to +55 °C |
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
| Pollution Degree | Degree 2, IEC 60664-1 |
| Corrosion Protection | ISA-S71.04: G3 |
| Relative Humidity | 5 to 95 %, non-condensing |
| Max Ambient Temperature | 55 °C (131 °F); For vertical mounting 40 °C (104 °F) |
| Width | 54 mm (2.13 in.) |
| Height | 119 mm (4.69 in.) |
| Depth | 96 mm (3.78 in.) |
| Weight | 0.2 kg (0.44 lbs) |
| Manufacturer | ABB |
| Model / SKU | 3BSE037760R1 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
ABB 3BSE037760R1 Overview
The ABB | S800 I/O System | TB840A 3BSE037760R1 | Modulebus is a modulebus for ABB platforms.
Specifications:
Communication Protocol: Modulebus
Master or Slave: Slave
Line Redundancy: Yes
Module Redundancy: Yes
Hot Swap: Yes
Factory-sealed. Full verification: live-rack power-up, signal injection, comm port check, 48-hour burn-in at 55C. Printed test report. Worldwide shipping within 24 hours. 12-month warranty.
