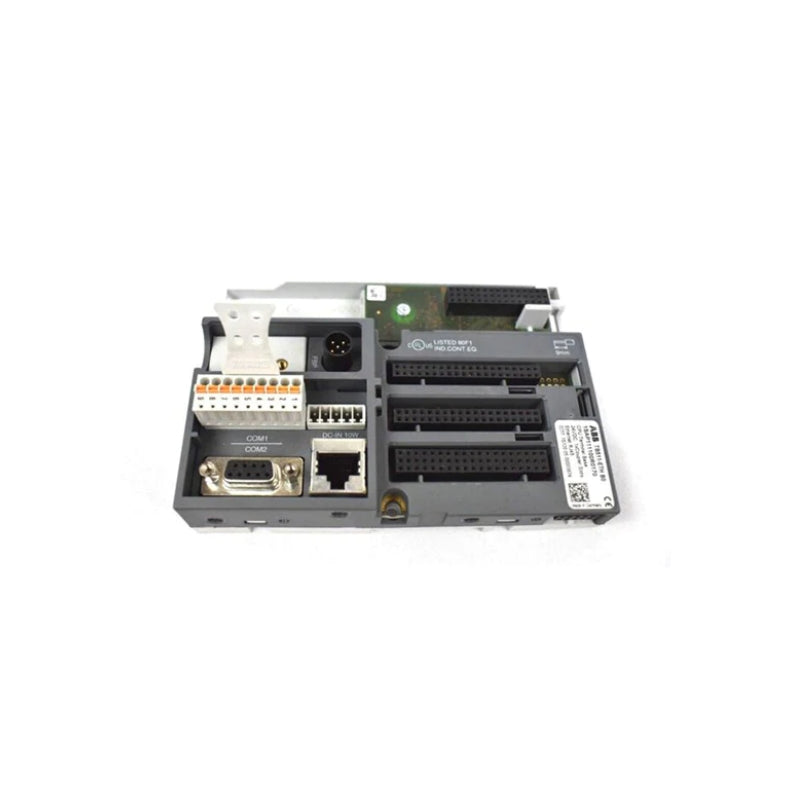

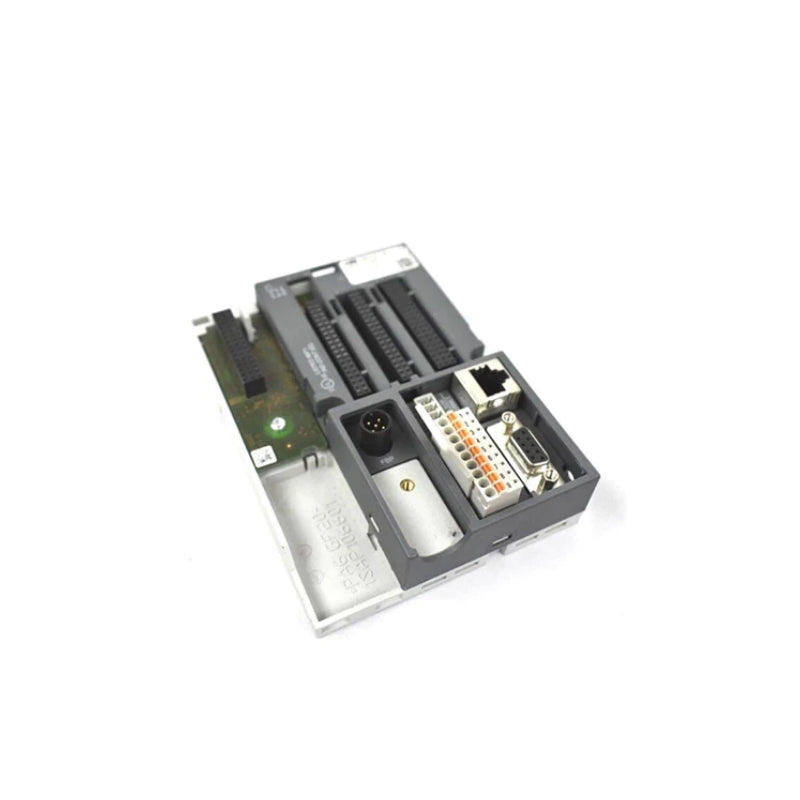

ABB TB511-ETH 3ABD10058694 Terminal Base
Automation does not wait. The ABB TB511-ETH is a terminal base in our Shenzhen warehouse right now. Type Designation: TB511-ETH | Product ID: 3ABD10058694 | Product Type: PLC-AC500 Terminal Base. Verified before packing. 12-month warranty.
Technical Specifications
| TB511-ETH 3ABD10058694 | is a terminal base module for AC500 V2 PLC systems. It provides one slot for communication modules, an Ethernet interface, and two serial interfaces (RS232/RS485), ensuring flexible connectivity in industrial automation. |
|---|---|
| Manufacturer | ABB |
| Type Designation | TB511-ETH |
| Product ID | 3ABD10058694 |
| Product Type | PLC-AC500 Terminal Base |
| Interfaces | Ethernet, RS232, RS485 |
| Slot | 1 slot for communication module |
| Net Dimensions | 28 mm (depth) × 135 mm (height) × 95.5 mm (width) |
| Net Weight | 0.159 kg |
| Gross Weight | 0.215 kg |
| Package Dimensions | 147 × 78 × 40 mm |
| Customs Tariff Number | 85044040 |
| UNSPSC | 32151700 |
| Condition | New, not made to order |
| Replacement Product ID | 3ABD00029571 |
| Ethernet Connectivity | Provides reliable communication for AC500 PLC systems. |
| Dual Serial Interfaces | Supports RS232 and RS485 for versatile industrial integration. |
| Modular Design | One slot available for communication module expansion. |
| Compact Size | Lightweight and space-efficient for control cabinet installation. |
| Industrial Reliability | Built for continuous operation in demanding automation environments. |
| Lifecycle Support | Replacement product available (3ABD00029571) for long-term system compatibility. |
| Model / SKU | TB511-ETH |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Buying a ABB TB511-ETH: What to Look For
Ordering industrial spare parts is not like online shopping. When you need a terminal base for your ABB system, getting the wrong variant can mean days of additional downtime. Here is how to get it right the first time.
Match the exact part number. ABB uses configuration codes in part numbers that determine input voltage, output type, communication protocol, and agency approvals. Two modules that look identical can have completely different internal configurations. Always match the full part number — not just the base model. Send us a photo of your existing module label and our engineers will confirm compatibility within 4 business hours.
Know what you are buying. manufacturer: ABB; type designation: TB511-ETH; product id: 3ABD10058694; product type: PLC-AC500 Terminal Base. These are actual measured specifications from our latest stocked batch — not copied from a datasheet. Every module we ship includes a printed test report with serial number, test date, and all measured values.
Plan ahead. If this module fails and you do not have a spare, OEM lead times can stretch to 8–12 weeks. We ship within 24 hours from stock. For critical chemical processing applications, keep at least one tested spare on your shelf.
