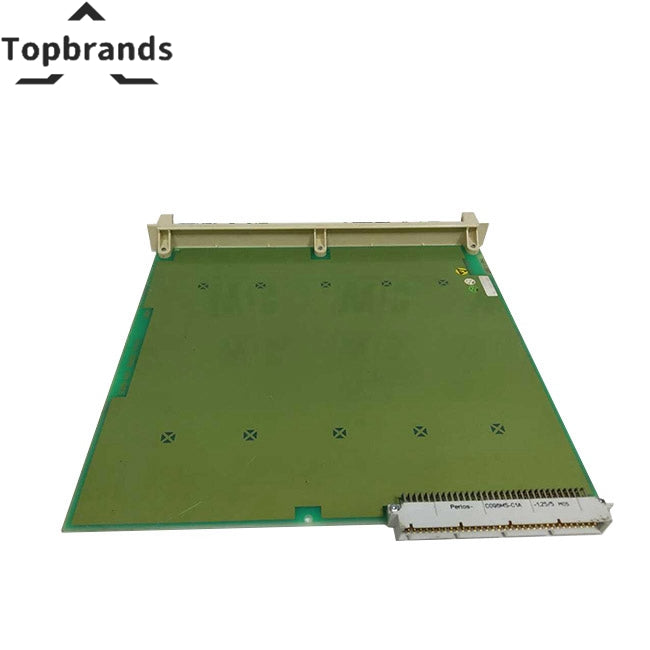

AFO4LE 1KHL015545R0001 | ABB | Compact Module | Brand New
The ABB 1KHL015545R0001 is a compact module for ABB platforms. Type: Analog Output Module | Output Channels: 4 channels | Signal Range: 4–20 mA / 0–10 V configurable. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| ABB AFO4LE (1KHL015545R0001) | is an analog output module designed for ABB control and automation systems. It provides reliable signal conversion and output for process control applications, ensuring precise regulation of actuators and field devices. |
|---|---|
| Manufacturer | ABB |
| Type | Analog Output Module |
| Output Channels | 4 channels |
| Signal Range | 4–20 mA / 0–10 V configurable |
| Resolution | 12–16 bit (depending on system configuration) |
| Power Supply | 24 VDC standard module supply |
| Dimensions | Compact design for cabinet installation |
| Weight | Approx. 0.5 kg |
| System Compatibility | ABB Symphony Plus / AC800M series |
| Lifecycle Status | Active spare part with ABB global support |
| Multi-Channel Output | Provides four independent analog outputs for flexible control. |
| High Accuracy | Ensures precise signal conversion for demanding process applications. |
| Configurable Ranges | Supports both current and voltage outputs. |
| Industrial Durability | Built for continuous operation in harsh environments. |
| System Integration | Seamlessly integrates with ABB Symphony Plus and AC800M systems. |
| Compact & Lightweight | Easy installation with minimal cabinet space requirements. |
| Global Support | Backed by ABB’s worldwide service and spare parts availability. |
| Model / SKU | 1KHL015545R0001 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Power Supply Testing Under Load
The ABB 1KHL015545R0001 is tested on a live chassis: all output rails verified at nominal and peak current, ripple measured, protection circuits checked. 48-hour burn-in at 55C. Printed test report. Keep a spare — one power supply failure takes down the entire rack. 12-month warranty. Ships within 24 hours.
Compatible Parts — Same System
These modules share the same system family as the 1KHL015545R0001. Commonly ordered together for complete rack builds or spare parts kits.
