Yokogawa

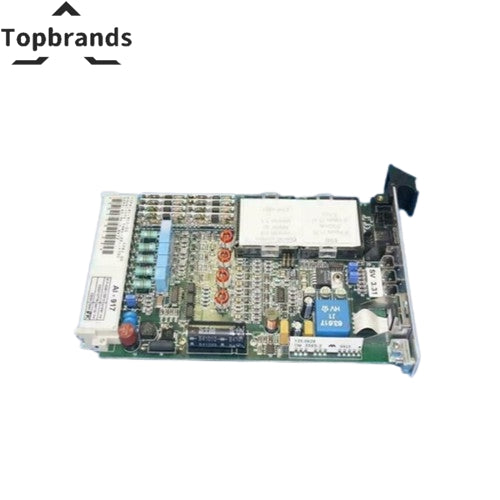

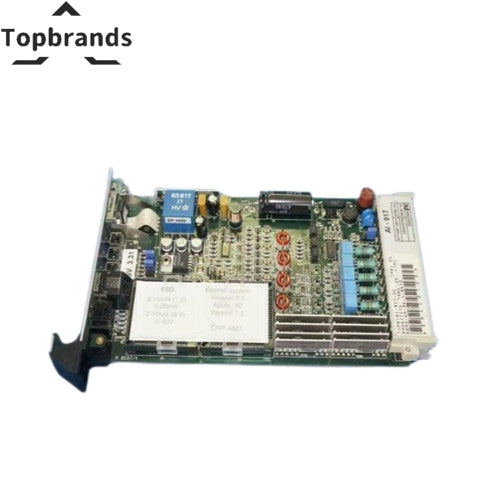

AI-917-00 | Yokogawa | Analogue Input Module (2x 0-20 mA, 2x 0-10 V)
SKU: AI-917-00 In Stock
Analogue Input ModuleYokogawa
The Yokogawa AI-917-00 is a analogue input module for Yokogawa platforms. Size: Single Euro format 4TE (160x100x20 mm) | Connector: DIN 41612 Bauform F 48p | Identification: AI-917 on front. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| No. of inputs | 4 |
|---|---|
| No. of outputs | 4 |
| Size | Single Euro format 4TE (160x100x20 mm) |
| Connector | DIN 41612 Bauform F 48p |
| Identification | AI-917 on front |
| Temperature (working) | -10 to +60 °C |
| Temperature (storage) | -25 to +85 °C |
| Relative humidity | Max. 75%, no condensation |
| EMI | NAMUR AK, EMV DIN IEC 801-2-5 |
| Shock | 15g, 11 ms |
| Vibration | 10-55 Hz 0.075 mm, 57-150 Hz 1 g (0.076-0.011 mm) |
| Current | 0 - 20 mA, 50 Ω (max. 50 mA) |
| Voltage | 0 - 10 V, 5.5 kΩ (max. 30 V) |
| Switches | 3, partly programmable |
| Stability error | < 0.1% / 10°C |
| Accuracy | ± 0.2% ± 1 bit |
| Resolution | 1024 points over 21.6 mA / 10.8 V (10 bits) |
| LED test | 18-30 V / 3.5-6 mA |
| Clock | Clock pulses from MC-573, level 0/11 V |
| Pulse logic | Current pulses 500 mA |
| Capacity | 10 unit loads |
| Status indication | Programmable LEDs |
| Data | 8 bits serial data, level 0/11 V |
| Display | LCD, programmable, 2 rows |
| RS232 serial interface | For programming only (adapter cable necessary) |
| Start-up time | 8 s |
| Program cycle | 40 ms (program dependent) |
| Propagation Delay | Programmable |
| Field supply | 18-30 Vdc (ripple < 1 V top-top), 70 mA (24 V) |
| Logic supply | 20 Vdc, 10 mA |
| Clock signal | A voltage pulse |
| Analog circuit | 0.5 kV (test) |
| Power dissipation | 2 W |
| Manufacturer | Yokogawa |
| Model / SKU | AI-917-00 |
Request a Quote — AI-917-00
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Category: yokogawa other seriesyokogawaactive productsanalog i o modulesfactory newprotocol serial communicationchannels 4 channeltemp standard temptemp high tempall
Filter by Specification:
Genuine Yokogawa — Functionally Tested
Live-rack power-up, channel verification, 48-hour burn-in at 55C. Printed test report. 12-month warranty. Ships within 24 hours.
