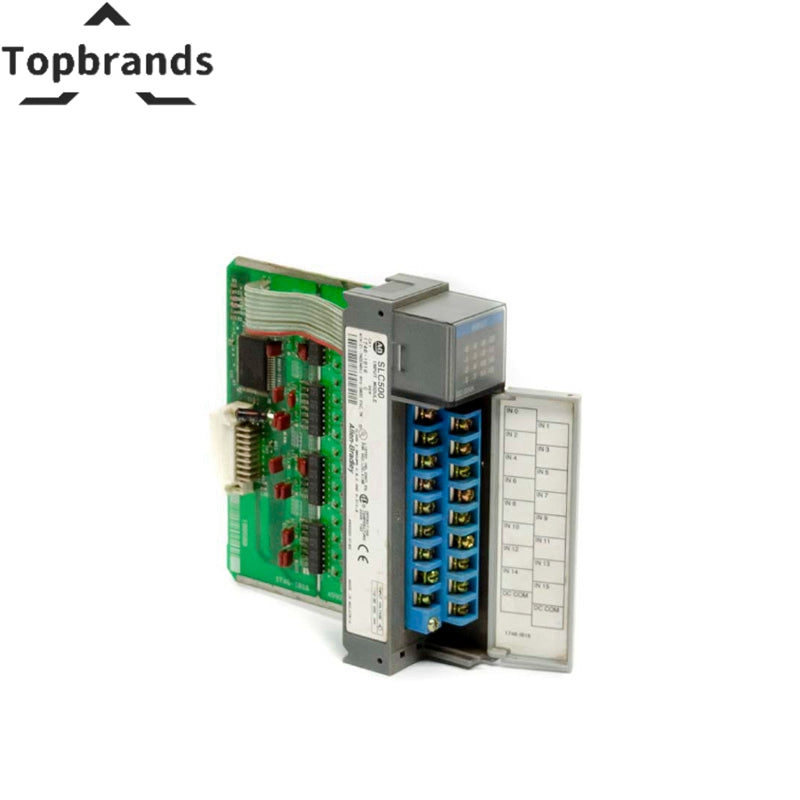

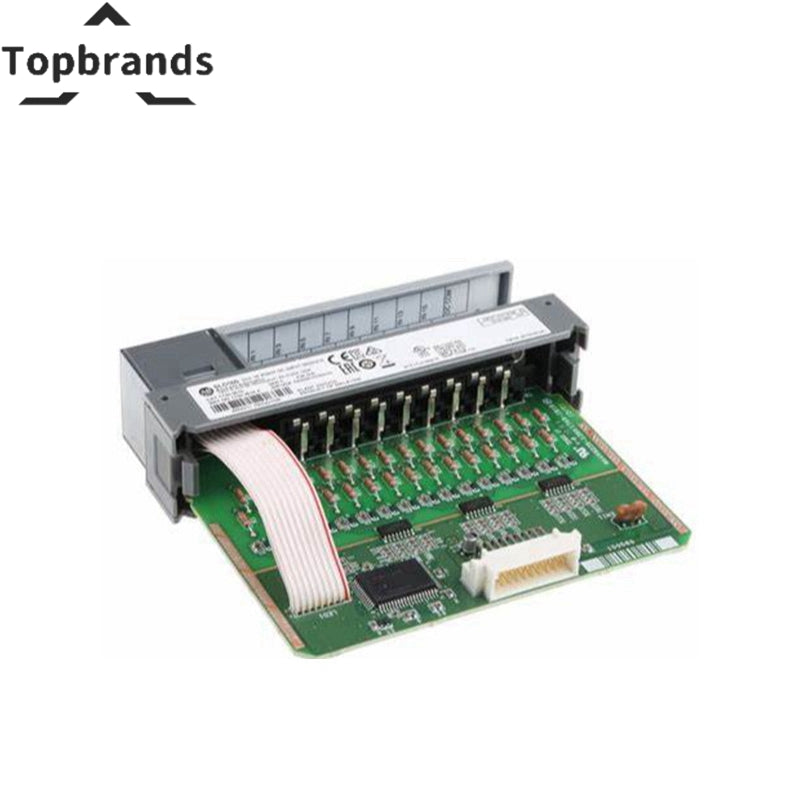

Allen-Bradley | 1746-IB16 | SLC 500 Digital I/O Modules | Brand New
The Allen-Bradley 1746-IB16 is a digital i/o modules for Allen-Bradley industrial automation platforms. Number of Inputs: 16 | Points Per Common: 16 | Operating Voltage: 10...30V DC (sinking). Factory-sealed, fully tested, 12-month warranty. Ships within 24 hours.
Technical Specifications
| Product Type | SLC 500 Digital I/O Modules |
|---|---|
| Voltage Category | 24V DC signal input (sinking) |
| Number of Inputs | 16 |
| Points Per Common | 16 |
| Operating Voltage | 10...30V DC (sinking) |
| Backplane Current Consumption @ 5V DC | 0.050 A |
| Off-State Voltage, Maximum | 5.0V DC |
| Off-State Current, Maximum | 1 mA |
| Input Current, Nominal | 8 mA @ 24V DC |
| Manufacturer | Allen-Bradley |
| Model / SKU | 1746-IB16 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Understanding the Allen-Bradley 1746-IB16
If you maintain Allen-Bradley systems, you know that not all replacement parts are created equal. The 1746-IB16 is a digital i/o modules engineered specifically for Allen-Bradley automation platforms. The aftermarket is flooded with modules that look identical on the outside but use inferior components internally. product type: SLC 500 Digital I/O Modules; voltage category: 24V DC signal input (sinking); number of inputs: 16; points per common: 16. We have tested clone modules side-by-side with genuine Allen-Bradley units — the clones typically fail within 3–6 months in continuous industrial service, sometimes taking out the backplane with them.
Every 1746-IB16 we sell is 100% genuine Allen-Bradley, with the manufacturer serial number and holographic label intact. We source from authorized distribution channels and decommissioned system tear-downs with full traceability documentation.
Before inserting this module, power down the chassis completely. Allen-Bradley modules are generally not hot-swappable. Verify backplane voltage with a calibrated multimeter before insertion. After installation, power up and verify the status LED shows normal operation before returning the system to service. Run the manufacturer diagnostic routine if available.
