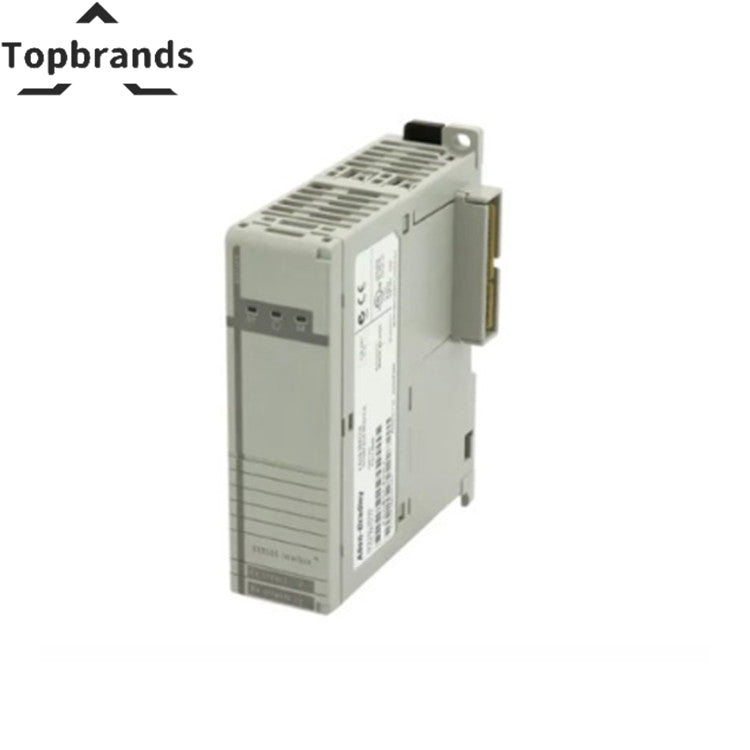

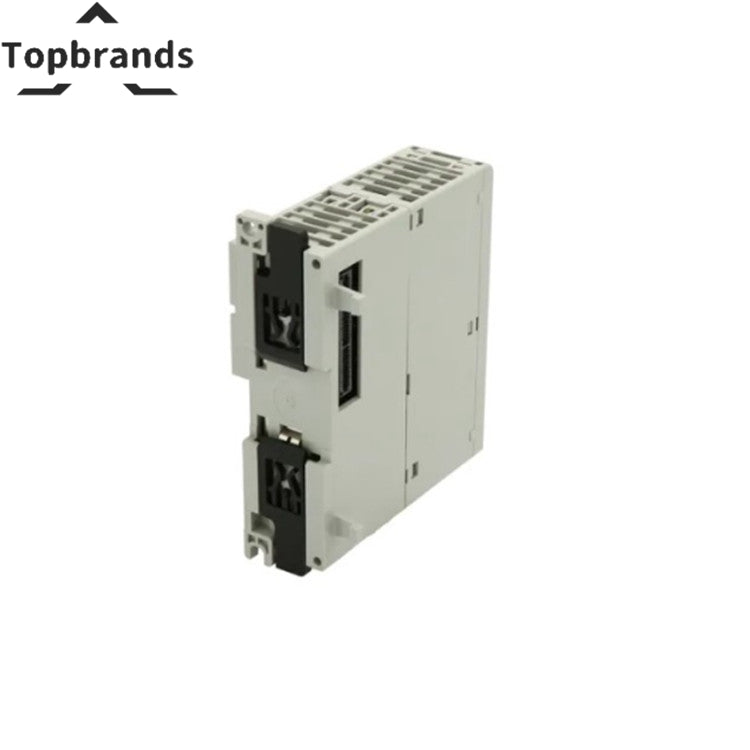

Allen-Bradley 1768-M04SE CompactLogix SERCOS interface Module
The Allen-Bradley 1768-M04SE is a compactlogix sercos interface module for Allen-Bradley platforms. Dimensions (HxWxD): : | Metric (Approx.): : | Imperial (Approx.): :. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Backplane Current | 969 mA @ 5.2V DC |
|---|---|
| Connections Consumed | 3 |
| Dimensions (HxWxD) | : |
| Metric (Approx.) | : |
| Imperial (Approx.) | : |
| Fiber Optic Bend Radius | : |
| Fiber Optic Cable Attenuation | : |
| Fiber Optic Cladding Diameter | : |
| Fiber Optic Connector | F-SMA standard screw-type connector |
| Fiber Optic Core Diameter | : |
| Fiber Optic Operating Temperature | : |
| Fiber Optic Transmission Range | : |
| Mounting Screw Torque | 1.16 Nm (10 lb-in.), using M4 or #8 screws |
| Number of Axes per Module, Max | 4 drives and 2 auxiliary feedback axes |
| Power Dissipation | 5.04 W |
| Power Supply Distance Rating | 2 (Keep the module within 2 slots from the power supply) |
| SERCOS Class | Class B (Position or Velocity) |
| SERCOS Data Rate | 4 M or 8 M |
| SERCOS Operating Cycle | : |
| Weight | : |
| Manufacturer | Allen-Bradley |
| Model / SKU | 1768-M04SE |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
The Power Supply Rule: One Spare Per Rack
Power supplies fail more often than any other module type — not because they are poorly made, but because electrolytic capacitors have a finite life that shortens with temperature. The Allen-Bradley 1768-M04SE is the power supply for your Allen-Bradley rack. We test every unit on a live chassis under load: voltage regulation, ripple, efficiency, protection circuits verified. 48-hour burn-in at 55°C. Printed test report.
For critical systems, the cost of one spare power supply is negligible compared to one unplanned rack outage. 12-month warranty. Ships within 24 hours.
Compatible Parts — Same System
These modules share the same system family as the 1768-M04SE. Commonly ordered together for complete rack builds or spare parts kits.
