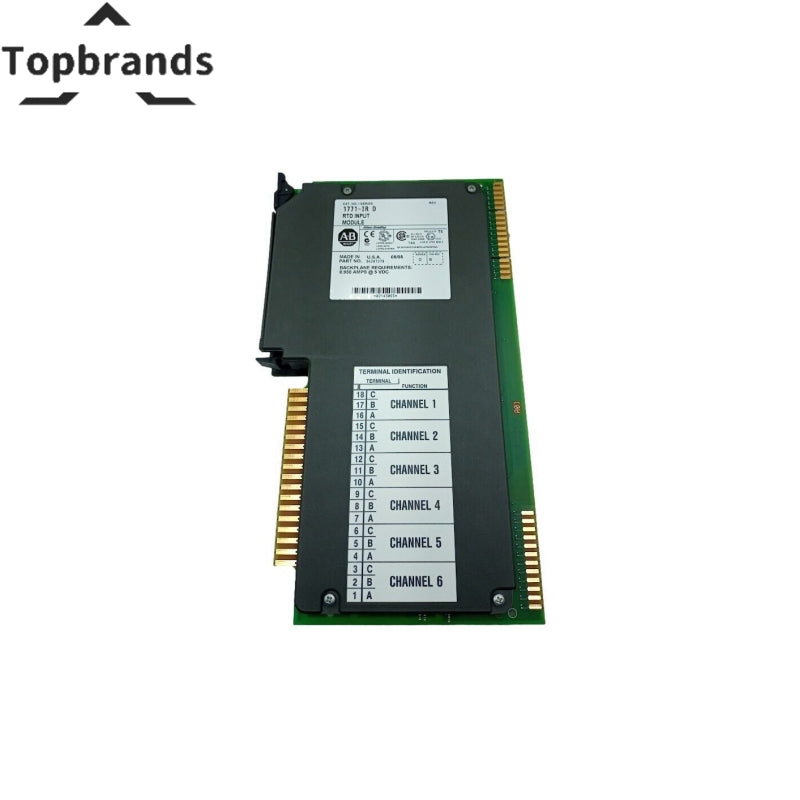

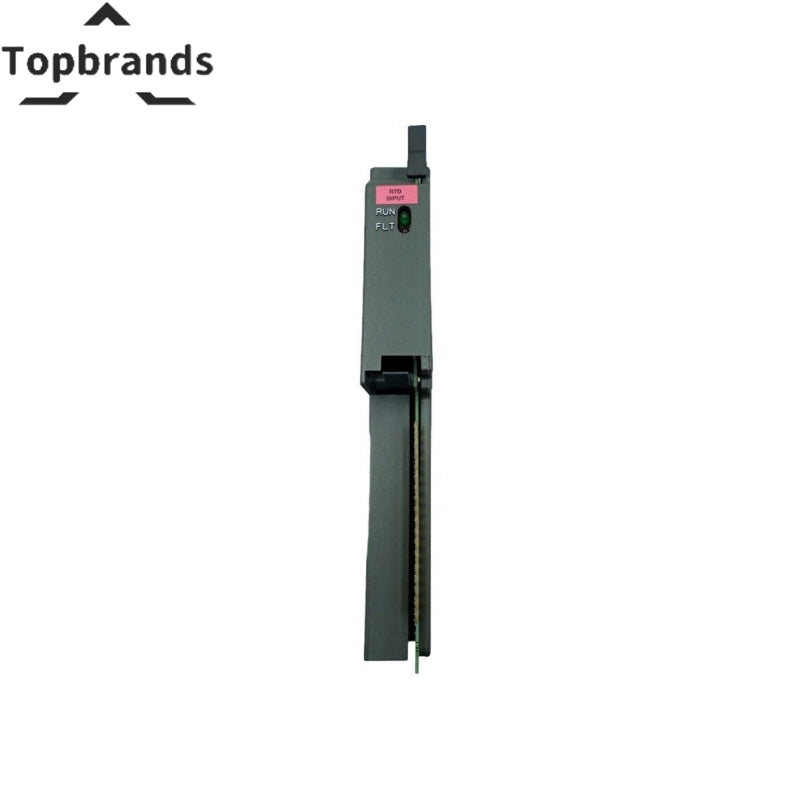

Allen-Bradley 1771-IR RTD Input Module 100% Genuine New
The Allen-Bradley 1771-IR is a rtd input module for Allen-Bradley platforms. Units of Measure: : | Temperature Range: : | Resistance Range: 1.00 to 600.00 ohms. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Module Location | 1771 I/O Chassis |
|---|---|
| Sensor Type | : |
| Units of Measure | : |
| Temperature Range | : |
| Resistance Range | 1.00 to 600.00 ohms |
| Resolution | : |
| Sensor Excitation | 1mA constant current source supplied by module |
| Common Mode Rejection | 120dB @ 60Hz up to 1000V peak |
| Common Mode Impedance | Greater than 10 megohms |
| Normal Mode Rejection | 100dB @ 60Hz |
| Input Overvoltage Protection | 120V RMS continuous |
| Open RTD Response Time | : |
| Scan Time | 50ms for 8 channels |
| Isolation Voltage | Meets or exceeds UL Standard 508 and CSA Standard C22.2 No. 142 |
| Backplane Current | 950mA at 5V |
| Power Dissipation | 4.75W max |
| Thermal Dissipation | 16.2 BTU/hr |
| Environmental Conditions | : |
| Temperature Coefficient | 4.50ppm/°C of full scale range |
| Keying | Between 10 and 12; between 28 and 30 |
| Field Wiring Arm Cat No. | 1771-WF |
| Wiring Arm Screw Torque | 7-9 inch-pounds |
| Manufacturer | Allen-Bradley |
| Model / SKU | 1771-IR |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why We Test Every Module — Not Just Look at It
In the surplus market, "tested" is a word that gets stretched. We define it clearly for the Allen-Bradley 1771-IR: power-up on a live Allen-Bradley rack, all channels exercised with calibrated sources, communication ports verified, 48 hours of continuous operation at 55°C. A printed test report with serial number, test date, and measured values accompanies every shipment. This is what real testing looks like — not a visual inspection, not a "light comes on" check.
Factory-sealed. Genuine Allen-Bradley with full traceability. 12-month warranty. Ships within 24 hours from Shenzhen via DHL, FedEx, or UPS.
