Allen-Bradley | ControlLogix | 1794-TBNF | Terminal Base Unit

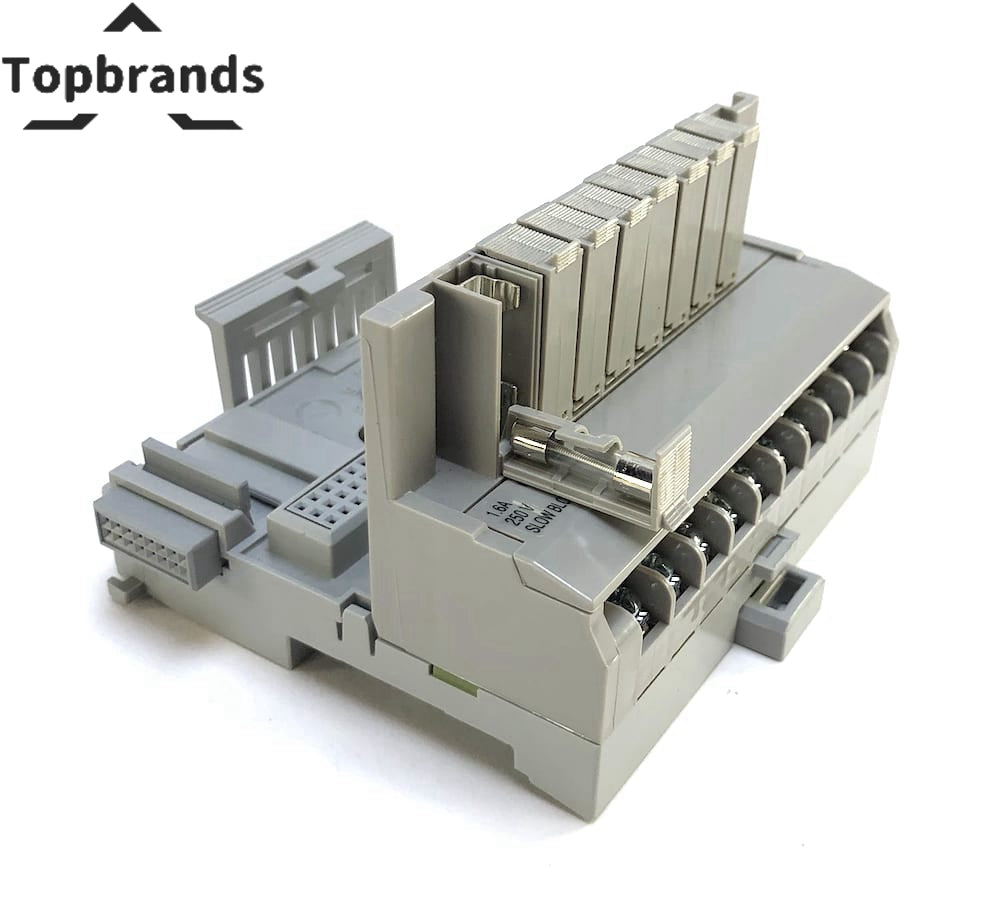

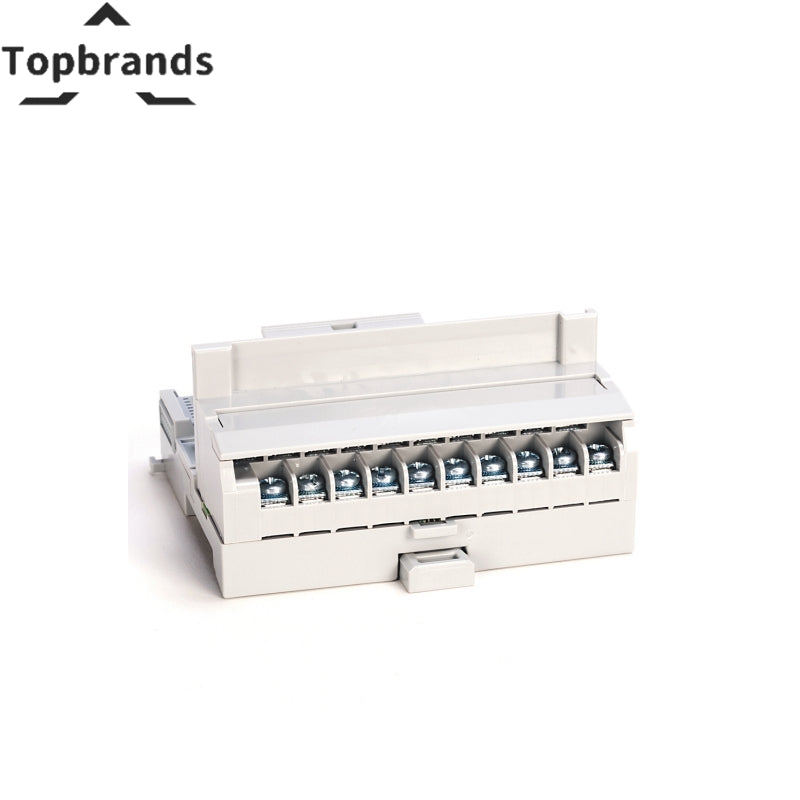

The Allen-Bradley 1794-TBNF — a terminal base unit you will wish you had on the shelf when the old one fails. Easy Maintenance: Individual I/O modules can be replaced or swapped without affecting the entire system. | Usage: FLEX I/O | Configuration: Fused. Physical stock, not virtual inventory. Ships within 24 hours.
Technical Specifications
| Modular I/O Expansion | The 1794-TBNF allows for a flexible and scalable I/O system by enabling the addition of various I/O modules as needed. |
|---|---|
| Simplified Wiring | Provides a central location for field wiring connections, reducing wiring complexity. |
| Easy Maintenance | Individual I/O modules can be replaced or swapped without affecting the entire system. |
| Usage | FLEX I/O |
| Configuration | Fused |
| Number of Points | 16 |
| Wire Gauge Supported | 22 - 12 AWG |
| Maximum Current Rating | 10 Amps |
| Maximum Voltage Rating | 250 Volts AC/DC |
| Size | 11*9*7cm |
| Weight | 0.2kg |
| Manufacturer | Allen-Bradley |
| Model / SKU | 1794-TBNF |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Understanding the Allen-Bradley 1794-TBNF
If you maintain Allen-Bradley systems, you know that not all replacement parts are created equal. The 1794-TBNF is a terminal base unit engineered specifically for Allen-Bradley automation platforms. The aftermarket is flooded with modules that look identical on the outside but use inferior components internally. usage: FLEX I/O; configuration: Fused; number of points: 16. We have tested clone modules side-by-side with genuine Allen-Bradley units — the clones typically fail within 3–6 months in continuous industrial service, sometimes taking out the backplane with them.
Every 1794-TBNF we sell is 100% genuine Allen-Bradley, with the manufacturer serial number and holographic label intact. We source from authorized distribution channels and decommissioned system tear-downs with full traceability documentation.
Before inserting this module, power down the chassis completely. Allen-Bradley modules are generally not hot-swappable. Verify backplane voltage with a calibrated multimeter before insertion. After installation, power up and verify the status LED shows normal operation before returning the system to service. Run the manufacturer diagnostic routine if available.
