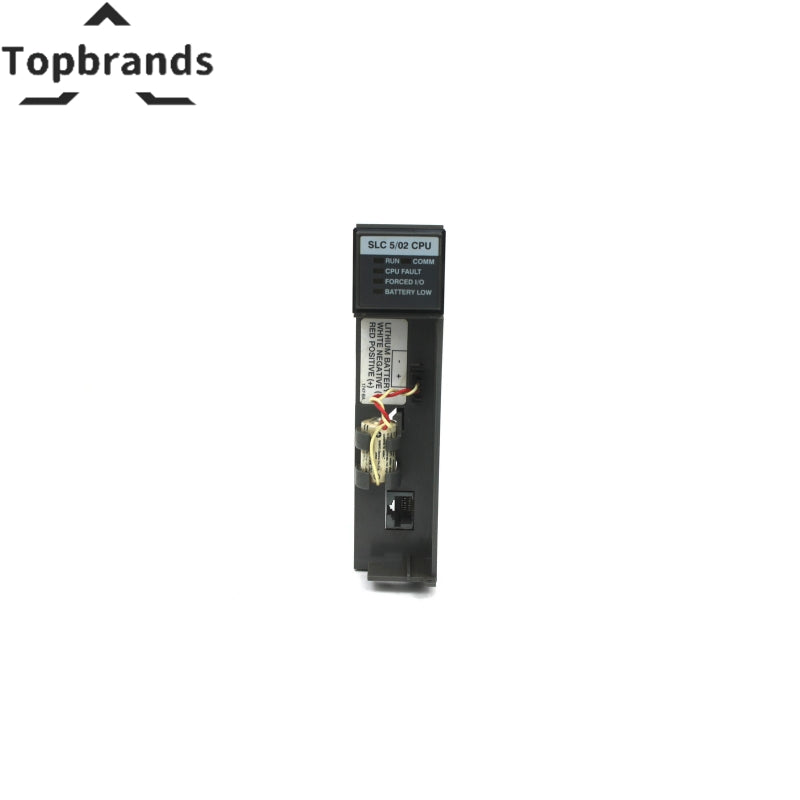

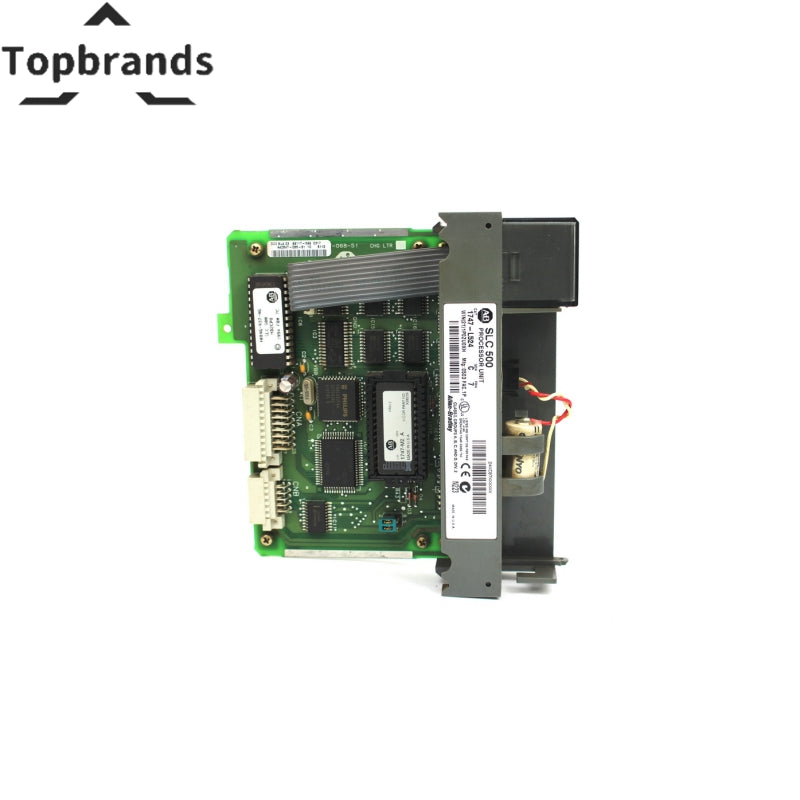

Allen-Bradley | SLC500 System | 1747-L524 SLC 5/02 Controller
When a Allen-Bradley system goes down, every hour costs thousands. The 1747-L524 slc 5/02 controller is the kind of spare part that pays for itself the first time you need it. I/O Capacity: 4096 discrete | Remote I/O Capacity: Processor memory and chassis power limit up to 4096 inputs and 4096 outputs | Chassis/Slots, Max: 3 Chassis/30 Slots of I/O. Factory-new, fully bench-tested, with a 12-month replacement warranty.
Technical Specifications
| Product Type | SLC 5/02 Processor 4K Memory |
|---|---|
| Program Memory (Words) | 4K |
| I/O Capacity | 4096 discrete |
| Remote I/O Capacity | Processor memory and chassis power limit up to 4096 inputs and 4096 outputs |
| Chassis/Slots, Max | 3 Chassis/30 Slots of I/O |
| Standard RAM | Capacitor - 2 weeks; optional lithium battery - 5 years; Lithium battery - 2 years; Capacitor - 30 minutes minimum |
| Memory Backup Options | EEPROM |
| Loading | 90 mA at 5V DC, 0 mA at 24V DC |
| Noise Immunity | NEMA Standard ICS 2-230 |
| Manufacturer | Allen-Bradley |
| Model / SKU | 1747-L524 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
How We Ship — And Why It Matters
Every 1747-L524 leaves our Shenzhen warehouse in ESD bag inside closed-cell foam inside double-wall carton. We include a printed test report with serial number and measured values. Most orders ship within 24 hours via DHL, FedEx, or UPS — 3-5 business days worldwide. Customs documentation included.
Will This Work in Your System?
The Allen-Bradley 1747-L524 is for Allen-Bradley platforms. Verify: (1) Firmware version supports this revision. (2) Available slot in correct chassis. (3) Power budget handles additional load. Send us a photo of your existing label and we will confirm compatibility within 4 business hours.
Installation: What the Manual Does Not Tell You
After handling hundreds of these modules, here is practical advice: (1) Verify backplane voltage before insertion — a shorted backplane destroys modules instantly. (2) ESD protection is not optional — static from removing a fleece jacket in a dry control room can kill a module. (3) If it does not slide in smoothly, stop — bent backplane pins are the #1 DOA cause. (4) Run diagnostics before returning the system to service.
How to Verify Genuine Parts
Every Allen-Bradley 1747-L524 is 100% genuine Allen-Bradley — not a clone, not a compatible knockoff. Each unit carries the manufacturer label and unique serial number. We source from authorized channels with full traceability. The market has counterfeits that fail within weeks — if a deal seems too good, it probably is.
