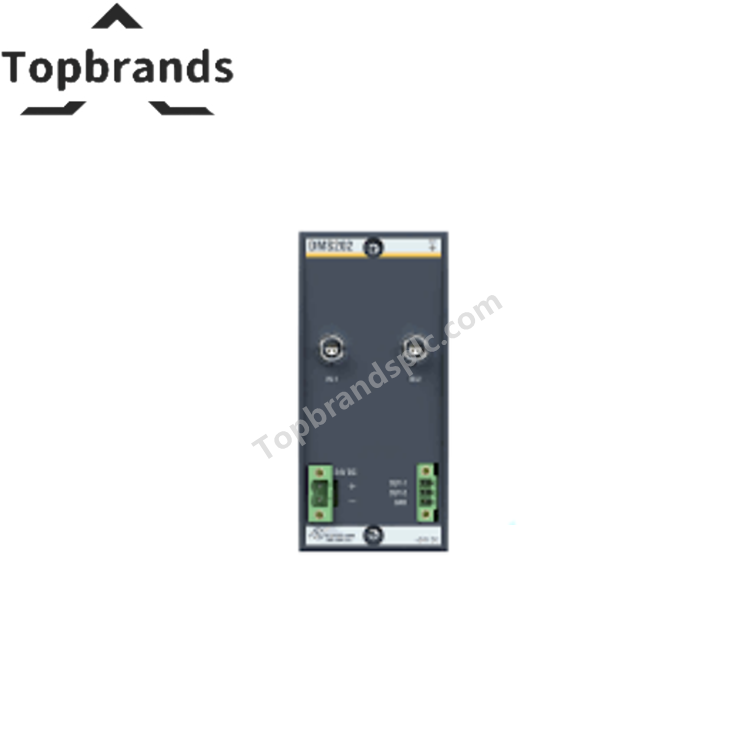

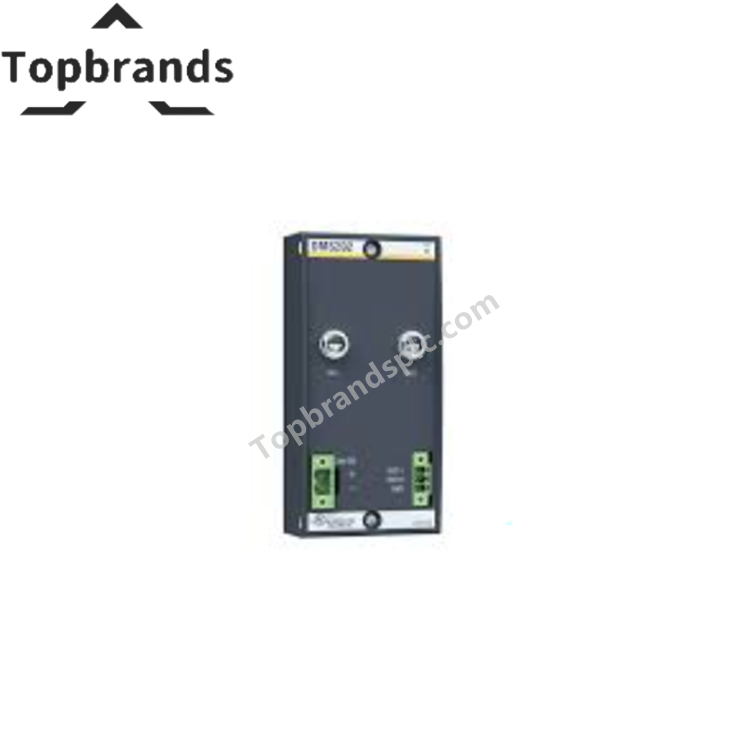

Bachmann DMS202 Strain Gauge Input Module
SKU: DMS202 In Stock
Bachmann
Genuine Bachmann DMS202. Strain Gauge Input Module.
Technical Specifications
| DMS202 | is a high-speed, microcontroller-operated measuring module designed to capture rapidly changing strain gauge signals. With a sampling time of just 12.5 µs per channel, it delivers precise and reliable measurements for industrial and scientific applications. |
|---|---|
| Channels: | 2 strain gauge measurement inputs |
| Resolution: | 12-bit |
| Sampling Time: | 12.5 µs per channel (25 µs for two-channel operation) |
| Measurement Range: | 2.0 / 4.0 / 8.0 / 16.0 mV or Auto Range |
| Output Voltage: | 0 V to 10 V |
| Input Resistance: | 5 MΩ |
| Common Mode Rejection Ratio (CMRR): | 80 dB (0 kHz to 5 kHz) |
| Operating Temperature Range: | 0°C to +60°C |
| Relative Humidity: | 5% to 95% non-condensing |
| Storage Temperature Range: | -40°C to +85°C |
| External Power Supply: | 18 V DC to 34 V DC |
| External Current Consumption: | 100 mA at 24 V DC |
| Galvanic Isolation: | 500 V |
| Manufacturer | Bachmann |
| Model / SKU | DMS202 |
Request a Quote — DMS202
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Bachmann DMS202
Bachmann DMS202 Strain Gauge Input Module. strain gauge input module for Bachmann. Channels:: 2 strain gauge measurement inputs. Resolution:: 12-bit. Sampling Time:: 12.5 µs per channel (25 µs for two-channel operation). Measurement Range:: 2.0 / 4.0 / 8.0 / 16.0 mV or Auto Range. Output Voltage:: 0 V to 10 V. Live-rack tested, 48h burn-in at 55C. Genuine Bachmann. 12-month warranty. Ships within 24h.
