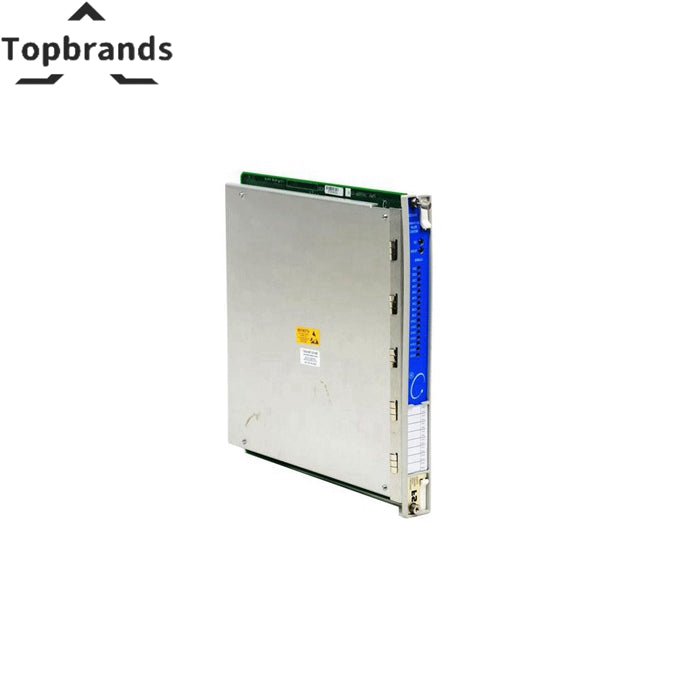

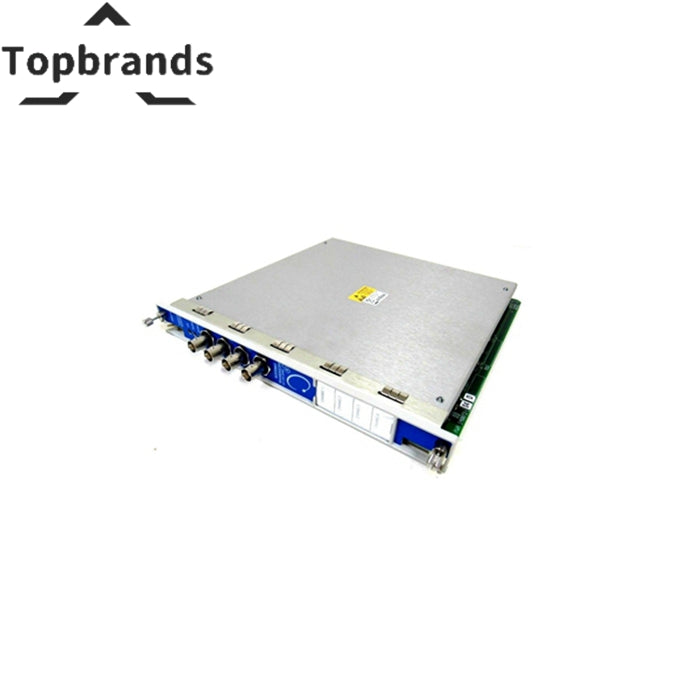

Bently Nevada 176449-05 3500/64M Dynamic Pressure Monitor
The Bently Nevada 176449-05 is a dynamic pressure monitor for Bently Nevada platforms. Product Type: 3500/64M Dynamic Pressure Monitor | Made in: U.S.A. | Number of Channels: 8. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| 3500/64M Dynamic Pressure Monitor | is a single slot, fourchannel monitor that accepts input from high temperature pressure transducers and uses this input to drive alarms. The monitor’s one measured variable per channel is bandpass dynamic pressure. |
|---|---|
| Part Number | 176449-05 |
| Product Type | 3500/64M Dynamic Pressure Monitor |
| Made in | U.S.A. |
| Number of Channels | 8 |
| Input Voltage | 24VDC |
| Power Consumption | 12W |
| Operating Temperature | -25°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions | 6.15 x 3.50 x 7.90 inches (156.2 x 88.9 x 200.7 mm) |
| Weight | 1.5 lbs (0.7 kg) |
| Manufacturer | Bently Nevada |
| Model / SKU | 176449-05 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Getting Accurate Measurements — The Sensor Is Only Half the Story
A Bently Nevada 176449-05 can be manufactured to micron-level precision, but if it is installed on a surface with pitting, rust, or mechanical runout exceeding the probe tip diameter, the output signal will be noise — not data. We see this most often on older machines where the target area has degraded over years of service.
Before ordering a replacement sensor, inspect the target surface. A clean, smooth, conductive target area (at least 2x the probe tip diameter) is essential for eddy-current probes. For velocity sensors and accelerometers, verify the mounting surface is flat, clean, and free of paint layers that can act as a mechanical filter and attenuate high-frequency content.
This Bently Nevada 176449-05 is a genuine unit — not aftermarket. It ships with the manufacturer calibration data sheet showing the exact sensitivity, linear range, and frequency response measured at the factory. We also perform a secondary verification on our test bench before shipping. Functional test report included. 48-hour burn-in. 12-month warranty. Ships within 24 hours from Shenzhen.
Compatible Parts — Same System
These modules share the same system family as the 176449-05. Commonly ordered together for complete rack builds or spare parts kits.
