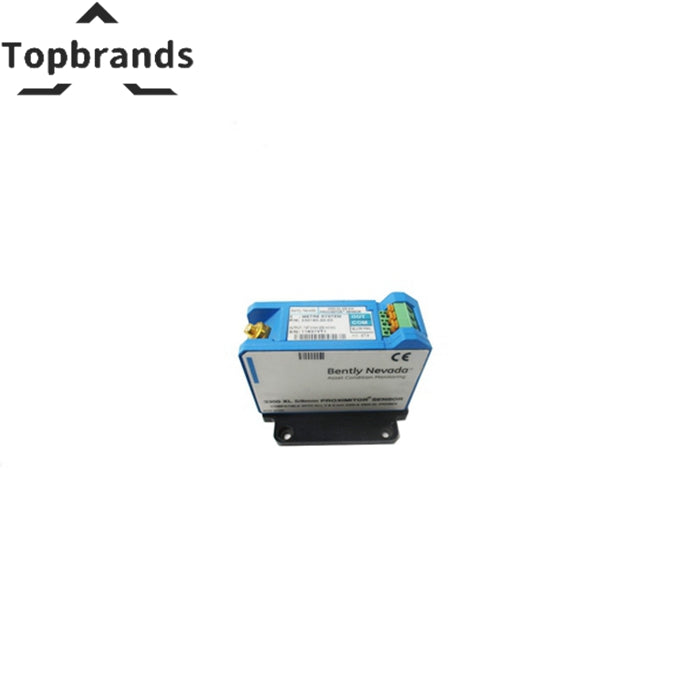

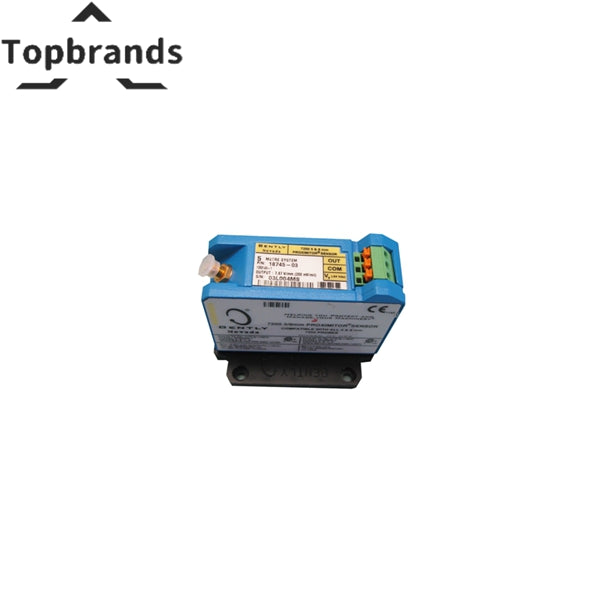

Bently Nevada 3300 XL 8 mm 330180-X2-05 Proximity Sensor
The Bently Nevada 330180-X2-05 is a proximity sensor for Bently Nevada industrial automation platforms. Target size: 5/8 inch (15.875 mm) | Operating temperature range: -40°F to +185°F (-40°C to +85°C) | Output: AC coupled, 10 mV/mil (4 mV/micron). Factory-sealed, fully tested, 12-month warranty. Ships within 24 hours.
Technical Specifications
| Type | Proximity sensor |
|---|---|
| Series | 3300XL |
| Target size | 5/8 inch (15.875 mm) |
| Operating temperature range | -40°F to +185°F (-40°C to +85°C) |
| Output | AC coupled, 10 mV/mil (4 mV/micron) |
| Connector | M12 connector |
| Mounting | Threaded stud |
| Size | 2.2 cm x 12.4 cm x 12.6 cm (0.9 x 4.9 x 5 inches) |
| Weight | 0.1 kg (0.22 lbs) |
| Manufacturer | Bently Nevada |
| Model / SKU | 330180-X2-05 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 Sensing Principle
The Bently Nevada 330180-X2-05 measures machinery parameters using precision sensing technology. Non-contact measurement eliminates mechanical wear, providing consistent data over years of continuous operation.
Applications
- Vibration Monitoring: Bearing housing and shaft vibration per ISO 10816.
- Position Measurement: Axial thrust, differential expansion, rod drop.
- Speed Reference: Keyphasor pulse for synchronous sampling.
🔧 Specs & Installation
| Parameter | Value |
|---|---|
| Type | Proximity sensor |
| Series | 3300XL |
| Target size | 5/8 inch (15.875 mm) |
| Operating temperature range | -40°F to +185°F (-40°C to +85°C) |
| Output | AC coupled, 10 mV/mil (4 mV/micron) |
| Connector | M12 connector |
| Mounting | Threaded stud |
| Size | 2.2 cm x 12.4 cm x 12.6 cm (0.9 x 4.9 x 5 inches) |
Installation
- Mount rigidly — bracket resonance corrupts readings.
- Use manufacturer-specified cables only.
- Verify gap voltage/gain settings before commissioning.
- Secure connectors against vibration loosening.
📦 Shipping
24h handling. Ships with calibration data. 12-month warranty covering sensing element failure, calibration drift, connector damage.
❓ FAQ
Q: Calibration interval?
A: Annual verification recommended. Typical drift <0.5%/year.
Q: Cable length critical?
A: Yes — cable is part of calibrated system. Match original exactly.
💰 Spare Strategy
Sensors are wear items. Cable fatigue is #1 failure mode after 5-8 years. Keep one spare per measurement location on critical machines.
