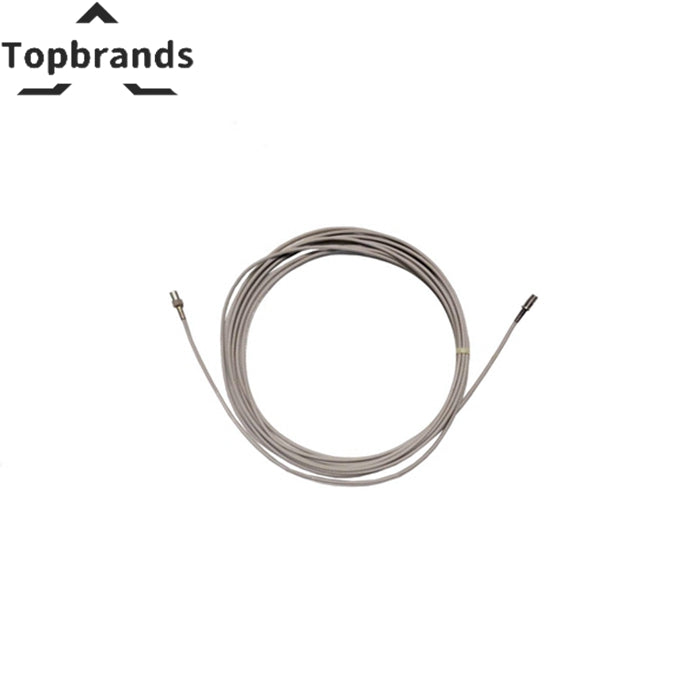

Bently Nevada 330101-00-18-10-02-00 3300 XL 8 mm Probe Extension Cable
The Bently Nevada 330101-00-18-10-02-00 is a 3300 xl 8 mm proximity probes for Bently Nevada platforms. Proximitor Sensor: 3300 XL Proximitor Sensor | TipLoc: molding method for robust probe tip bonding. | CableLoc: design with 330 N (75 lbf) pull strength for secure attachment.. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Probe | 3300 XL 8 mm probe |
|---|---|
| Extension Cable | 3300 XL extension cable |
| Proximitor Sensor | 3300 XL Proximitor Sensor |
| TipLoc | molding method for robust probe tip bonding. |
| CableLoc | design with 330 N (75 lbf) pull strength for secure attachment. |
| Nominal Probe DC Resistance | Refer to the datasheet for detailed specifications. |
| Power Supply Voltage | -24 VDC to -18 VDC |
| Output Resistance | 50 Ω |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz (±3 dB) |
| Output Signal | Current-modulated signal proportional to the gap distance |
| Linear Range | 2 mm (80 mils) |
| Scale Factor | 8 mV/µm (200 mV/mil) |
| Probe Tip Material | PEEK (Polyether Ether Ketone) |
| Cable Material | Fluoropolymer |
| Probe Diameter | 8 mm |
| Extension Cable Length | 0.5 to 9 meters |
| Connector Type | ClickLoc connectors |
| Temperature Range | : |
| Operating | -34°C to +177°C (-30°F to +350°F) for probe |
| Storage | -51°C to +177°C (-60°F to +350°F) |
| Humidity | 100% condensing, non-submersible |
| Vibration | 20 g peak, 10 Hz to 2 kHz |
| Shock | 150 g for 11 ms |
| API 670 | Meets 4th Edition requirements |
| CE Mark | Approved |
| RFI Immunity | High immunity |
| Manufacturer | Bently Nevada |
| Model / SKU | 330101-00-18-10-02-00 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Verified Sensor Performance
Every Bently Nevada 330101-00-18-10-02-00 is verified on a calibrated test bench before shipping. Scale factor, linearity, gap voltage measured and documented. Printed test report. Genuine Bently Nevada. 12-month warranty. Ships within 24 hours.
