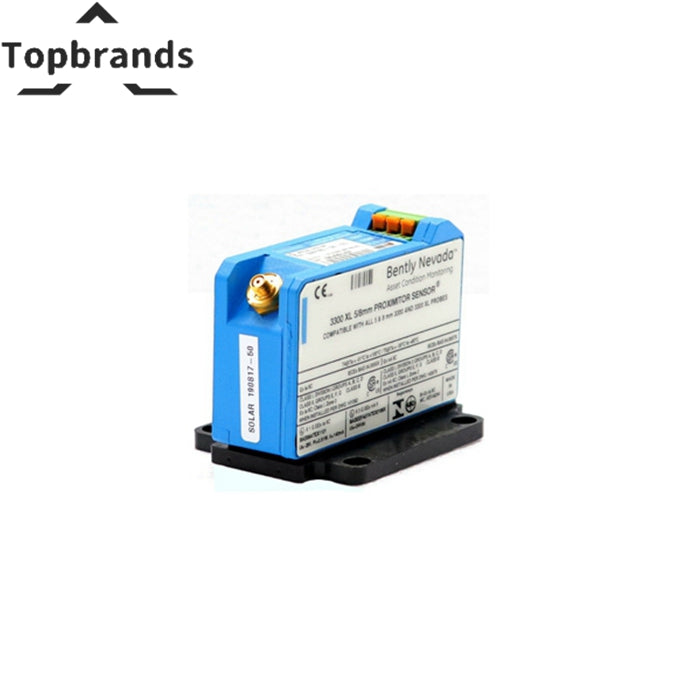

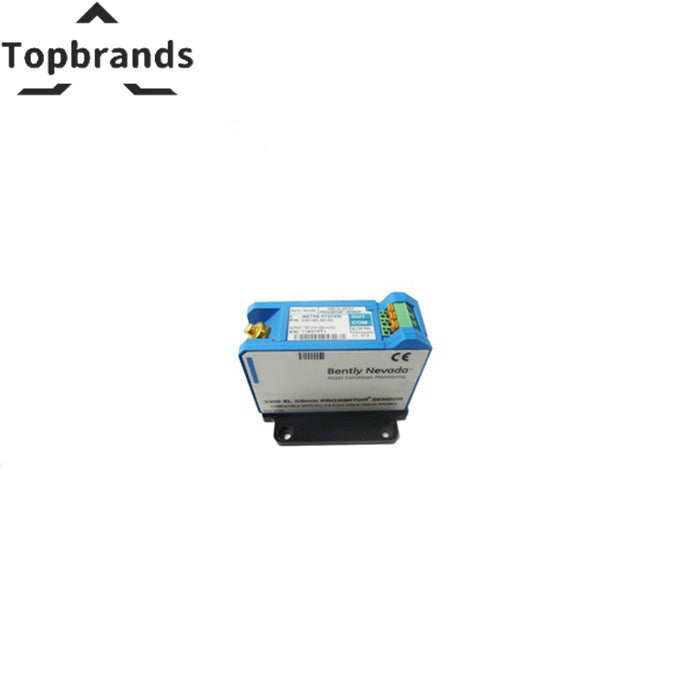

Bently Nevada 330180-51-00 Proximity Sensor | 3300 XL 8 mm
The Bently Nevada 330180-51-00 is a proximity sensor for Bently Nevada industrial automation platforms. Product Type: 3300XL Proximitor Sensor | Made In: U.S.A | Total Length and Mounting Option: 5.0 meters (16.4 feet) system length, DIN mount. Factory-sealed, fully tested, 12-month warranty. Ships within 24 hours.
Technical Specifications
| Manufacturer | Bently Nevada |
|---|---|
| Product Number | 330180-51-00 |
| Product Type | 3300XL Proximitor Sensor |
| Made In | U.S.A |
| Total Length and Mounting Option | 5.0 meters (16.4 feet) system length, DIN mount |
| Agency Approval Option | Not required |
| Dimensions (L x W x H) | 8.13 cm x 6.12 cm x 6.35 cm |
| Weight | 0.5 kg |
| Shipping Weight | 2 kg |
| High-Density DIN-Rail Installation | The physical packaging supports high-density DIN-rail installations. |
| Mounting Options | Can be mounted in a traditional panel mount configuration, sharing a 4-hole mounting “footprint” with older Proximitor Sensor designs. The mounting base provides electrical isolation, eliminating the need for separate isolator plates. |
| RFI/EMI Immunity | Highly immune to radio frequency interference, suitable for installation in fiberglass housings without adverse effects from nearby signals. |
| European CE Mark Approval | Meets European CE mark approvals, reducing installation costs and complexity by eliminating the need for special shielded conduit or metallic housings. |
| Model / SKU | 330180-51-00 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 Sensing Principle
The Bently Nevada 330180-51-00 measures machinery parameters using precision sensing technology. Non-contact measurement eliminates mechanical wear, providing consistent data over years of continuous operation.
Applications
- Vibration Monitoring: Bearing housing and shaft vibration per ISO 10816.
- Position Measurement: Axial thrust, differential expansion, rod drop.
- Speed Reference: Keyphasor pulse for synchronous sampling.
🔧 Specs & Installation
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Product Number | 330180-51-00 |
| Product Type | 3300XL Proximitor Sensor |
| Made In | U.S.A |
| Total Length and Mounting Option | 5.0 meters (16.4 feet) system length, DIN mount |
| Agency Approval Option | Not required |
| Dimensions (L x W x H) | 8.13 cm x 6.12 cm x 6.35 cm |
| Weight | 0.5 kg |
Installation
- Mount rigidly — bracket resonance corrupts readings.
- Use manufacturer-specified cables only.
- Verify gap voltage/gain settings before commissioning.
- Secure connectors against vibration loosening.
📦 Shipping
24h handling. Ships with calibration data. 12-month warranty covering sensing element failure, calibration drift, connector damage.
❓ FAQ
Q: Calibration interval?
A: Annual verification recommended. Typical drift <0.5%/year.
Q: Cable length critical?
A: Yes — cable is part of calibrated system. Match original exactly.
💰 Spare Strategy
Sensors are wear items. Cable fatigue is #1 failure mode after 5-8 years. Keep one spare per measurement location on critical machines.
