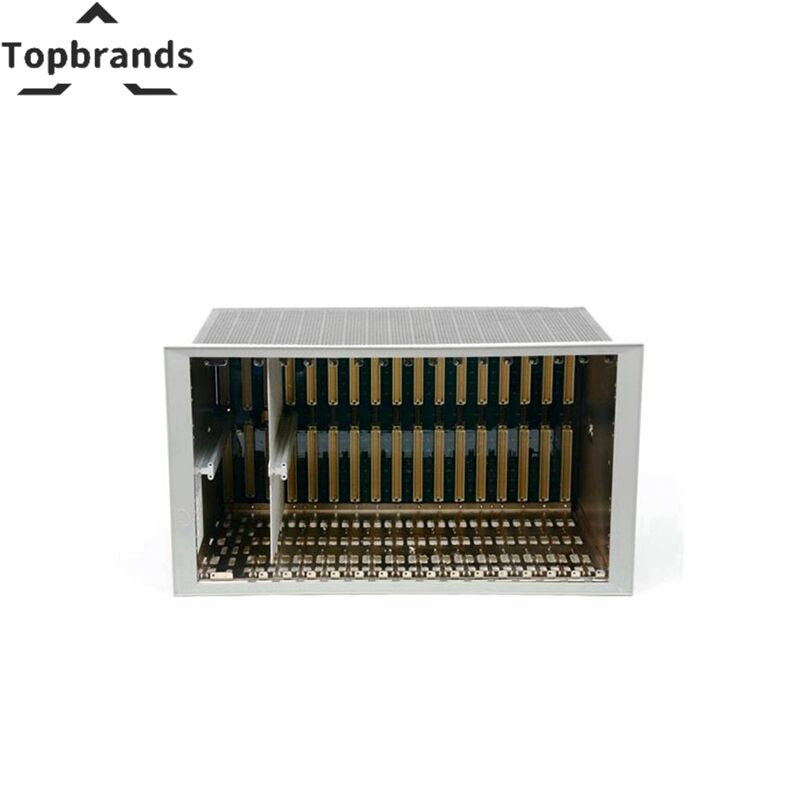

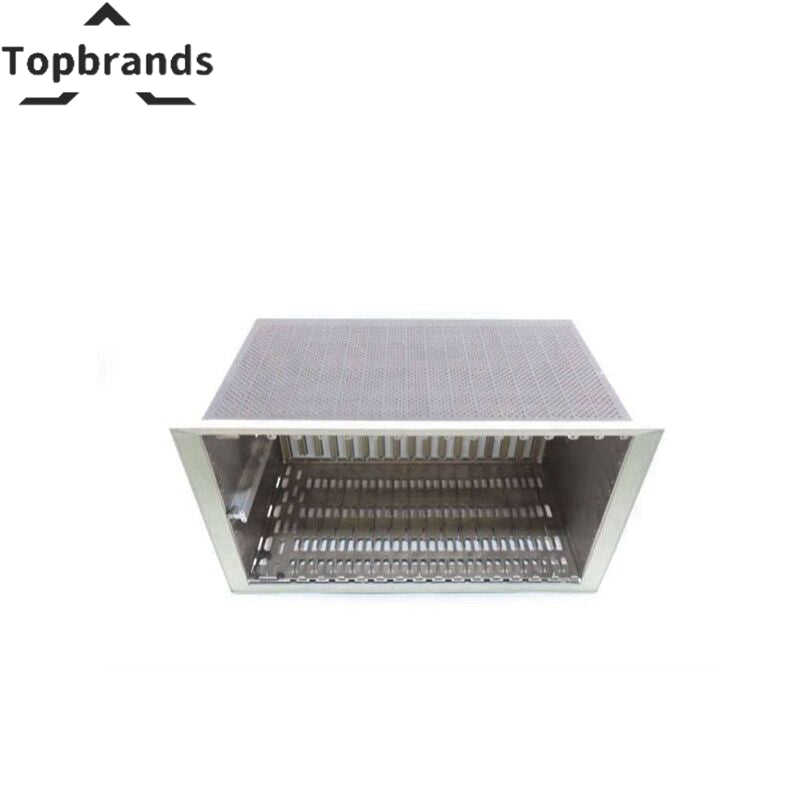

Bently Nevada 3500/05-01-02-00-00-00 System Rack | 12/19 Inch Rack
The Bently Nevada 3500/05-01-02-00-00-00 is a system rack for Bently Nevada industrial automation platforms. Dimensions: 29.21" x 13.78" x 10.04" (740 mm x 350 mm x 255 mm) | Weight: 14.5 lbs (6.6 kg) | Operating temperature range: -40°C to 65°C (-40°F to 149°F). Factory-sealed, fully tested, 12-month warranty. Ships within 24 hours.
Technical Specifications
| 3500/05 | This indicates the series - 3500/05. |
|---|---|
| -01-02-00-00-00 | This section can vary depending on the specific configuration of the rack. However, the first digit (-01 in this case) often refers to the rack size: |
| Dimensions | 29.21" x 13.78" x 10.04" (740 mm x 350 mm x 255 mm) |
| Weight | 14.5 lbs (6.6 kg) |
| Operating temperature range | -40°C to 65°C (-40°F to 149°F) |
| Storage temperature range | -45°C to 75°C (-49°F to 167°F) |
| Humidity range | 0% to 95% RH (non-condensing) |
| EMI/RFI filtering | 50 Hz to 100 kHz |
| NEMA 4X enclosure | IP66 dust and watertight, IP67 immersion up to 1 meter for 30 minutes |
| Manufacturer | Bently Nevada |
| Model / SKU | 3500/05-01-02-00-00-00 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 System Foundation
The Bently Nevada 3500/05-01-02-00-00-00 is the physical housing and backplane for the monitoring or control system. It provides power distribution, module interconnection, and mechanical mounting for all system modules.
Rack Configuration
Plan module placement before installation. Power supplies occupy leftmost slots. Monitor and I/O modules fill remaining positions. Leave empty slots for future expansion.
🔧 Specifications
| Parameter | Value |
|---|---|
| 3500/05 | This indicates the series - 3500/05. |
| -01-02-00-00-00 | This section can vary depending on the specific configuration of the rack. However, the first digit (-01 in this case) often refers to the rack size: |
| Dimensions | 29.21" x 13.78" x 10.04" (740 mm x 350 mm x 255 mm) |
| Weight | 14.5 lbs (6.6 kg) |
| Operating temperature range | -40°C to 65°C (-40°F to 149°F) |
| Storage temperature range | -45°C to 75°C (-49°F to 167°F) |
| Humidity range | 0% to 95% RH (non-condensing) |
| EMI/RFI filtering | 50 Hz to 100 kHz |
📦 Shipping
24h handling. Ships in protective packaging. 12-month warranty covering backplane faults, connector damage, power distribution failure.
❓ FAQ
Q: Maximum module count?
A: Depends on rack size. Verify slot count matches your system requirements before ordering.
Q: Backplane compatibility?
A: Rack backplane is specific to system generation. Verify compatibility with your existing modules.
💰 Foundation Investment
The rack is the foundation of your entire monitoring system. A backplane failure means all modules go offline simultaneously. For critical installations, consider maintaining a spare rack — the cost is a fraction of complete system downtime.
