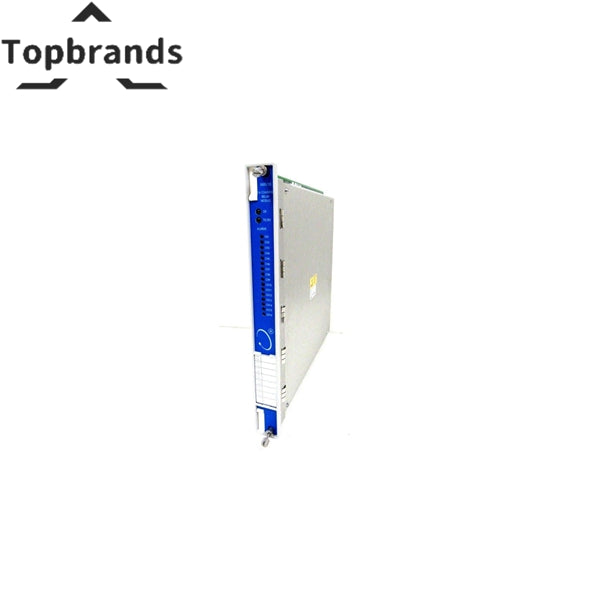

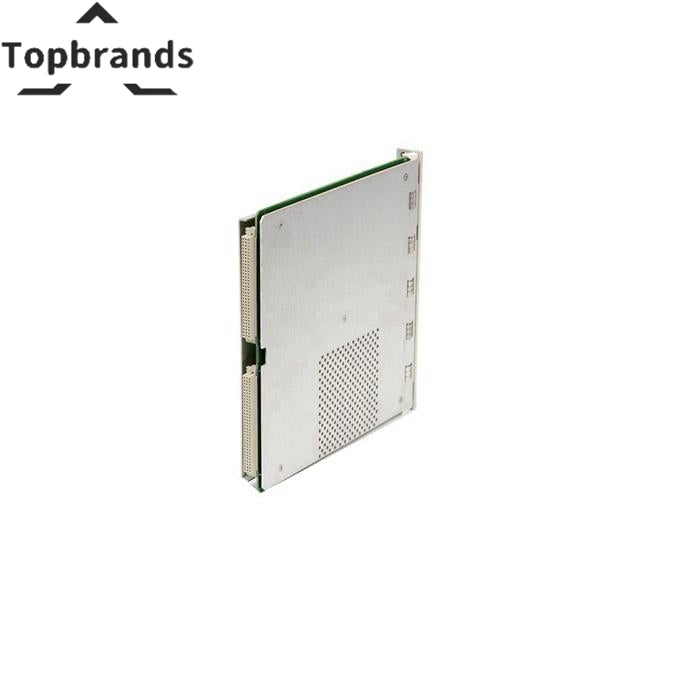

Bently Nevada 3500/33 149986-01 Spare 16-Channel Relay Control Module
The Bently Nevada 149986-01 is a precision relay control module for the Bently Nevada 3500 Series machinery protection platform. Relay Environmental Sealing: Epoxy-sealed | Relay Arc Suppressor: 250 Vrms installed as standard | Relay Contact Life: 10,000 cycles. Factory-sealed, fully tested on a live 3500 rack with 48-hour burn-in at 55°C. 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| Power Consumption | 5.8 watts typical |
|---|---|
| Relay Type | Single-pole Double-throw (SPDT) |
| Relay Environmental Sealing | Epoxy-sealed |
| Relay Arc Suppressor | 250 Vrms installed as standard |
| Relay Contact Life | 10,000 cycles |
| Dimensions (Main Module) | 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in) |
| Weight (Main Module) | 0.7 kg (1.6 lb) |
| Dimensions (I/O Module) | 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
| Weight (I/O Module) | 0.4 kg (1.0 lb) |
| Rack Space Requirements (Main Module) | 1 full-height front slot |
| Rack Space Requirements (I/O Modules) | 1 full-height rear slot |
| Manufacturer | Bently Nevada |
| Model / SKU | 149986-01 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 System Integration
The Bently Nevada 149986-01 is a 3500 Series component deployed worldwide in power generation, oil & gas, and heavy industry. Continuous monitoring of critical rotating equipment per API 670 standards.
🔧 Specifications
Specifications
| Parameter | Value |
|---|---|
| Power Consumption | 5.8 watts typical |
| Relay Type | Single-pole Double-throw (SPDT) |
| Relay Environmental Sealing | Epoxy-sealed |
| Relay Arc Suppressor | 250 Vrms installed as standard |
| Relay Contact Life | 10,000 cycles |
| Dimensions (Main Module) | 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in) |
| Weight (Main Module) | 0.7 kg (1.6 lb) |
| Dimensions (I/O Module) | 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
Installation
- Power down rack before insertion — not hot-swappable.
- Insert only in designated slot per configuration.
- ESD wrist strap mandatory.
- Verify STATUS LED green and channels OK after installation.
📦 Shipping & Warranty
24-hour handling. Anti-static packaging. DHL/FedEx/UPS worldwide. 12-month warranty.
❓ FAQ
Q: Genuine Bently Nevada?
A: Yes, 100% genuine with serial number. Full traceability.
Q: Installation support?
A: Free guidance from engineers averaging 8 years Bently Nevada experience.
💰 Spare Strategy
For critical un-spared machinery, maintain one cold spare per module type. First avoided outage pays for entire spare inventory.
