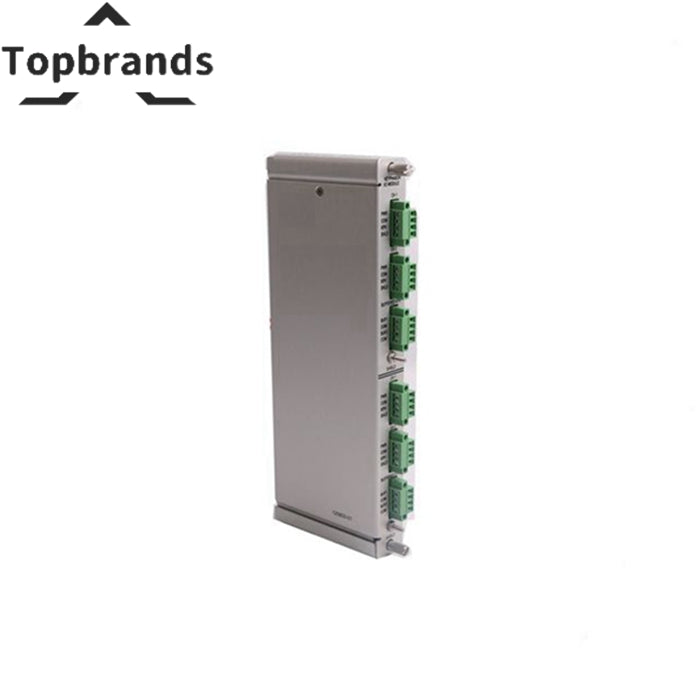

Bently Nevada 3500/40M 125680-01 Proximitor I/O Module with Internal Terminations
The Bently Nevada 125680-01 is a precision proximitor i/o module for the Bently Nevada 3500 Series machinery protection platform. Product No.: 125680-01 | Product Type: Proximitor I/O Module | Country of Manufacture: United States (USA). Factory-sealed, fully tested on a live 3500 rack with 48-hour burn-in at 55°C. 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| Bently Nevada 125680-01 | is an integral component of the Bently |
|---|---|
| Manufacturer | Bently Nevada |
| Product No. | 125680-01 |
| Product Type | Proximitor I/O Module |
| Country of Manufacture | United States (USA) |
| Series | Bently Nevada 3300 |
| Availability | In Stock |
| Weight | 0.38 kg |
| Dimensions | 2.5 cm x 11.2 cm x 24.2 cm |
| Multi-Channel Monitoring | The |
| 3500/40M Proximitor Monitor | can manage up to four channels, allowing for the simultaneous processing of multiple functions such as Radial Vibration, Thrust Position, Differential Expansion, Eccentricity, and REBAM. |
| Flexible Configuration | Channels are set up in pairs, enabling independent or simultaneous operation. For instance, Channels 1 and 2 can execute one function while Channels 3 and 4 can perform either the same or different functions. |
| Advanced Signal Conditioning | Each channel conditions its input signal into static values, which can be monitored and controlled for enhanced precision in measurement. |
| User-Programmable Alerts | Users can define alert and danger setpoints for both static values and active signal parameters, facilitating proactive monitoring and maintenance strategies. |
| Model / SKU | 125680-01 |
â Ships within 24 hours | â 12-Month Warranty | â Worldwide Delivery
Detailed Product Information
ðŊ System Integration
The Bently Nevada 125680-01 connects the 3500 rack to plant condition monitoring and historian infrastructure, streaming real-time vibration and temperature data to System 1, OSIsoft PI, or DCS via Modbus TCP.
Network Options
- Copper (146031-01): 10/100Base-TX, max 100m.
- Fiber (146031-02): 100Base-FX, max 2km â ideal for long runs or high-EMI areas.
Configuration
Static IP mandatory â DHCP expiry causes data gaps. Configure NTP for accurate timestamps. Allow TCP 3500 + TCP 502 through OT firewall.
ð§ Technical Specifications
Specifications
| Parameter | Value |
|---|---|
| Bently Nevada 125680-01 | is an integral component of the Bently |
| Manufacturer | Bently Nevada |
| Product No. | 125680-01 |
| Product Type | Proximitor I/O Module |
| Country of Manufacture | United States (USA) |
| Series | Bently Nevada 3300 |
| Availability | In Stock |
| Weight | 0.38 kg |
Installation
- Install in assigned rack slot per configuration drawing.
- Copper: CAT5e UTP 100m max. Fiber: 62.5/125Ξm multimode SC 2km max.
- Assign static IP. Configure NTP. Document settings.
- Verify STATUS LED green and data flowing before returning to service.
ðĶ Shipping & Warranty
24-hour handling. Anti-static packaging. DHL/FedEx/UPS. 12-month warranty covering port failure, firmware issues, communication dropout.
â FAQ
Q: Copper or fiber?
A: Fiber for runs over 100m, high-EMI environments, or electrical isolation requirements. Copper for standard control room under 100m.
Q: Does replacement require reconfiguration?
A: Yes â IP settings are stored on the module. Document your settings before removing the old module.
ð° ROI
The TDI module enables predictive maintenance. One avoided bearing failure on a 50 MW turbine saves $250K-500K. Without it, your 3500 rack is just a trip system.
