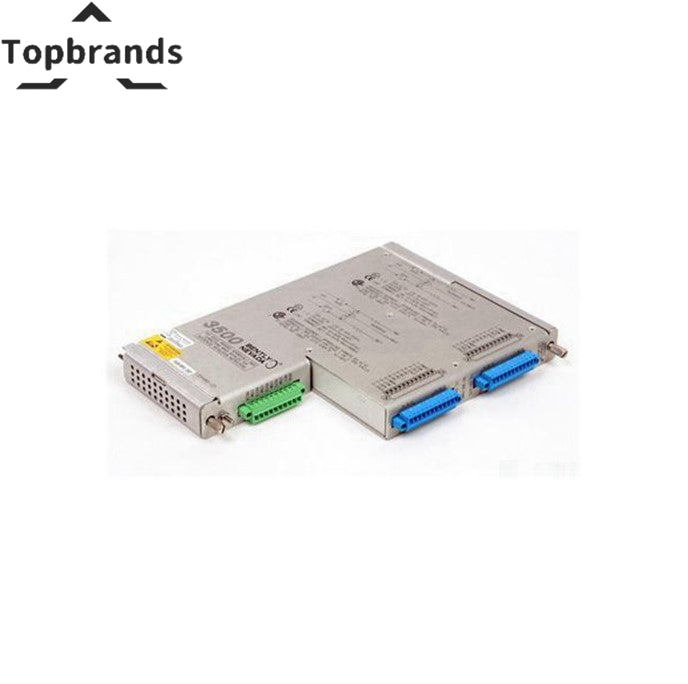

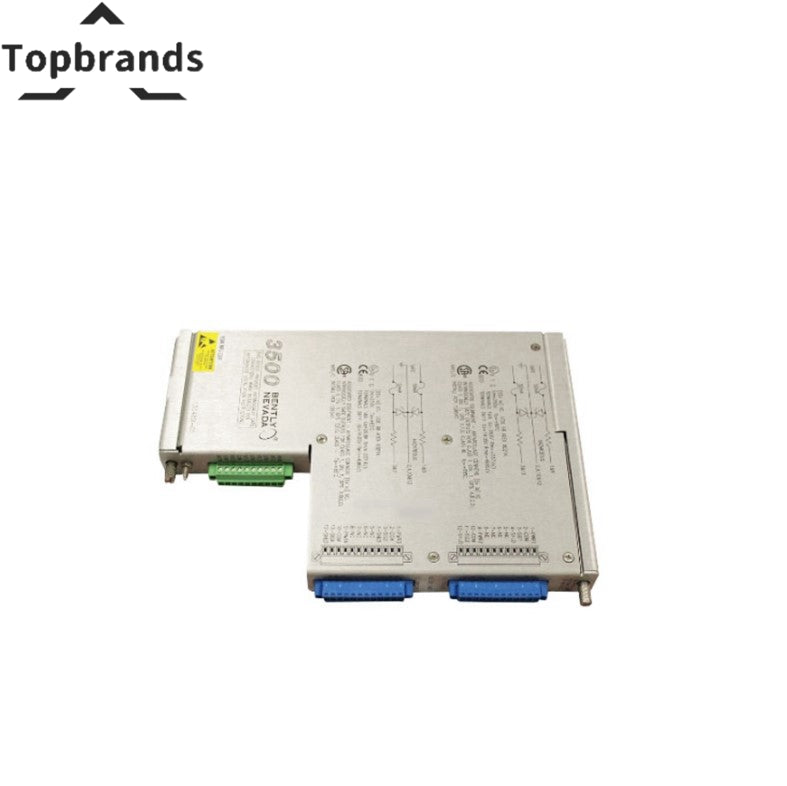

Bently Nevada 3500/40M 135489-04 Proximitor I/O Module with Internal Barriers and Internal Terminations
The Bently Nevada 135489-04 is a precision proximitor i/o module for the Bently Nevada 3500 Series machinery protection platform. Product Number: 135489-04 | Product Type: I/O Module with Internal Barriers and Internal Terminations | Country of Manufacture: United States (USA). Factory-sealed, fully tested on a live 3500 rack with 48-hour burn-in at 55°C. 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| 135489-04 | is an I/O Module with internal barriers and internal terminations, manufactured by Bently Nevada. Designed for reliable industrial use, this module is made in the USA and supports seamless integration into control systems. It also comes with the option to include a Certificate of Origin (COO) upon request. |
|---|---|
| Manufacturer | Bently Nevada |
| Product Number | 135489-04 |
| Product Type | I/O Module with Internal Barriers and Internal Terminations |
| Country of Manufacture | United States (USA) |
| Weight | 0.201 kg |
| Shipping Weight | 2 kg |
| Model / SKU | 135489-04 |
â Ships within 24 hours | â 12-Month Warranty | â Worldwide Delivery
Detailed Product Information
ðŊ System Integration
The Bently Nevada 135489-04 connects the 3500 rack to plant condition monitoring and historian infrastructure, streaming real-time vibration and temperature data to System 1, OSIsoft PI, or DCS via Modbus TCP.
Network Options
- Copper (146031-01): 10/100Base-TX, max 100m.
- Fiber (146031-02): 100Base-FX, max 2km â ideal for long runs or high-EMI areas.
Configuration
Static IP mandatory â DHCP expiry causes data gaps. Configure NTP for accurate timestamps. Allow TCP 3500 + TCP 502 through OT firewall.
ð§ Technical Specifications
Specifications
| Parameter | Value |
|---|---|
| 135489-04 | is an I/O Module with internal barriers and internal terminations, manufactured by Bently Nevada. Designed for reliable industrial use, this module is made in the USA and supports seamless integration into control systems. It also comes with the option to include a Certificate of Origin (COO) upon request. |
| Manufacturer | Bently Nevada |
| Product Number | 135489-04 |
| Product Type | I/O Module with Internal Barriers and Internal Terminations |
| Country of Manufacture | United States (USA) |
| Weight | 0.201 kg |
| Shipping Weight | 2 kg |
| Model / SKU | 135489-04 |
Installation
- Install in assigned rack slot per configuration drawing.
- Copper: CAT5e UTP 100m max. Fiber: 62.5/125Ξm multimode SC 2km max.
- Assign static IP. Configure NTP. Document settings.
- Verify STATUS LED green and data flowing before returning to service.
ðĶ Shipping & Warranty
24-hour handling. Anti-static packaging. DHL/FedEx/UPS. 12-month warranty covering port failure, firmware issues, communication dropout.
â FAQ
Q: Copper or fiber?
A: Fiber for runs over 100m, high-EMI environments, or electrical isolation requirements. Copper for standard control room under 100m.
Q: Does replacement require reconfiguration?
A: Yes â IP settings are stored on the module. Document your settings before removing the old module.
ð° ROI
The TDI module enables predictive maintenance. One avoided bearing failure on a 50 MW turbine saves $250K-500K. Without it, your 3500 rack is just a trip system.
