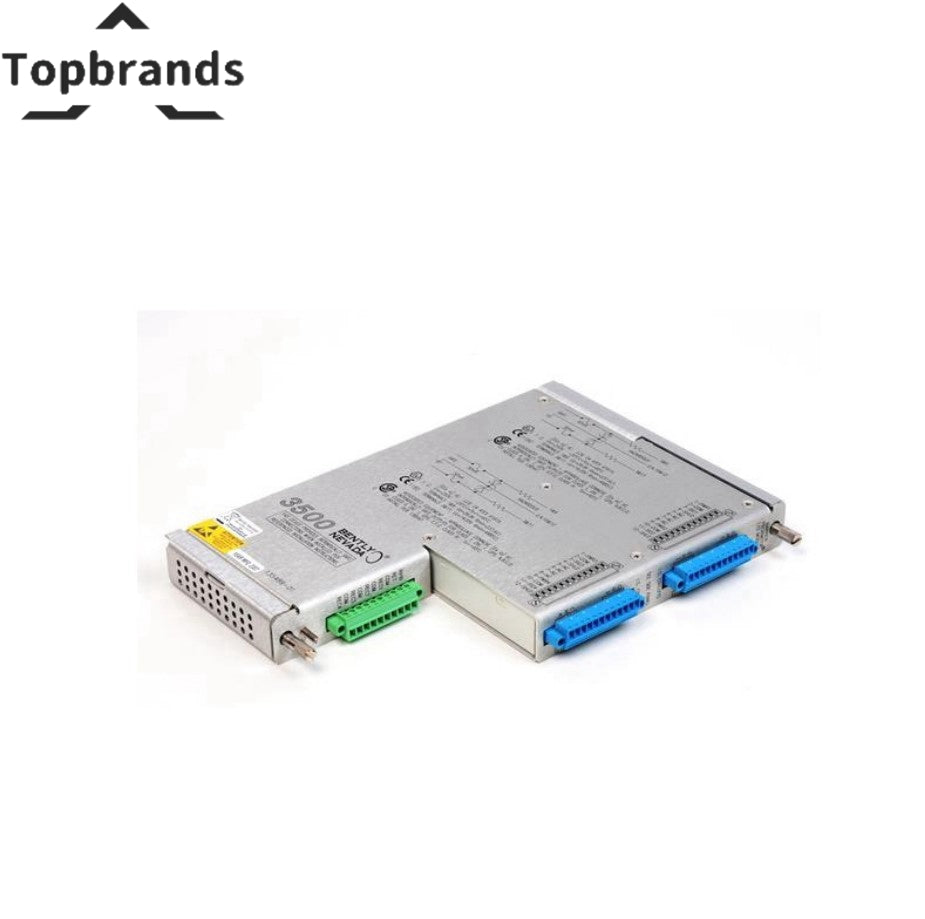

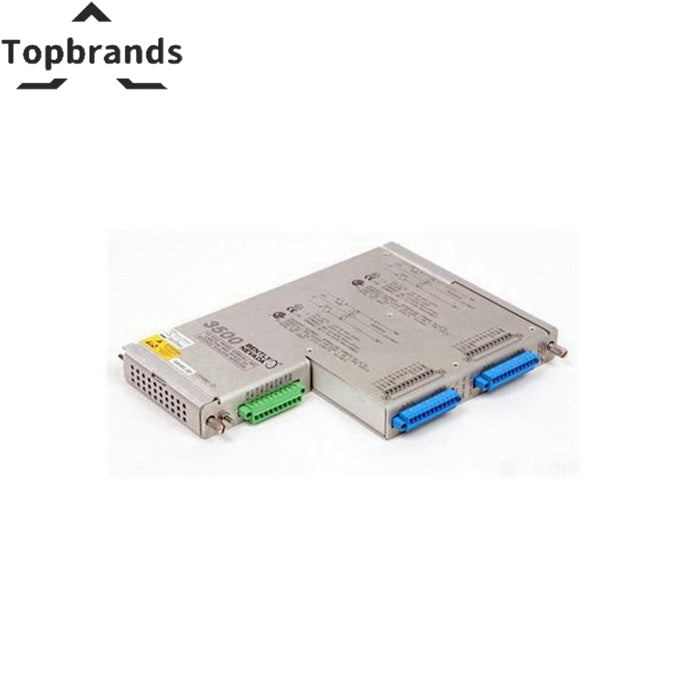

Bently Nevada 3500/42M 135489-03 I/O Module with Internal Barriers | Internal Terminations
The Bently Nevada 135489-03 is a i/o module for the Bently Nevada 3500 Series machinery protection platform. Signal Processing: Converts raw sensor signals into usable data for the 3500 system. | Output Capabilities: Some variations offer limited output capabilities, allowing control of actuators based on the specific system configuration. | Size: 11 cm x 4 cm x 25 cm. Factory-sealed, tested on live rack with 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| 4 Input Channels | Processes signals from various sensors |
|---|---|
| Internal Barriers | Enhances safety by isolating each channel, limiting electrical interference, and safeguarding personnel and equipment from potential faults. |
| Signal Processing | Converts raw sensor signals into usable data for the 3500 system. |
| Output Capabilities | Some variations offer limited output capabilities, allowing control of actuators based on the specific system configuration. |
| Size | 11 cm x 4 cm x 25 cm |
| Weight | 0.46 kg |
| Manufacturer | Bently Nevada |
| Model / SKU | 135489-03 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 Module Function
The Bently Nevada 135489-03 is an I/O module within the 3500 Series rack, providing the interface between monitor modules and field devices, relays, or communication networks. I/O modules handle signal routing, channel isolation, and protocol conversion.
Installation Requirements
- Install only in the rack slot designated by your configuration drawing — inserting into the wrong slot generates a configuration mismatch alarm.
- Power down the rack before insertion — 3500 modules are not hot-swappable.
- ESD wrist strap mandatory. Low humidity (<30% RH) significantly increases ESD risk.
🔧 Specifications
Specifications
| Parameter | Value |
|---|---|
| 4 Input Channels | Processes signals from various sensors |
| Internal Barriers | Enhances safety by isolating each channel, limiting electrical interference, and safeguarding personnel and equipment from potential faults. |
| Signal Processing | Converts raw sensor signals into usable data for the 3500 system. |
| Output Capabilities | Some variations offer limited output capabilities, allowing control of actuators based on the specific system configuration. |
| Size | 11 cm x 4 cm x 25 cm |
| Weight | 0.46 kg |
| Manufacturer | Bently Nevada |
| Model / SKU | 135489-03 |
📦 Shipping & Warranty
24-hour handling. Anti-static packaging. 12-month warranty.
❓ FAQ
Q: Genuine Bently Nevada?
A: Yes, 100% genuine with serial number and traceability.
Q: Installation support?
A: Free guidance from engineers with 8+ years experience on Bently Nevada systems.
💰 Spare Strategy
For critical un-spared machinery, keep one cold spare. The module cost is a fraction of a single day of lost monitoring.
