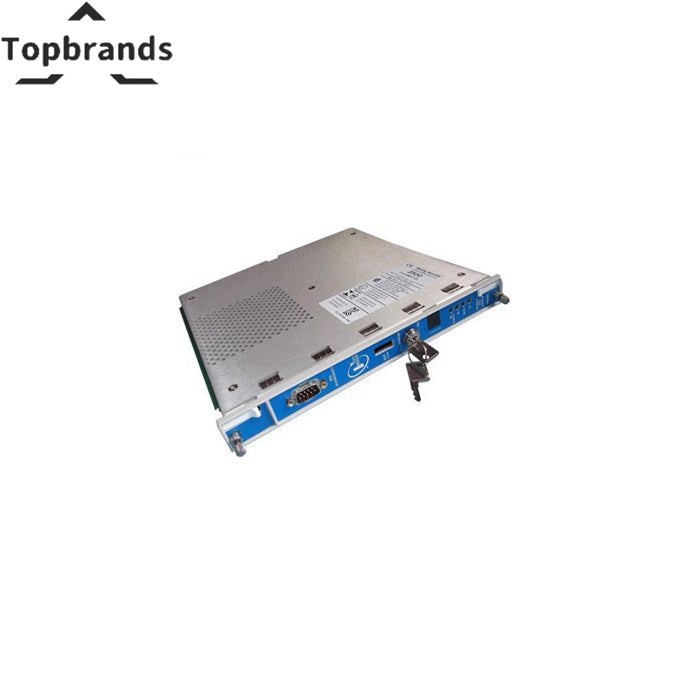

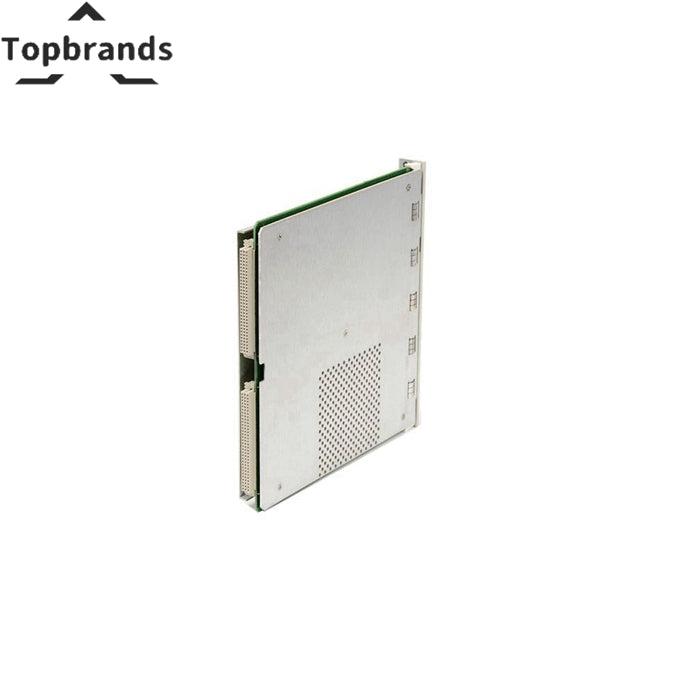

Bently Nevada 3500/44M 176449-03 Aeroderivitive GT Vibration Monitor

The Bently Nevada 176449-03 is a dedicated monitoring module within the 3500 Series rack. It continuously measures critical machinery parameters and provides relay outputs for alarm and shutdown protection per API 670. Unlike general-purpose I/O, monitor modules implement signal conditioning, filtering, and threshold comparison directly in hardware — ensuring protection response times under 100 milliseconds even if the rack communication is interrupted.

What It Monitors

• Vibration Monitors: Accept Proximitor inputs, extract peak-to-peak amplitude, compare against programmable alarm/danger setpoints.
• Position Monitors: Measure DC gap voltage for thrust position, differential expansion, and rod drop on reciprocating compressors.
• Temperature Monitors: Accept RTD and thermocouple inputs for bearing metal and case temperature monitoring.
• Tachometer/Speed: Accept magnetic pickup or proximity probe inputs for rotational speed and zero-speed detection.

Setpoint Configuration

Alarm and danger setpoints should be established based on ISO 10816 or API vibration standards for your specific machine type. Always document setpoint rationale — during an incident investigation, you will need to justify why the machine tripped (or didn't trip) at a given threshold.

Specifications

Calibration & Verification

1. Use a calibrated signal source (TK-3 for vibration, decade box for temperature) to inject known test signals.
2. Verify the module's front-panel reading matches the injected signal within ±1% of full scale.
3. Force each alarm and danger relay by temporarily lowering setpoints below current readings — verify DCS annunciation and trip logic.
4. Document all calibration values and relay test results in your maintenance management system.

24-hour handling. Anti-static packaging. DHL/FedEx/UPS worldwide. 12-month warranty covering component failure, calibration drift, relay failure.

Q: How often should monitor modules be calibrated?
A: Bently Nevada recommends annual calibration verification. For SIL-rated safety loops, verify every 6 months per IEC 61511.

Q: Can I hot-swap a monitor module?
A: No. The 3500 rack monitors are NOT hot-swappable. Power down the rack, replace the module, reconfigure if needed, power up, and verify.

Q: My monitor shows OK but the relay doesn't trip during test?
A: Check: (1) Relay module installed in correct slot; (2) Monitor-to-relay channel mapping in Rack Configuration Software; (3) Relay module STATUS LED — if amber, the relay module itself may be faulty.

This monitor module is the last line of defense between normal operation and catastrophic machine failure. One avoided bearing wipe on a 50 MW turbine saves $500,000+ in repairs and 4+ weeks of downtime. The monitor cost is recovered in the first detected incident — often within months of commissioning.
