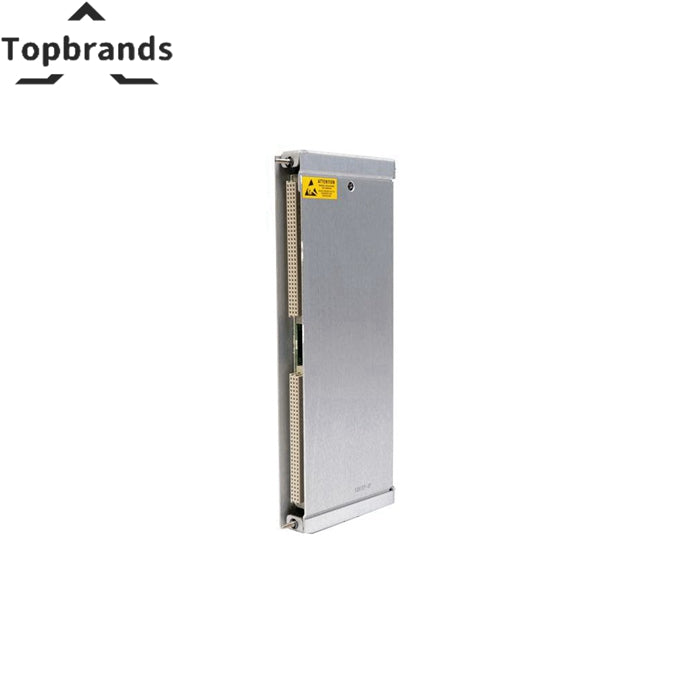

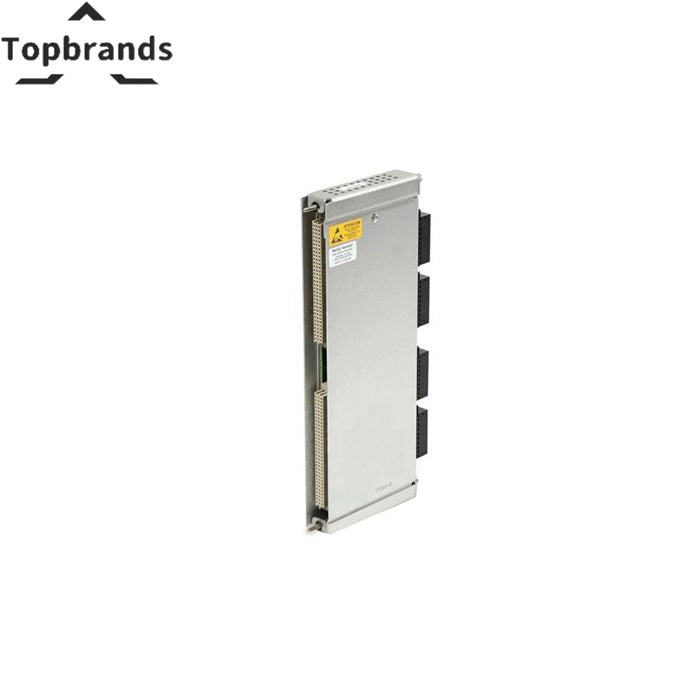

Bently Nevada 3500/50 133442-01 I/O Module with Internal Terminations
The Bently Nevada 133442-01 is a i/o module for the Bently Nevada 3500 Series machinery protection platform. Operating Temperature: -40 to +85°C. | Power Supply: 18-36 VDC. | Power Consumption: 4.5W.. Factory-sealed, tested on live rack with 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Input Type | Two-channel, accepts signals from proximity probes or magnetic pickups. |
|---|---|
| Input Range | +10.0 V to -24.0 V. |
| Operating Temperature | -40 to +85°C. |
| Power Supply | 18-36 VDC. |
| Power Consumption | 4.5W. |
| Communication Protocol | Modbus TCP/IP. |
| Analog Inputs | 8 channels. |
| Digital Inputs | 8 channels. |
| Digital Outputs | 8 channels. |
| Dimensions | 2.5 cm x 10 cm x 24 cm |
| Weight | 0.4 kg |
| Manufacturer | Bently Nevada |
| Model / SKU | 133442-01 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 Module Function
The Bently Nevada 133442-01 is an I/O module within the 3500 Series rack, providing the interface between monitor modules and field devices, relays, or communication networks. I/O modules handle signal routing, channel isolation, and protocol conversion.
Installation Requirements
- Install only in the rack slot designated by your configuration drawing — inserting into the wrong slot generates a configuration mismatch alarm.
- Power down the rack before insertion — 3500 modules are not hot-swappable.
- ESD wrist strap mandatory. Low humidity (<30% RH) significantly increases ESD risk.
🔧 Specifications
Specifications
| Parameter | Value |
|---|---|
| Input Type | Two-channel, accepts signals from proximity probes or magnetic pickups. |
| Input Range | +10.0 V to -24.0 V. |
| Operating Temperature | -40 to +85°C. |
| Power Supply | 18-36 VDC. |
| Power Consumption | 4.5W. |
| Communication Protocol | Modbus TCP/IP. |
| Analog Inputs | 8 channels. |
| Digital Inputs | 8 channels. |
📦 Shipping & Warranty
24-hour handling. Anti-static packaging. 12-month warranty.
❓ FAQ
Q: Genuine Bently Nevada?
A: Yes, 100% genuine with serial number and traceability.
Q: Installation support?
A: Free guidance from engineers with 8+ years experience on Bently Nevada systems.
💰 Spare Strategy
For critical un-spared machinery, keep one cold spare. The module cost is a fraction of a single day of lost monitoring.
