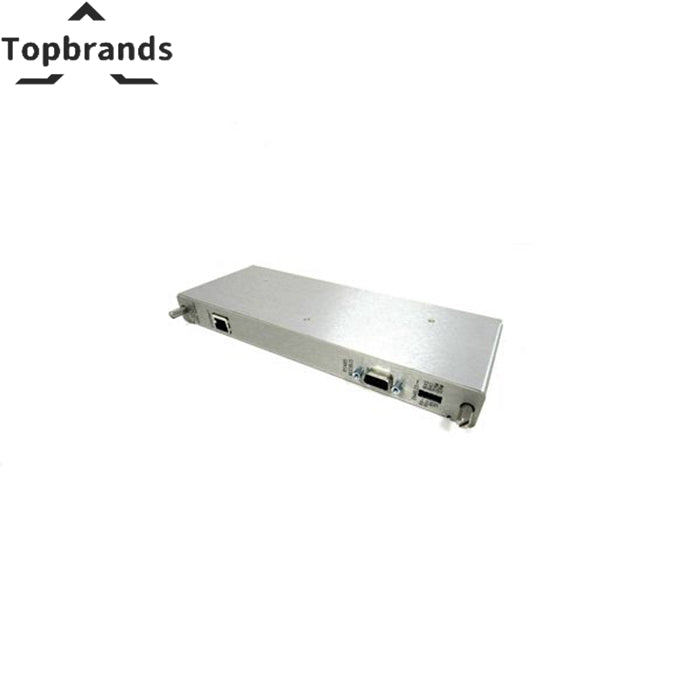

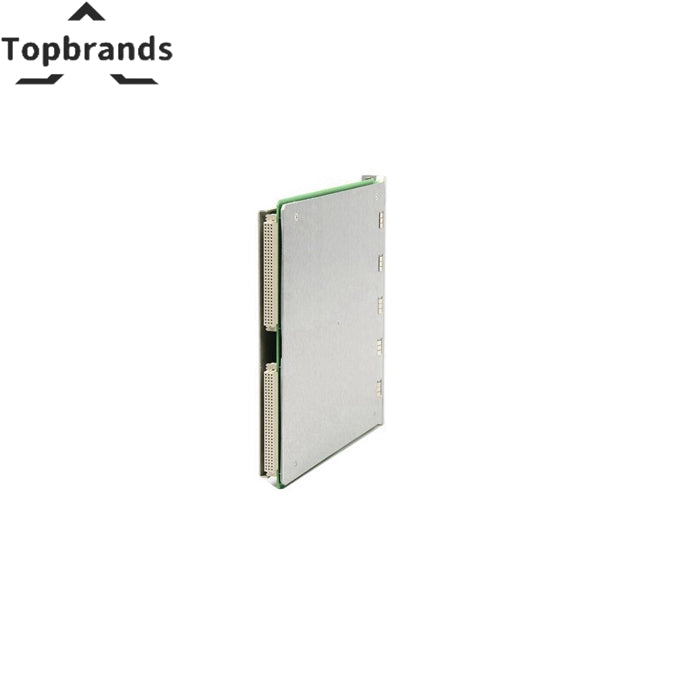

Bently Nevada 3500/62 136294-01 Isolated I/O Module with Internal Terminations
The Bently Nevada 136294-01 is a i/o module for Bently Nevada industrial automation platforms. Output Range: 4 to 20 mA | Accuracy: ±0.25% of full scale | Repeatability: ±0.1% of full scale. Factory-sealed, fully tested, 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| 136294-01 | module is an isolated +4 to +20 mA I/O module with internal terminations, designed for processing critical machine parameters such as pressures, flows, temperatures, and levels. It provides isolation to safeguard against electrical interference and ensures accurate and reliable measurements. |
|---|---|
| Input Range | 4 to 20 mA |
| Output Range | 4 to 20 mA |
| Accuracy | ±0.25% of full scale |
| Repeatability | ±0.1% of full scale |
| Noise Immunity | 500 mV peak |
| Transient Immunity | 10 kV |
| Isolation Voltage | 500 volts |
| Power Consumption | 7.0 watts (typical) |
| Dimensions | 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in) |
| Weight | 2 kg |
| Isolated Channels | Ensures reliable operation in industrial environments. |
| High Accuracy | Provides precise measurements with high accuracy and repeatability. |
| Robust Construction | Built to withstand harsh industrial conditions. |
| Versatility | Suitable for various industrial applications due to its wide input and output range. |
| Manufacturer | Bently Nevada |
| Model / SKU | 136294-01 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Buying a Bently Nevada 136294-01: What to Look For
Ordering industrial spare parts is not like online shopping. When you need a i/o module for your Bently Nevada system, getting the wrong variant can mean days of additional downtime. Here is how to get it right the first time.
Match the exact part number. Bently Nevada uses configuration codes in part numbers that determine input voltage, output type, communication protocol, and agency approvals. Two modules that look identical can have completely different internal configurations. Always match the full part number — not just the base model. Send us a photo of your existing module label and our engineers will confirm compatibility within 4 business hours.
Know what you are buying. input range: 4 to 20 mA; output range: 4 to 20 mA; accuracy: ±0.25% of full scale; repeatability: ±0.1% of full scale. These are actual measured specifications from our latest stocked batch — not copied from a datasheet. Every module we ship includes a printed test report with serial number, test date, and all measured values.
Plan ahead. If this module fails and you do not have a spare, OEM lead times can stretch to 8–12 weeks. We ship within 24 hours from stock. For critical offshore applications, keep at least one tested spare on your shelf.
Compatible Parts — Same System
These modules share the same system family as the 136294-01. Commonly ordered together for complete rack builds or spare parts kits.
