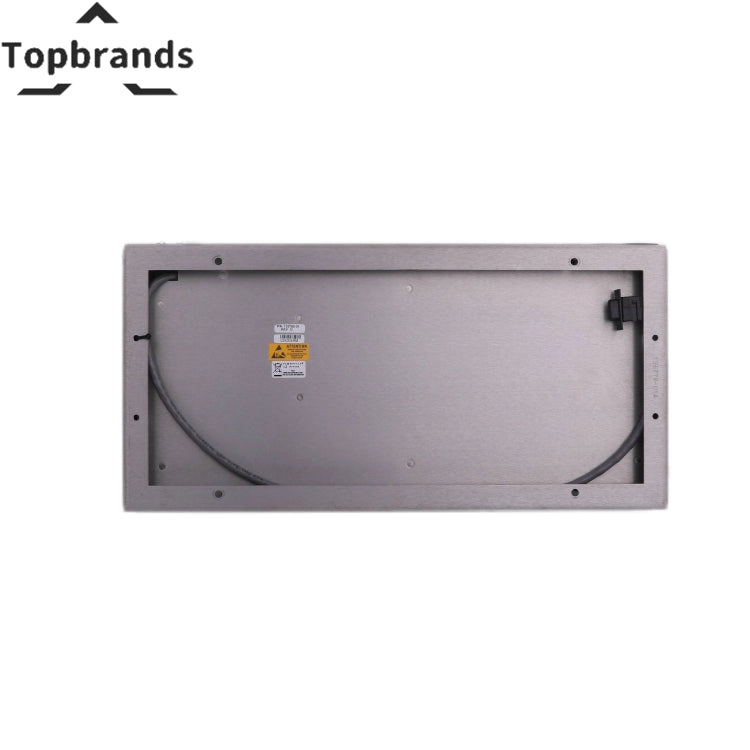

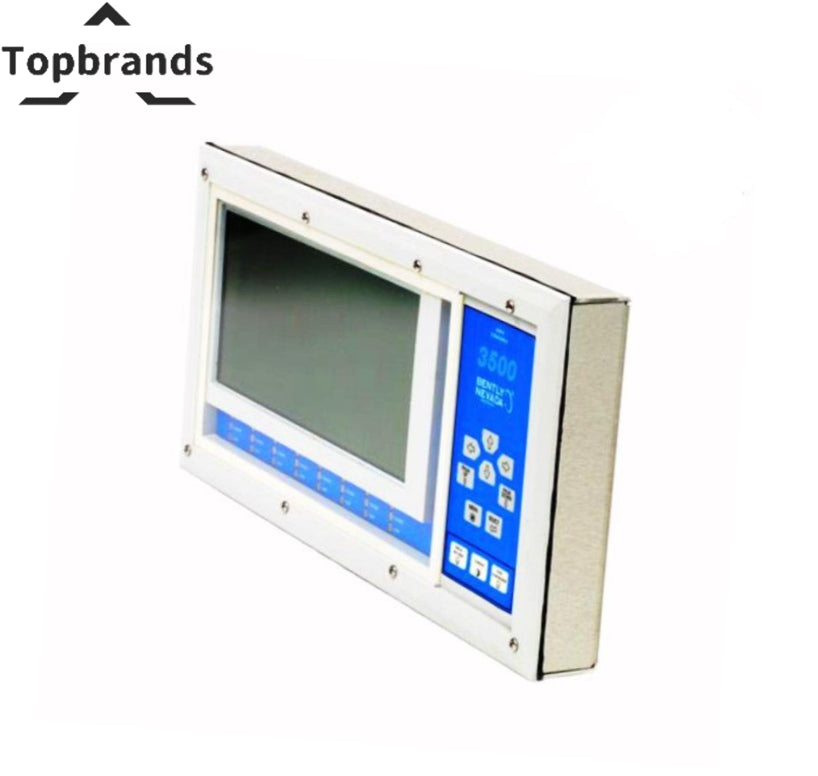

Bently Nevada 3500/93 135785-01 Panel Mount Display Unit
The Bently Nevada 135785-01 is a display unit for Bently Nevada industrial automation platforms. Condition: New & Original in Factory Packing | Factory Warranty: 12 Months | Dimensions: 41.5x20.5x5cm. Factory-sealed, fully tested, 12-month warranty. Ships within 24 hours from Shenzhen.
Technical Specifications
| Product Type | 3500/93 System Display |
|---|---|
| Manufacturer | Bently Nevada |
| Condition | New & Original in Factory Packing |
| Factory Warranty | 12 Months |
| Dimensions | 41.5x20.5x5cm |
| Weight | 2.15kg |
| Power Consumption | 15.5 watts maximum (Display Unit & Display Interface Module) |
| Inputs | Collects data such as current values and current alarm status via a high-speed internal network |
| Outputs | Visual indication of system event lists, alarm event lists, and all channel, monitor, relay module, Keyphasor, or tachometer module data |
| Mounting Options | Face Mounting, 19-inch EIA Rack Mounting, Panel Mounting, Independent Mounting |
| Configuration Software | 3500 Rack Configuration Software |
| Display Interface Module (DIM) | Required for operation, must be installed in slot 15 of the rack |
| External Power Supply | Required for applications needing a cable longer than 100 feet or using the backlighted display unit |
| Model / SKU | 135785-01 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 System Role
The Bently Nevada 135785-01 provides communication, display, or control functions within the automation platform. It enables operator interaction, system configuration, and data exchange between modules and higher-level systems.
Integration
Configure IP addressing, communication protocols, and display parameters per system documentation. Static IP recommended for production environments.
🔧 Specifications
| Parameter | Value |
|---|---|
| Product Type | 3500/93 System Display |
| Manufacturer | Bently Nevada |
| Condition | New & Original in Factory Packing |
| Factory Warranty | 12 Months |
| Dimensions | 41.5x20.5x5cm |
| Weight | 2.15kg |
| Power Consumption | 15.5 watts maximum (Display Unit & Display Interface Module) |
| Inputs | Collects data such as current values and current alarm status via a high-speed internal network |
📦 Shipping
24h handling. Anti-static packaging. 12-month warranty.
❓ FAQ
Q: Firmware compatibility?
A: Verify firmware version matches system requirements before ordering.
Q: Replacement requires reconfiguration?
A: Yes — document current settings before removing old module.
💰 Spare Strategy
Keep one cold spare for critical HMIs and communication gateways. Failure means loss of operator visibility.
