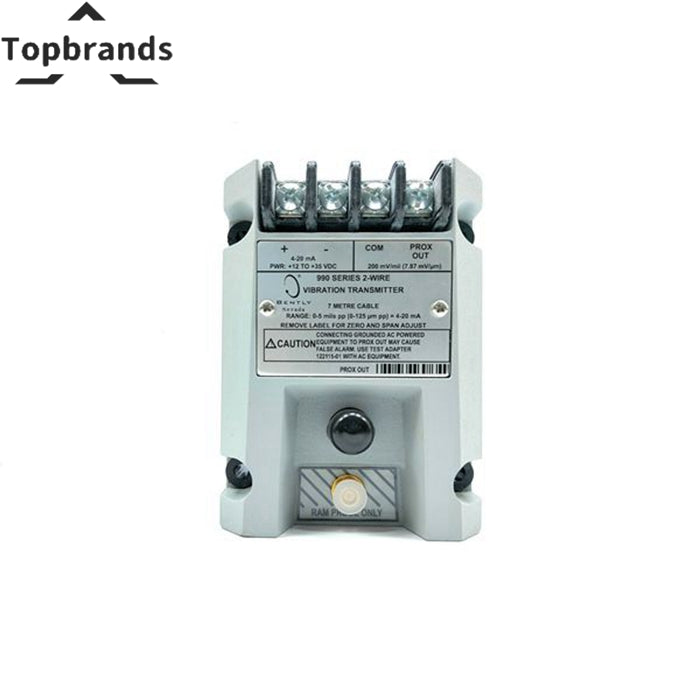

Bently Nevada | 990-05-70-01-00 990 Vibration Transmitter Brand New
The Bently Nevada 990-05-70-01-00 is a vibration transmitter for Bently Nevada industrial automation platforms. Model Number: 990-05-70-01-00 | Full-scale Option: 0-5 mils peak-to-peak (0-125 μm peak-to-peak) | System Length Option: 7.0 meters (23.0 feet). Factory-sealed, fully tested, 12-month warranty. Ships within 24 hours.
Technical Specifications
| Product Type | Vibration Transmitter |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 990-05-70-01-00 |
| Full-scale Option | 0-5 mils peak-to-peak (0-125 μm peak-to-peak) |
| System Length Option | 7.0 meters (23.0 feet) |
| Mounting Option | 35 mm DIN rail clips |
| Agency Approval Option | Not required |
| Integrated Proximitor Sensor | Requires no external unit. |
| Non-isolated “PROX OUT” and “COM” Terminals | Includes a coaxial connector for dynamic vibration and gap voltage signal output for diagnostics. |
| Non-interacting Zero and Span Potentiometers | Allows for loop adjustment. |
| Test Input Pin | Enables quick verification of loop signal output using a function generator. |
| Power-up Inhibit Circuit | Prevents signal errors due to line voltage transients. |
| Not OK/Signal Defeat Circuit | Avoids high outputs or false alarms from faulty proximity probes or loose connections. |
| Potted Construction | Designed for high humidity environments (up to 100% condensing). |
| Compatibility | Works with 3300 NSv proximity probe, allowing installation in confined spaces with minimal clearance. |
| Model / SKU | 990-05-70-01-00 |
✓ Ships within 24 hours | ✓ 12-Month Warranty | ✓ Worldwide Delivery
Detailed Product Information
🎯 Sensing Principle
The Bently Nevada 990-05-70-01-00 measures machinery parameters using precision sensing technology. Non-contact measurement eliminates mechanical wear, providing consistent data over years of continuous operation.
Applications
- Vibration Monitoring: Bearing housing and shaft vibration per ISO 10816.
- Position Measurement: Axial thrust, differential expansion, rod drop.
- Speed Reference: Keyphasor pulse for synchronous sampling.
🔧 Specs & Installation
| Parameter | Value |
|---|---|
| Product Type | Vibration Transmitter |
| Manufacturer | Bently Nevada |
| Model Number | 990-05-70-01-00 |
| Full-scale Option | 0-5 mils peak-to-peak (0-125 μm peak-to-peak) |
| System Length Option | 7.0 meters (23.0 feet) |
| Mounting Option | 35 mm DIN rail clips |
| Agency Approval Option | Not required |
| Integrated Proximitor Sensor | Requires no external unit. |
Installation
- Mount rigidly — bracket resonance corrupts readings.
- Use manufacturer-specified cables only.
- Verify gap voltage/gain settings before commissioning.
- Secure connectors against vibration loosening.
📦 Shipping
24h handling. Ships with calibration data. 12-month warranty covering sensing element failure, calibration drift, connector damage.
❓ FAQ
Q: Calibration interval?
A: Annual verification recommended. Typical drift <0.5%/year.
Q: Cable length critical?
A: Yes — cable is part of calibrated system. Match original exactly.
💰 Spare Strategy
Sensors are wear items. Cable fatigue is #1 failure mode after 5-8 years. Keep one spare per measurement location on critical machines.
