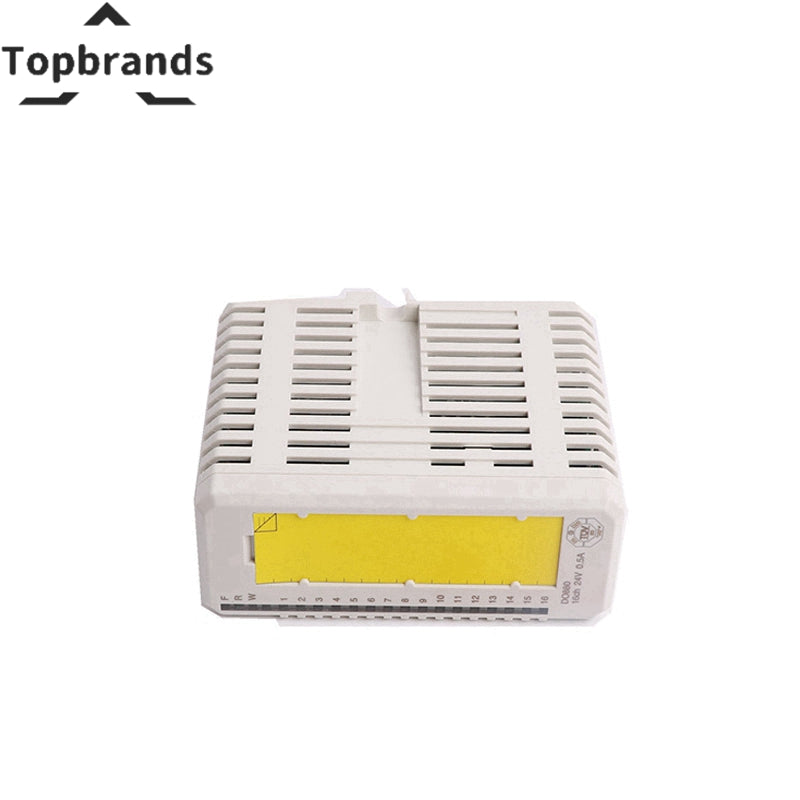

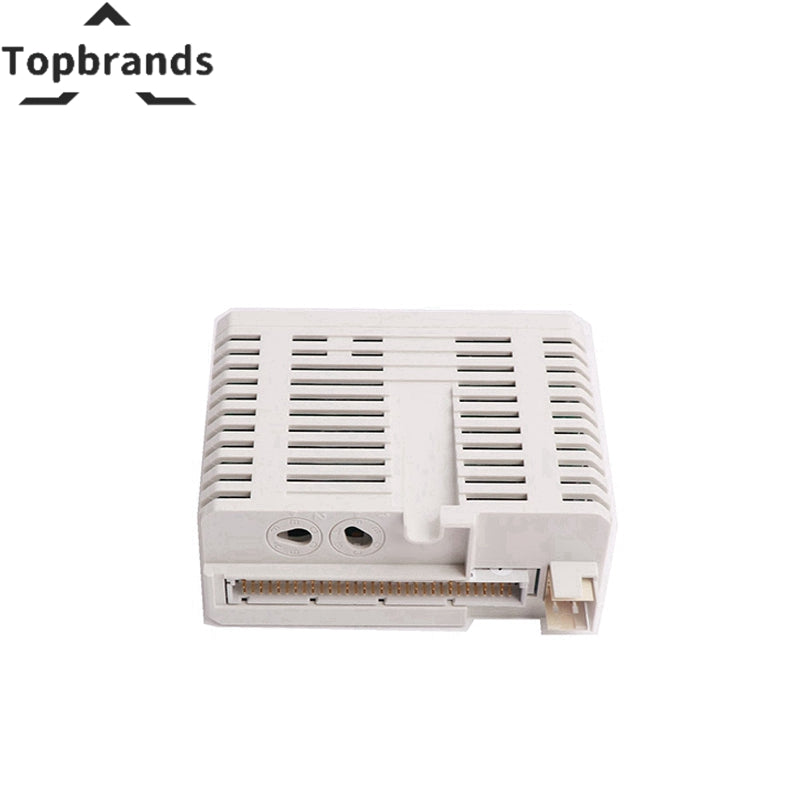

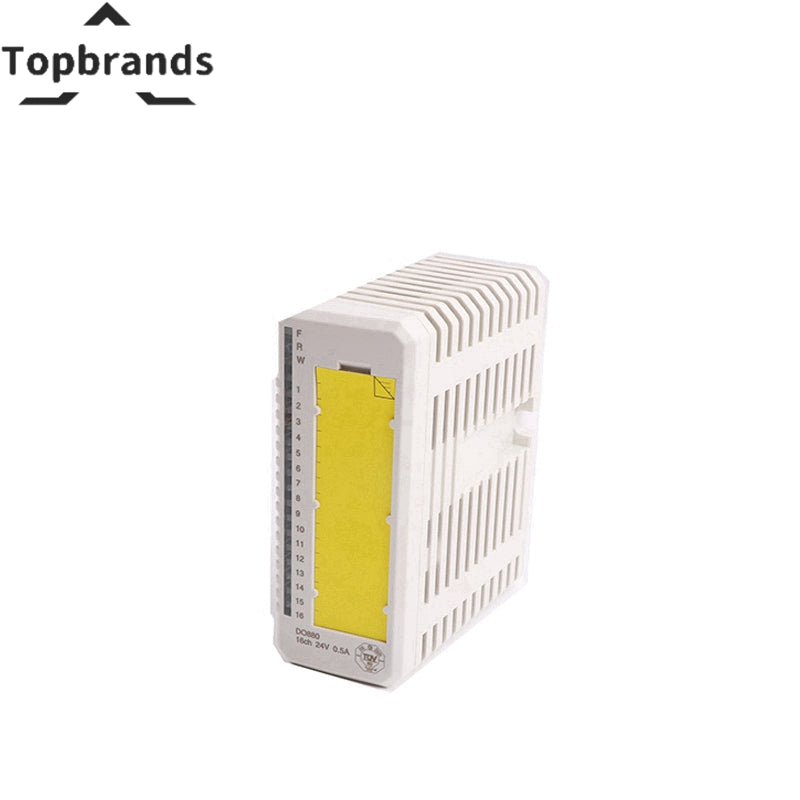

DO880 3BSE028602R1 | ABB | Digital Output Module | Brand New
The ABB 3BSE028602R1 is a digital output module for ABB platforms. Number of Channels: 16 | Signal Type: Current sourcing, current limiting | HART: No. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Type | Digital Output |
|---|---|
| Signal Specification | 24 V d.c. (19.2 - 32 V d.c.), 0.5 A |
| Number of Channels | 16 |
| Signal Type | Current sourcing, current limiting |
| HART | No |
| SOE | No |
| Redundancy | Yes |
| High Integrity | Yes |
| Intrinsic Safety | No |
| Isolation | Groupwise isolated from ground |
| Current Limiting | Short circuit-proof current limited output |
| Maximum Field Cable Length | 600 meters (656 yards) |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V a.c. |
| Power Dissipation | 5.6 W (0.5 A x 16 channels) |
| +5 V Modulebus | 45 mA |
| +24 V Modulebus | Max. 50 mA |
| +24 V External | 10 mA |
| CE Mark | Yes |
| Electrical Safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine Certification | ABS, BV, DNV, LR |
| Temperature, Operating | 0 to +55 °C (+32 to +131 °F); Approvals are issued for +5 to +55 °C |
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
| Pollution Degree | Degree 2, IEC 60664-1 |
| Corrosion Protection | ISA-S71.04: G3 |
| Relative Humidity | 5 to 95 %, non-condensing |
| Max Ambient Temperature | 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| Manufacturer | ABB |
| Model / SKU | 3BSE028602R1 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Safety Component: ABB 3BSE028602R1
Counterfeit modules in safety loops are dangerous. The DO880 3BSE028602R1 | ABB | Digital Output Module | Brand New is a digital output module where failure is not an option. 100% genuine ABB with documentation.
Specifications: Type: Digital Output
Signal Specification: 24 V d.c. (19.2 - 32 V d.c.), 0.5 A
Number of Channels: 16
Signal Type: Current sourcing, current limiting
HART: No
IEC 61511 compliance requires maintained as-designed state. We stock ABB safety components. 12-month warranty.
