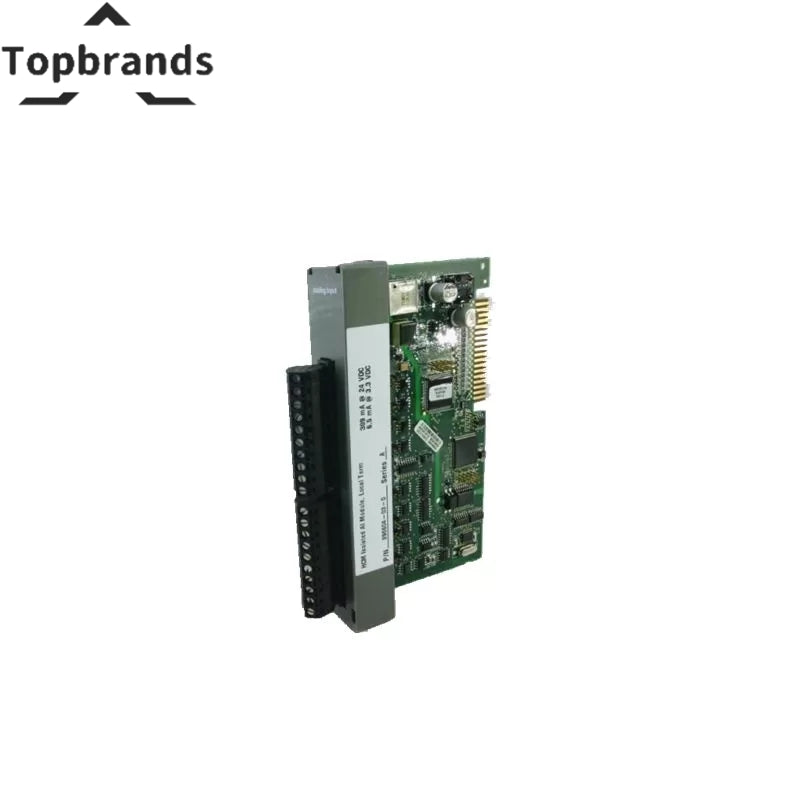

Emerson 396563-08-0 ControlWave Micro Analog Input/Output Module
The Delta V 396563-08-0 is a analog input/output module for Delta V platforms. Surge Protection: Surge suppression between each signal and ground is achieved using 30 Vdc transorbs. | Terminations: Available with options for local or remote terminations, offering flexibility in installation. | Input Channels: 6 analog inputs. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| Analog Inputs | Six externally sourced, single-ended inputs, each individually jumper configurable for either 4 to 20 mA or 1 to 5 Vdc operation. |
|---|---|
| Analog Outputs | Two externally sourced outputs (11 to 30 Vdc), each individually jumper configurable for 4 to 20 mA or 1 to 5 Vdc. |
| Surge Protection | Surge suppression between each signal and ground is achieved using 30 Vdc transorbs. |
| Terminations | Available with options for local or remote terminations, offering flexibility in installation. |
| Input Channels | 6 analog inputs |
| Output Channels | 2 analog outputs |
| Voltage Range | 11 to 30 Vdc for analog outputs |
| Surge Suppression | 30 Vdc transorbs |
| Manufacturer | Delta V |
| Model / SKU | 396563-08-0 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Delta V 396563-08-0 Overview
analog input/output module for Delta V platforms.
Specifications:
Surge Protection: Surge suppression between each signal and ground is achieved using 30 Vdc transorbs.
Terminations: Available with options for local or remote terminations, offering flexibility in installation.
Input Channels: 6 analog inputs
Output Channels: 2 analog outputs
Voltage Range: 11 to 30 Vdc for analog outputs
Factory-sealed. Live-rack tested, 48h burn-in. Printed test report. Worldwide shipping within 24h. 12-month warranty.
Compatible Parts — Same System
These modules share the same system family as the 396563-08-0. Commonly ordered together for complete rack builds or spare parts kits.
