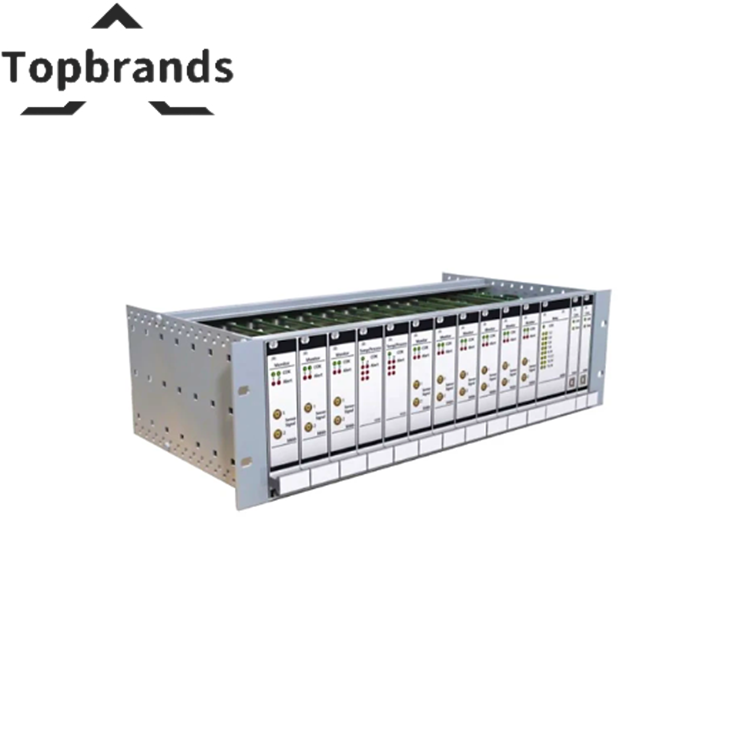

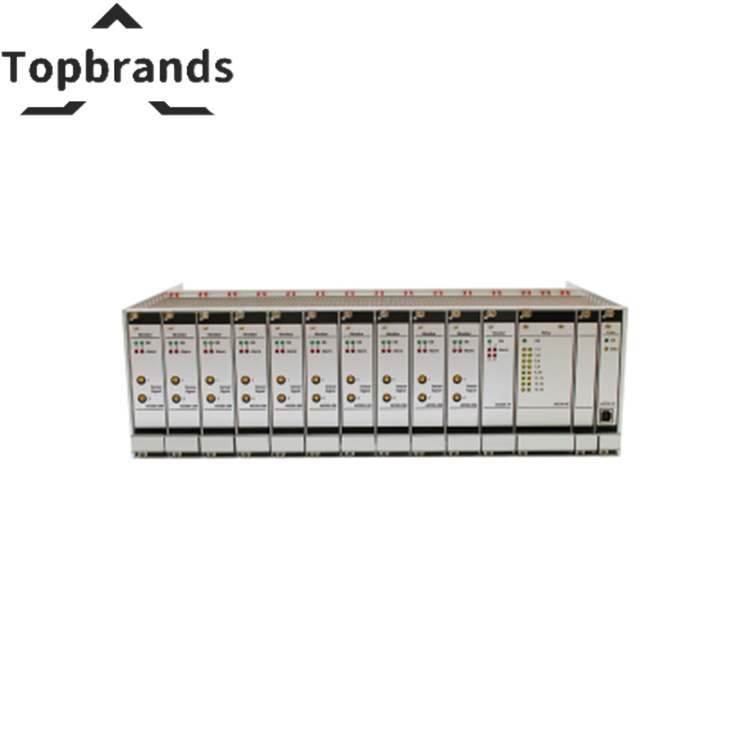

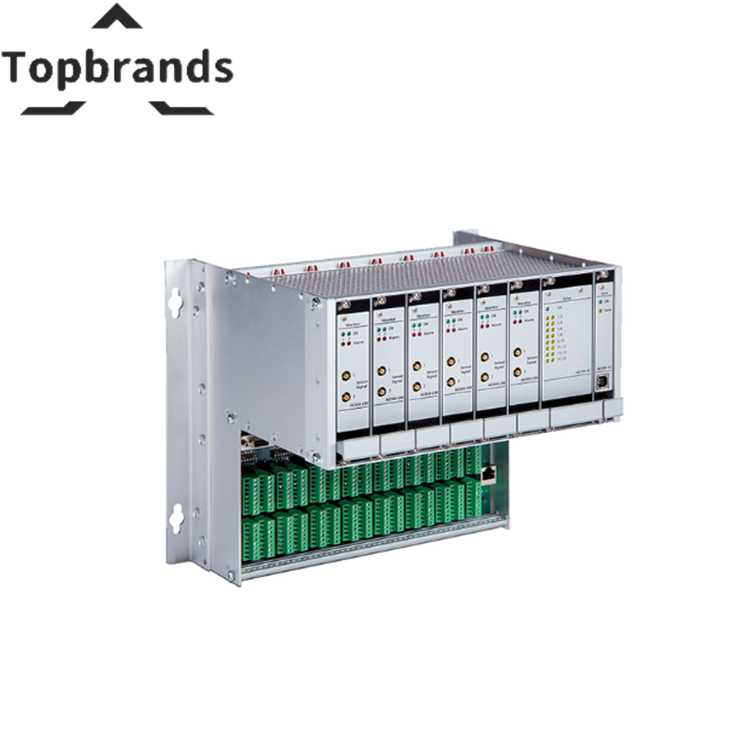

Emerson AMS 6500 ATG Online Protection System
The Emerson AMS6500ATG is a protection system for Emerson platforms. Tachometer Channels: Same as analog channels | Sampling Rate: 48 kHz | ADC Resolution: 24-bit/18.75 kHz. Factory-sealed, live-rack tested, 48-hour burn-in. 12-month warranty. Ships within 24 hours.
Technical Specifications
| AMS 6500 ATG Protection System | is a modernized protection and predictive system designed to seamlessly replace outdated protection systems. It allows users to economically initiate predictive monitoring of critical rotating machinery assets such as steam turbines, gas turbines, boiler feed pumps, offshore compressors, pipeline turbo compressors, chemical industry compressors, turbo expanders, blowers, and superchargers. |
|---|---|
| Analog Channels | Up to 44 (2 full ATG racks) |
| Tachometer Channels | Same as analog channels |
| Sampling Rate | 48 kHz |
| ADC Resolution | 24-bit/18.75 kHz |
| Resolution Lines (via Modbus) | 400 |
| Waveform Samples (via Modbus) | 1024 |
| Input Types | Refer to A6500-UM technical specifications |
| Channel Scanning | Simultaneously scans 2 to 44 channels |
| High-Frequency Detection | PeakVue™, PeakVue waveform (OPC-UA, Modbus TCP) |
| Communication with AMS Machinery Manager | Ethernet (data transfer service to the database) |
| Embedded Predictive Diagnostics | Includes PeakVue™ technology, order analysis, frequency band analysis, and frequency band energy. |
| Integration with AMS Machinery Manager | Communicates and works with the AMS Machinery Manager (asset performance management software platform) to utilize advanced analysis tools. |
| Interoperability | Interfaces with other applications via OPC UA, Modbus TCP/IP, or Modbus RTU. |
| Machine Studio Configuration Software | Features a more intuitive and familiar user interface. |
| ATG View Mobile Application | Provides information on asset health to any user within the plant network. |
| Warranty | 42-month warranty. |
| Atmospheric Contaminant Resistance | Rated G3 per ISA-S71.04. |
| SNTP Time Synchronization | Ensures accurate timing across the system. |
| Manufacturer | Emerson |
| Model / SKU | AMS6500ATG |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Emerson AMS6500ATG Overview
protection system for Emerson platforms.
Specifications:
Analog Channels: Up to 44 (2 full ATG racks)
Tachometer Channels: Same as analog channels
Sampling Rate: 48 kHz
ADC Resolution: 24-bit/18.75 kHz
Resolution Lines (via Modbus): 400
Factory-sealed. Live-rack tested, 48h burn-in. Worldwide shipping 24h. 12-month warranty.
Compatible Parts — Same System
These modules share the same system family as the AMS6500ATG. Commonly ordered together for complete rack builds or spare parts kits.
