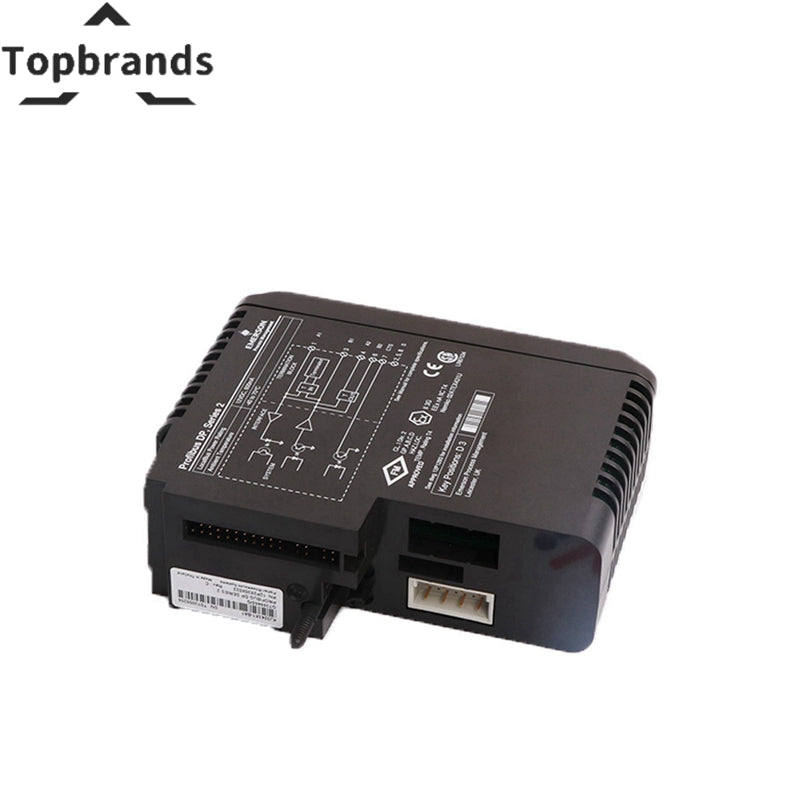

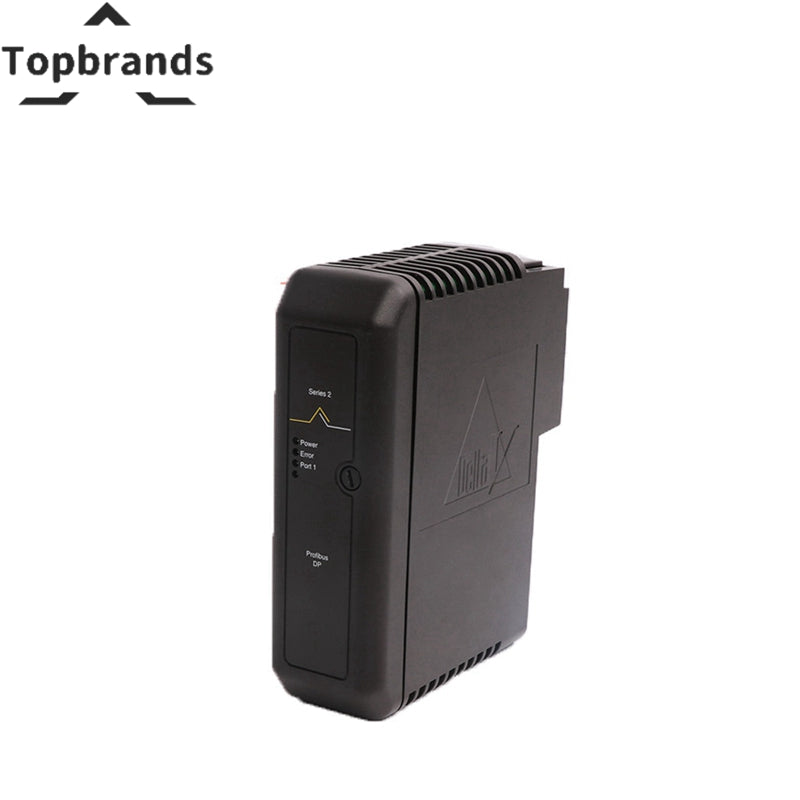

EMERSON Delta V KJ3242X1-BA1 Fieldbus Communication Module 12P2471X042
The Delta V 12P2471X042-KJ3242X1-BA1 — a fieldbus communication module you will wish you had on the shelf when the old one fails. Local Bus Power: 12 VDC at 150 mA | Fieldbus Power: 12 mA at the port | Power range: 9-32 VDC. Physical stock, not virtual inventory. Ships within 24 hours.
Technical Specifications
| Function | Enables communication between the DeltaV system and field devices using the Fieldbus H1 protocol. |
|---|---|
| Series | Series 2 - This likely indicates the generation or revision of the card within the DeltaV system. |
| Local Bus Power | 12 VDC at 150 mA |
| Fieldbus Power | 12 mA at the port |
| Power range | 9-32 VDC |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5 to 95% Non-Condensing |
| Manufacturer | Delta V |
| Model / SKU | 12P2471X042-KJ3242X1-BA1 |
Ships within 24 hours | 12-Month Warranty | Worldwide Delivery
Why the Delta V 12P2471X042-KJ3242X1-BA1 Matters for Your Operation
In mining, every component in your control system has a specific job — and when one fails, the ripple effects can shut down an entire production line. The Delta V 12P2471X042-KJ3242X1-BA1 is a fieldbus communication module that keeps your conveyor control and grinding mill drives running without interruption.
Here is what this module actually does. local bus power: 12 VDC at 150 mA; fieldbus power: 12 mA at the port; power range: 9-32 VDC; operating temperature: -40°C to +70°C. These are not generic specifications — they determine whether this module will work in your specific Delta V system. We have seen too many cases where a maintenance team ordered a replacement only to find it was the wrong revision or configuration. That is why we test every 12P2471X042-KJ3242X1-BA1 on a live Delta V rack before shipping — full signal injection across every channel, not just a visual check.
Installation matters too. The most common cause of DOA reports is not a defective module — it is bent backplane pins from forcing a module in at the wrong angle. Take your time lining up the guides. Apply even pressure. If it does not slide in smoothly, stop and check the alignment. Always wear a grounded wrist strap — static discharge from removing a fleece jacket in a dry mine site can exceed 15,000 volts, destroying sensitive input protection diodes instantly.
Think about your sparing strategy. A single Delta V 12P2471X042-KJ3242X1-BA1 costs a fraction of what one hour of unplanned downtime costs in mining. We ship replacements within 24 hours from Shenzhen — but even 24 hours is too long if you are losing production. For critical applications, keep one cold spare on your shelf.
Compatible Parts — Same System
These modules share the same system family as the 12P2471X042-KJ3242X1-BA1. Commonly ordered together for complete rack builds or spare parts kits.
